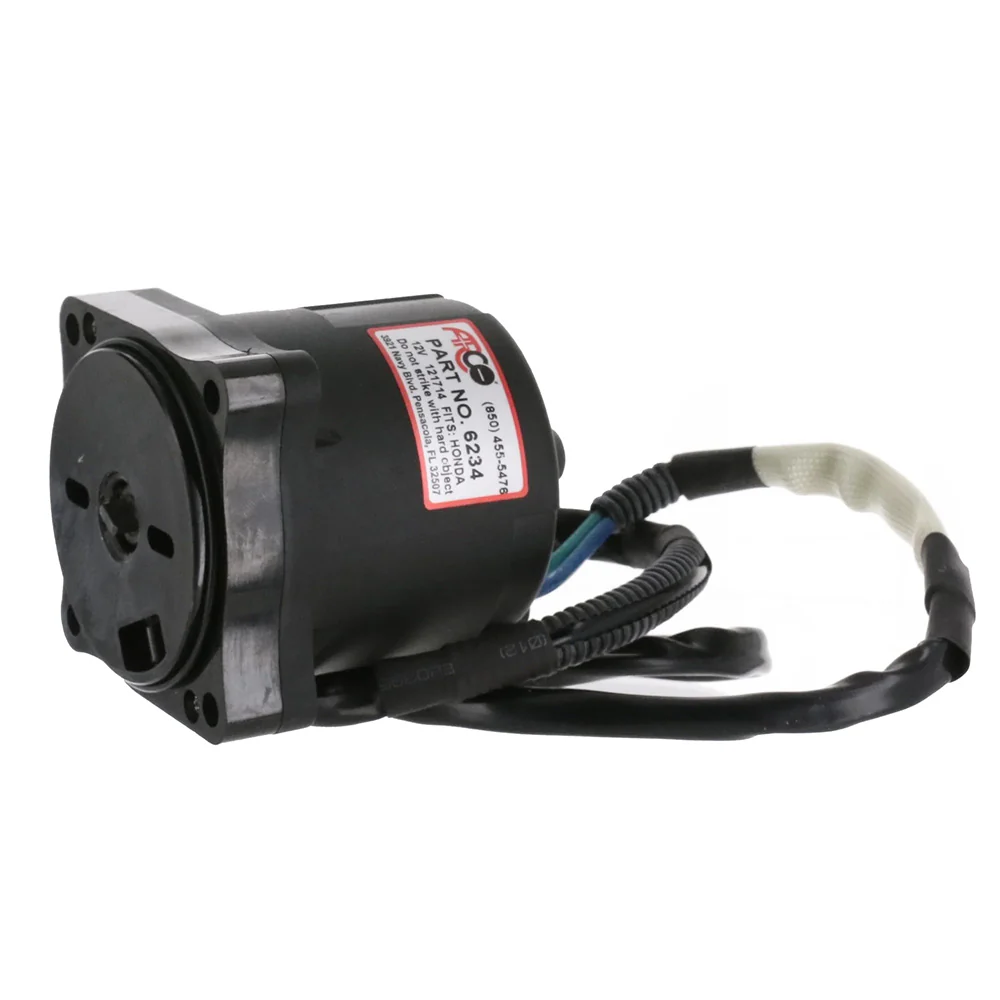

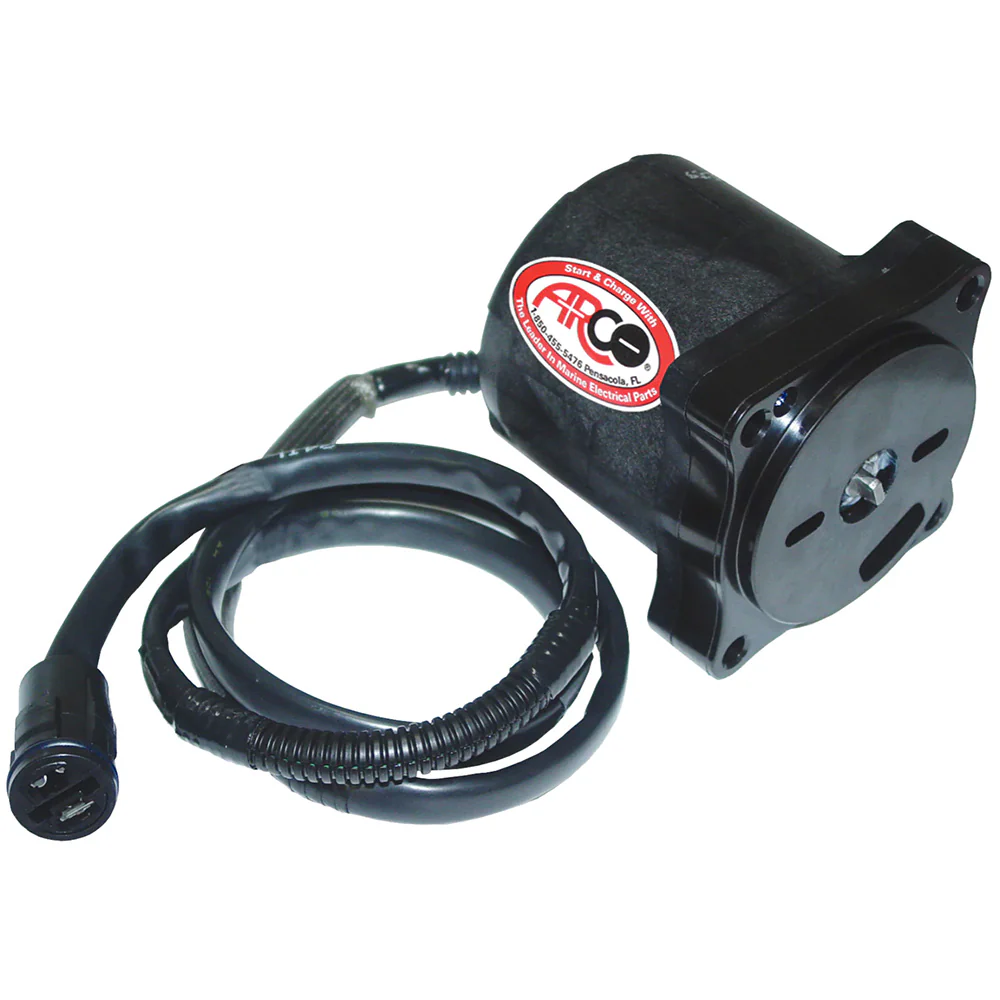

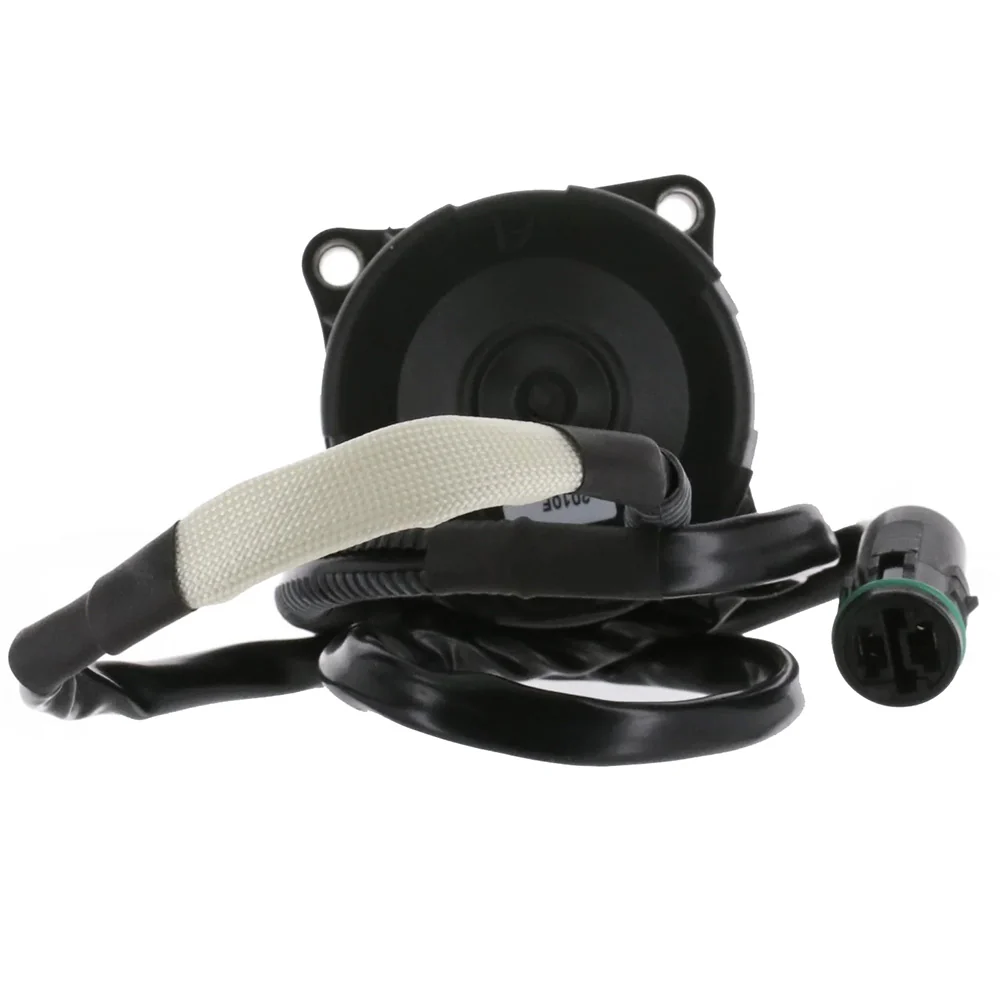

ARCO Marine Replacement Outboard Tilt Trim Motor - Honda/Suzuki - 4 Bolt Mount [6234]

ARCO Marine Replacement Outboard Tilt Trim Motor - Honda/Suzuki - 4 Bolt Mount [6234]

Quality Assurance:

• Epoxy Powder coated for maximum corrosion protection
• Motor shafts induction case hardened at bearing surfaces for superior wear resistance

Precision Testing:

• All armatures tested to withstand 50 times operation voltage (12V)
• All motors performance tested at 5 different load levels
• All motors must meet or exceed OEM performance before being boxed

Product Specifications

ARCO Marine Replacement Outboard Tilt Trim Motor - Honda/Suzuki - 4 Bolt Mount [6234] Product Specifications

Technical Specifications:

• Voltage – 12V

• Motor Type – Replacement Outboard Tilt Trim Motor

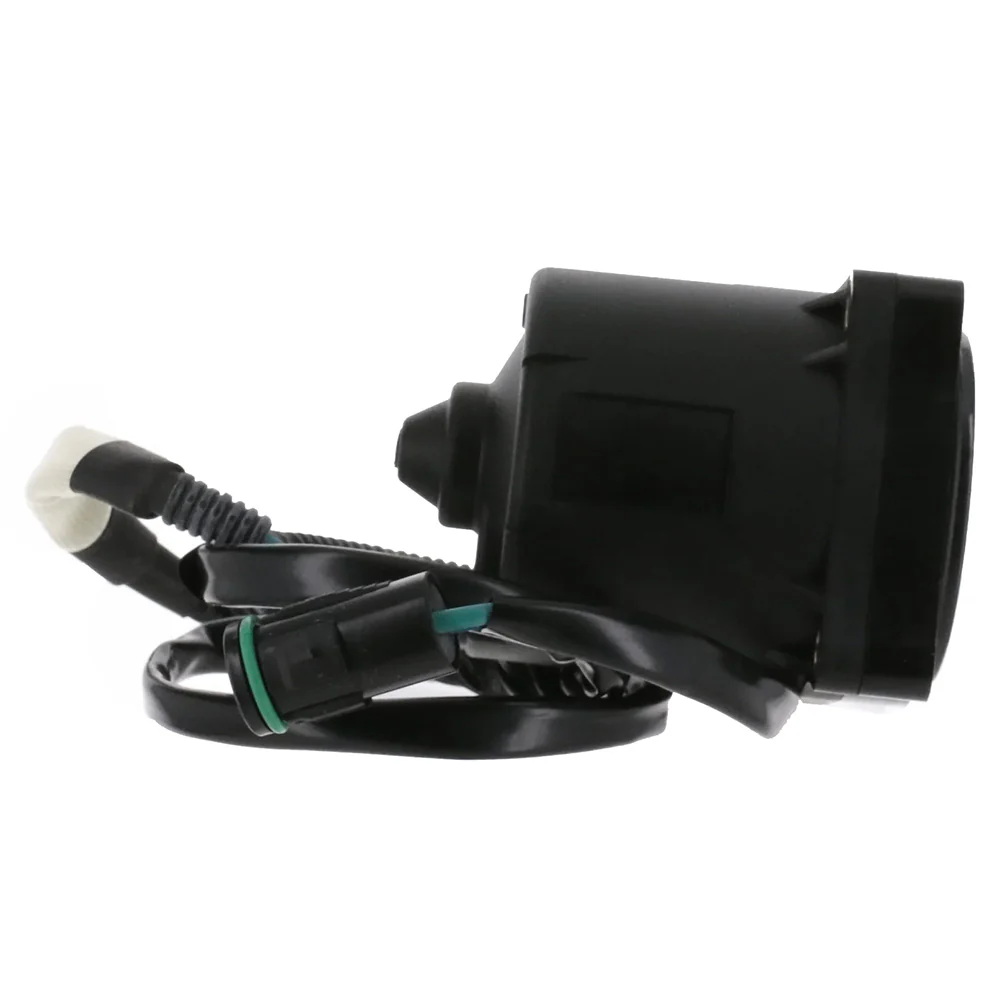

• Wiring – 3-Wire Connection

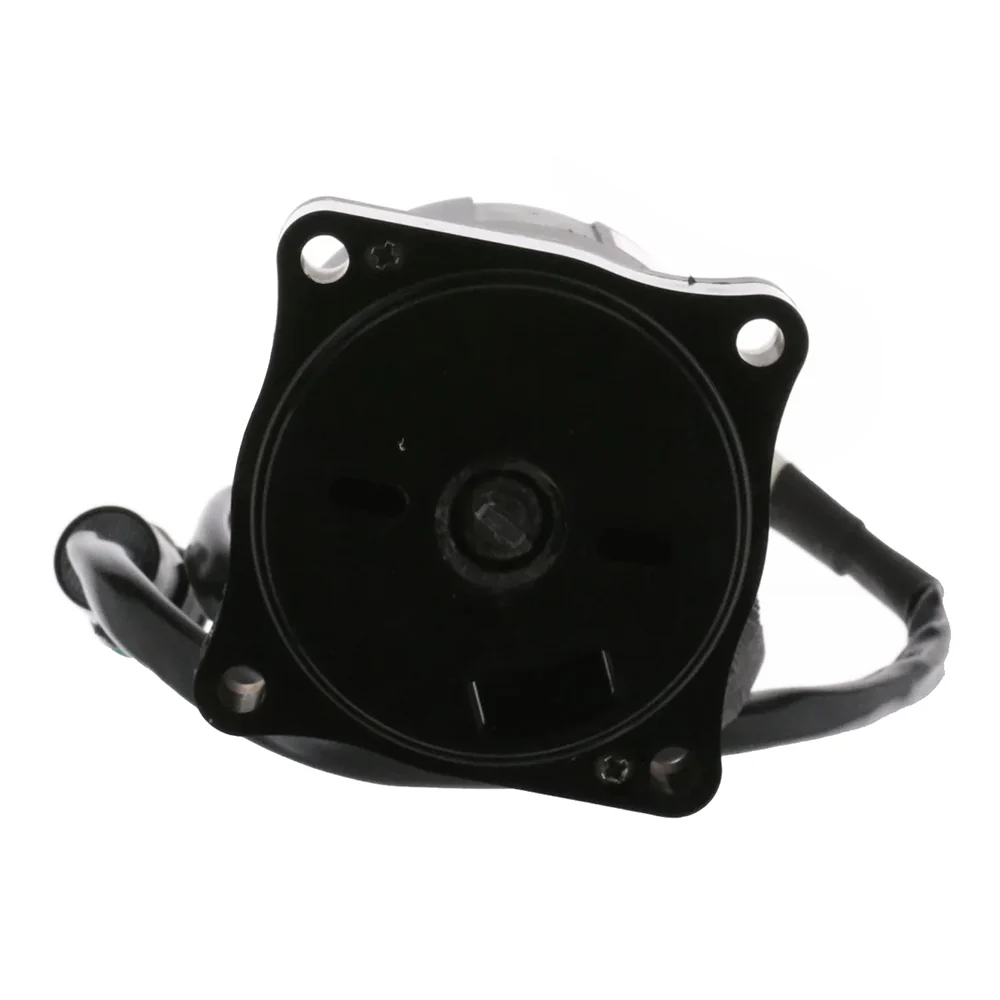

• Mounting Style – 4-Bolt Mount

• Compatibility –
    • Honda Outboards (select models)
    • Suzuki Outboards (select models)

• Pump Compatibility – Designed for use with original hydraulic trim/tilt systems

• Finish – Black corrosion-resistant coating

• Housing Material – Marine-grade sealed aluminum

• Weight – Approx. 5.1 lbs / 2.31 kg

• Water Resistance – Fully sealed for harsh marine environments

• Warranty – Limited manufacturer warranty

Mounting Application:

• Direct OEM-style replacement for Honda and Suzuki outboards with 4-bolt tilt trim motor mounting. Designed for easy installation, consistent performance, and long-term durability in marine conditions.

Product Manual

Quick Guide (pdf)

Product Warranty

ARCO Marine Warranty

Warranty Information:

When properly installed, all ARCO products are warrantied against defects in materials and workmanship for a period of 12 months for leisure use and 90 days for commercial or racing applications.

Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration

Fits:

• HONDA 2002-Up BF175, BF200, BF225, 4-bolt mount, Round Plug-In Connector. Includes O-ring.
• SUZUKI 2002 and up 175, 200 & 225hp 4 Stroke

Replaces Part Numbers:

• HONDA Tilt Trim Motor 36120-ZY3-013
• SUZUKI Tilt Trim Motor DF140TLK2
• SUZUKI Tilt Trim Motor DF140TXK2
• SUZUKI Tilt Trim Motor DF140TXZK2
• SUZUKI Tilt Trim Motor DT150TCXK2
• SUZUKI Tilt Trim Motor DT225TCXGK2
• SUZUKI Tilt Trim Motor DT225TCXK2
• SIERRA Tilt Trim Motor 18-6742

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
