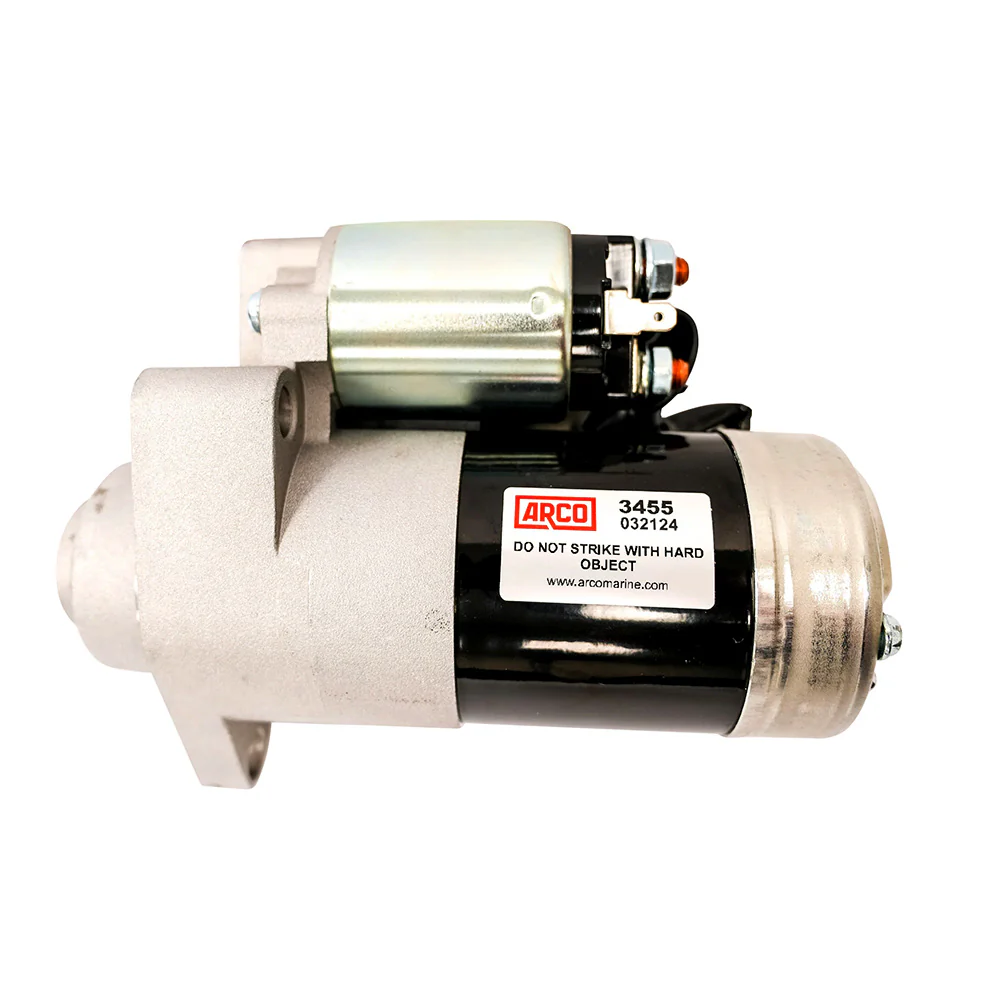

ARCO Marine Replacement Outboard Starter f/Mercury Honda Engines 2002-2019 - 175-250 HP [3455]

ARCO Marine Replacement Outboard Starter f/Mercury  Honda Engines 2002-2019 - 175-250 HP [3455]

Replacement outboard starter that will fit Mercury and Honda Engines 2002-2019, a 12-volt starter for 175 HP through 250 HP outboards.

ARCO advises using a fully charged battery - A weak battery can damage the starter and starter solenoid. And to also clean all connections - A corroded connection creates resistance, lowering the amperage required for an efficient starting circuit.

Features:

• Dynamically tested and packaged for out-of-the-box performance
• Nickel-coated and/or epoxy-painted to reduce corrosion
• Sealed to minimize water intrusion
• Designed for long life and optimum performance
• Armatures are tested to withstand 50 times operating voltages (12 volts)

Product Specifications

ARCO Marine Replacement Outboard Starter f/Mercury  Honda Engines 2002-2019 - 175-250 HP [3455] Product Specifications

Product Specifications:

• Application: 12 V starter for Mercury & Honda outboards (175–250 HP), model years 2002–2019

• ARCO Part Number: 3455

• Replaces OEM Parts:

  • Honda 31200‑ZY3‑003

  • Mercury 8M6007339

  • Mitsubishi M1T68581

  • ProTorque PH130‑0070

• Voltage: 12 V DC

• Construction & Features:

  • Dynamically tested for out-of-box performance

  • Nickel-coated or epoxy-painted housing for corrosion resistance

  • Water-sealed design to minimize intrusion

  • Armature tested to withstand up to 50× operating voltage

• Box Dimensions: 5″ H × 7″ W × 11″ L

• Package Weight: Approx. 8 lb

• UPC: 693006010984

Product Manual

Owner's Manual

Product Warranty

ARCO Marine Warranty

Warranty Information:

When properly installed, all ARCO products are warrantied against defects in materials and workmanship for 12 months for leisure use and 90 days for commercial or racing applications.

Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration

Replaces:

• HONDA Outboard Starter 31200-ZY3-003
• MERCURY Outboard Starter 8M6007339
• MITSUBISHI Outboard Starter M1T68581
• PROTORQUE Outboard Starter PH130-0070

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Product FAQs

N/A
