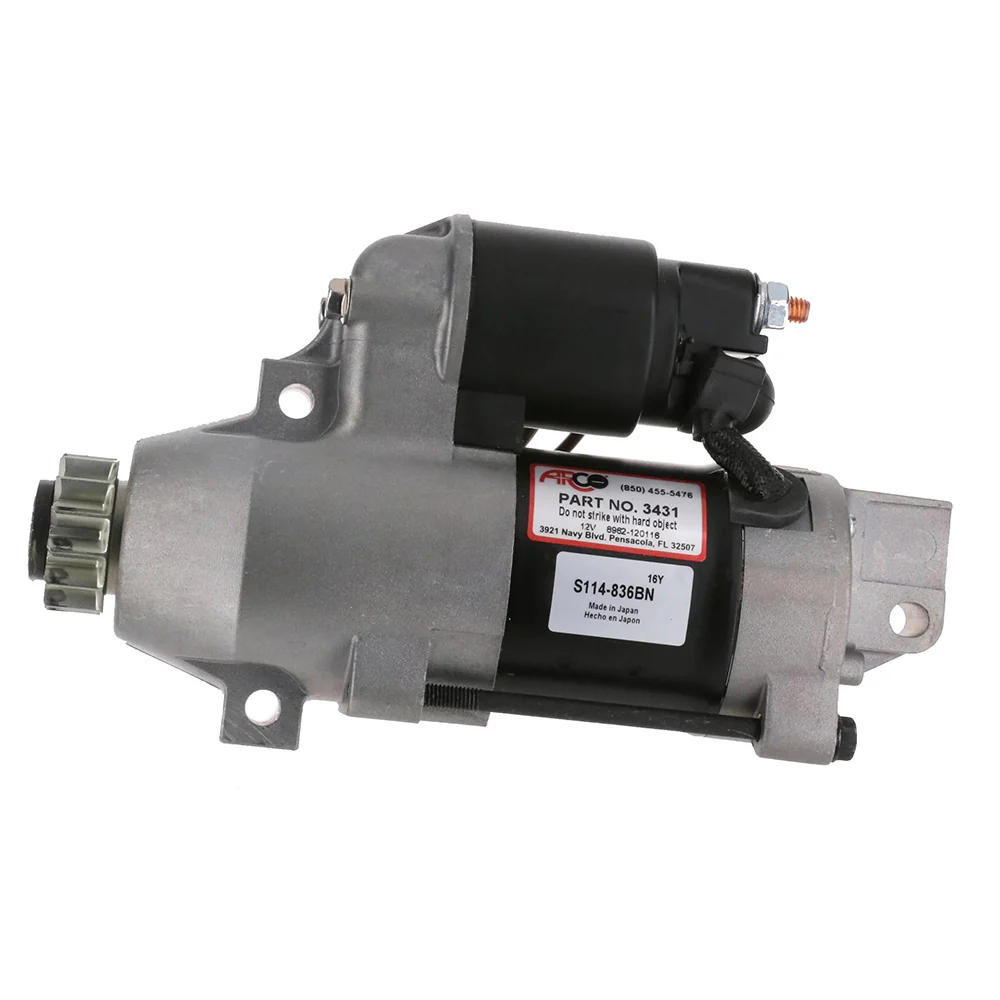

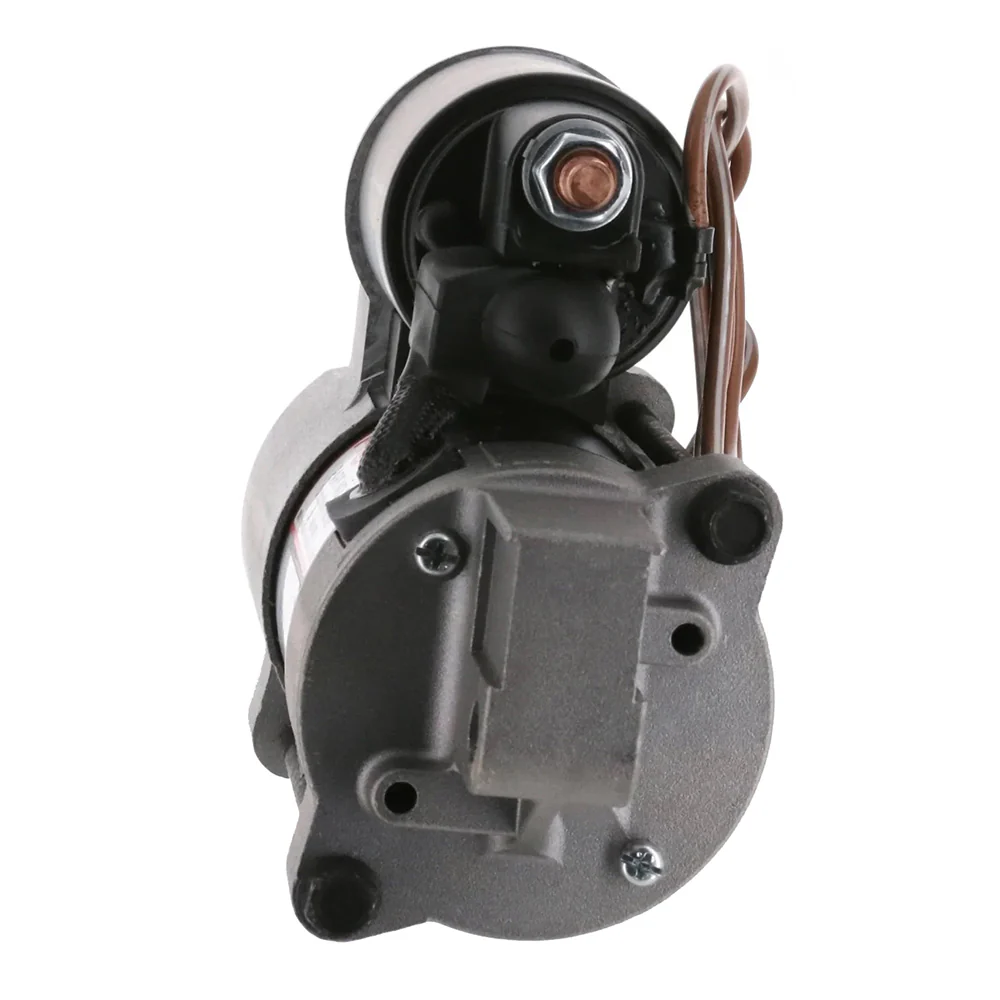

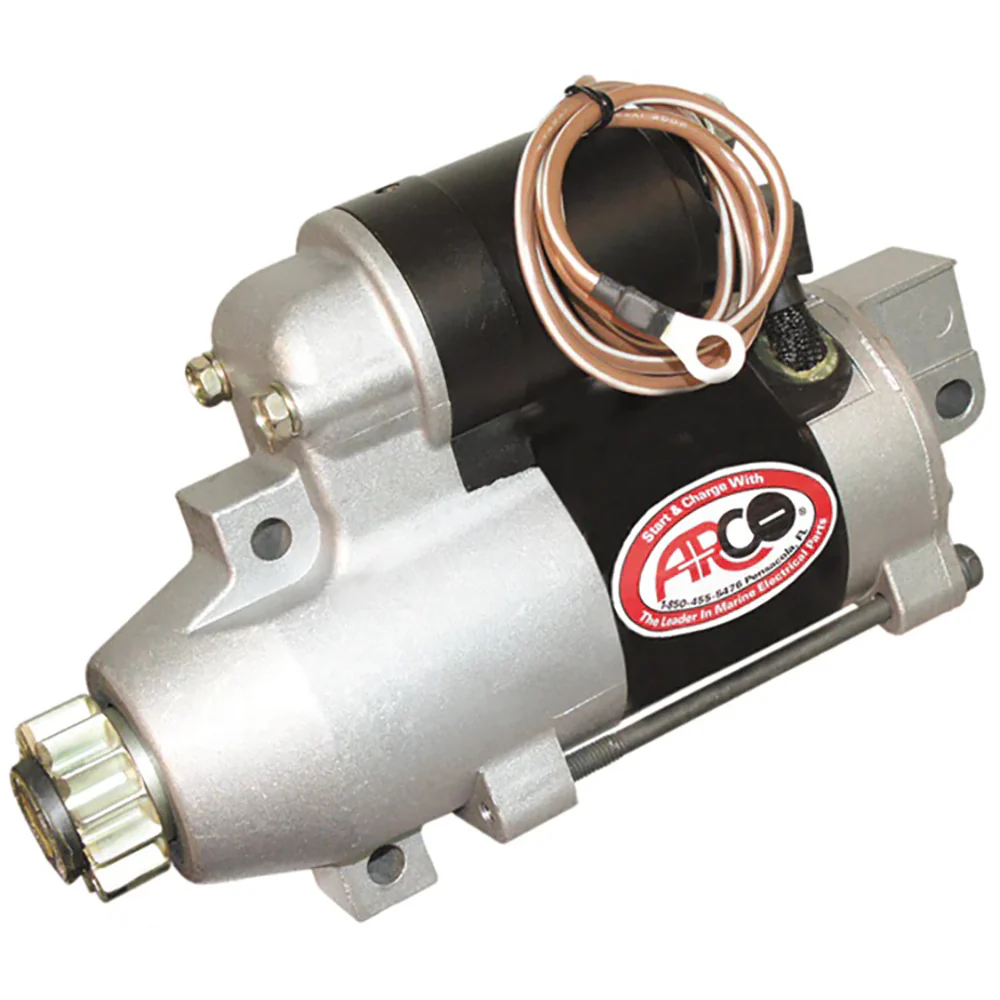

ARCO Marine Premium Replacement Outboard Starter f/Yamaha 200-Present - 13 Tooth [3431]

ARCO Marine Premium Replacement Outboard Starter f/Yamaha 200-Present - 13 Tooth [3431]

Replacement outboard starter that will fit Yamaha 2000-Up, LZ 150-175HP, 2000-Up VZ 150-175HP, 2000-Up Z 150-175HP, 2000-Up LZ 200-Z200HP.

ARCO advises using a fully charged battery - A weak battery can damage the starter and starter solenoid. And to also clean all connections - A corroded connection creates resistance, lowering the amperage required for an efficient starting circuit.

Features:

• Dynamically tested and packaged for out-of-the-box performance
• Nickel-coated and/or epoxy-painted to reduce corrosion
• Sealed to minimize water intrusion
• Designed for long life and optimum performance
• Armatures are tested to withstand 50 times operating voltages (12 volts)

Product Specifications

ARCO Marine Premium Replacement Outboard Starter f/Yamaha 200-Present - 13 Tooth [3431] Product Specifications

Technical Specifications:

• Voltage – 12V

• Tooth Count – 13-Tooth Drive Gear

• Starter Type – Premium Replacement Outboard Starter

• Rotation – Clockwise (CW)

• Compatibility – Yamaha Outboards (2000–Present models, select engines)

• Mount Type – Direct OEM Replacement

• Housing Material – Corrosion-resistant aluminum

• Finish – Black protective coating

• Solenoid – Integrated

• Weight – Approx. 6.5 lbs / 2.95 kg

• Water Resistance – Sealed for marine use

• Warranty – Limited manufacturer warranty

Mounting Application:

• Direct-fit replacement for Yamaha outboard starter motors on select 2000–Present models. Designed for fast installation using OEM hardware and connectors.

Product Manual

Quick Guide (pdf)

Product Warranty

ARCO Marine Warranty

Warranty Information:

When properly installed, all ARCO products are warrantied against defects in materials and workmanship for a period of 12 months for leisure use and 90 days for commercial or racing applications.

Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration

Replaces:

• Hitachi Outboard Starter S114-836A
• Yamaha Outboard Starter 68F-81800-00
• Yamaha Outboard Starter 68F-81800-01
• Yamaha Outboard Starter 68F-81800-03
• Yamaha Outboard Starter 68F-81800-03
• SIERRA Outboard Starter 18-6426

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Product FAQs

N/A
