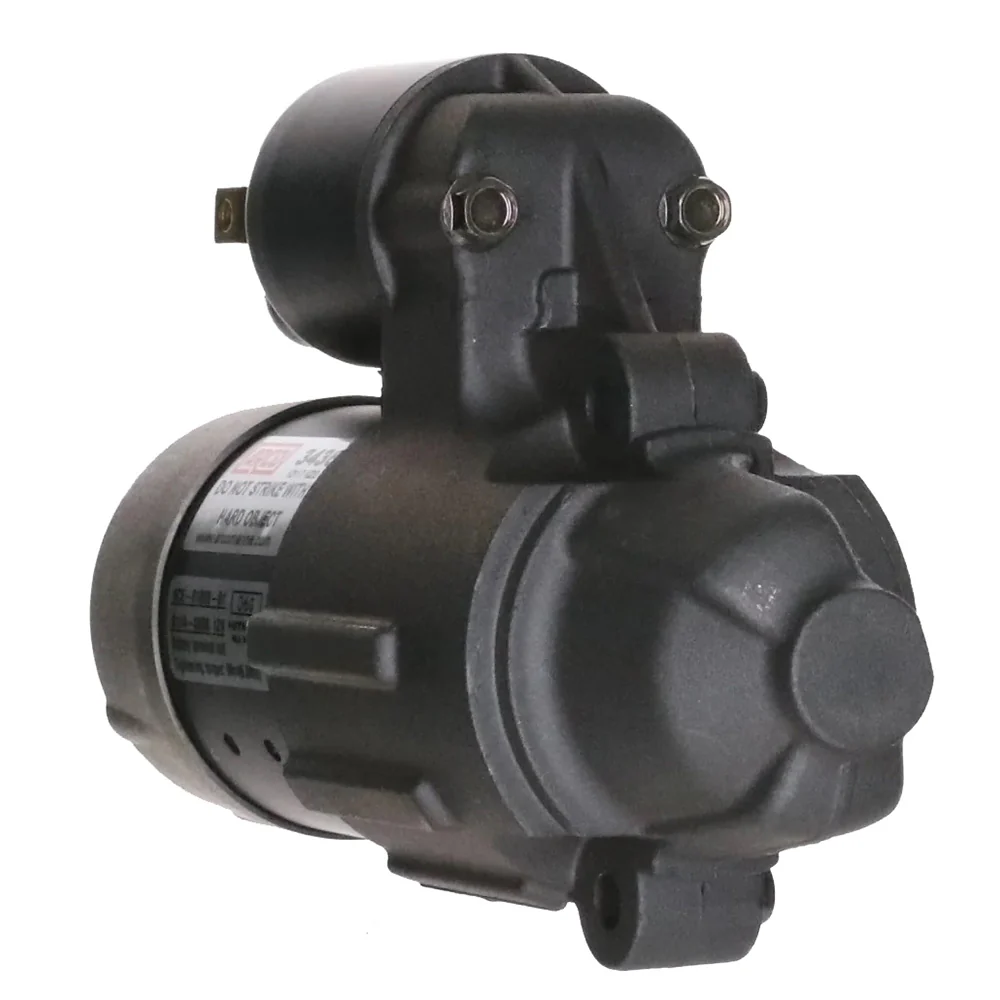

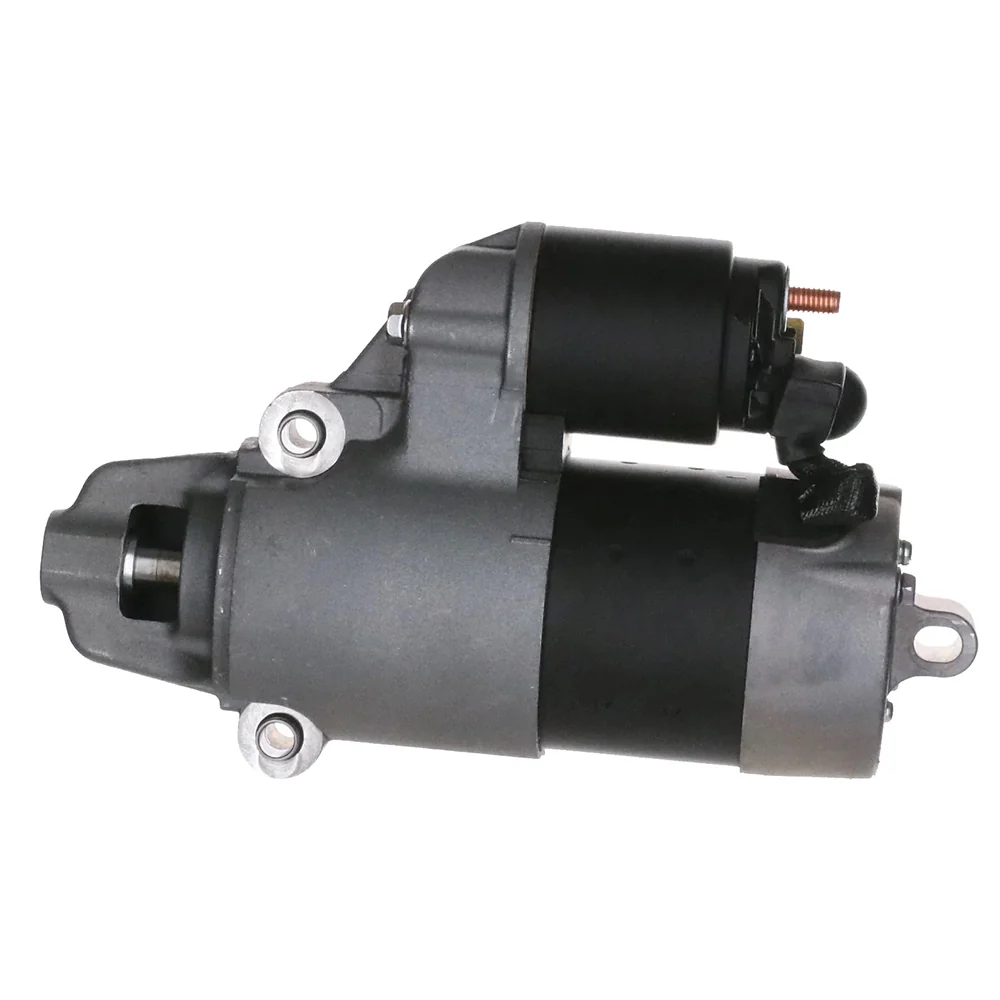

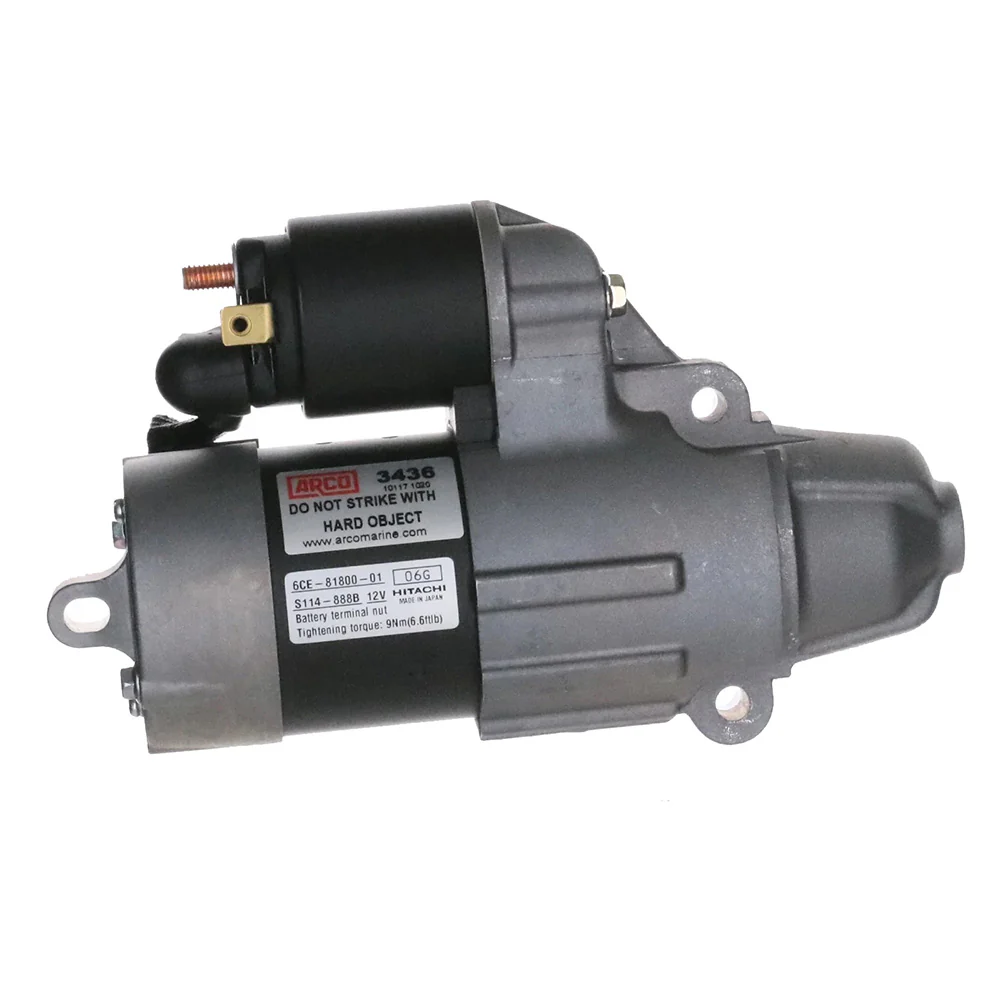

ARCO Marine Premium Replacement Outboard Starter f/Yamaha 200-300HP - 9 Tooth [3436]

ARCO Marine Premium Replacement Outboard Starter f/Yamaha 200-300HP - 9 Tooth [3436]

Outboard starter that will fit Yamaha 200-300HP 4-Stroke.

ARCO advises using a fully charged battery - A weak battery can damage the starter and starter solenoid. And to also clean all connections - A corroded connection creates resistance, lowering the amperage required for an efficient starting circuit.

Features:

• Dynamically tested and packaged for out-of-the-box performance
• Nickel-coated and/or epoxy-painted to reduce corrosion
• Sealed to minimize water intrusion
• Designed for long life and optimum performance
• Armatures are tested to withstand 50 times operating voltages (12 volts)

Product Specifications

ARCO Marine Premium Replacement Outboard Starter f/Yamaha 200-300HP - 9 Tooth [3436] Product Specifications

Technical Specifications:

• Voltage – 12V

• Tooth Count – 9-Tooth Drive Gear

• Starter Type – Premium Replacement Outboard Starter

• Rotation – Clockwise (CW)

• Compatibility – Yamaha Outboards (200–300HP)

• Mount Type – Direct OEM Replacement

• Housing Material – Marine-grade aluminum

• Finish – Black corrosion-resistant coating

• Solenoid – Integrated

• Weight – Approx. 7.1 lbs / 3.2 kg

• Water Resistance – Fully sealed for marine use

• Warranty – Limited manufacturer warranty

Mounting Application:

Engineered as a direct replacement for Yamaha 200–300HP outboard starter motors. Provides quick, reliable starts and installs easily using existing OEM hardware and electrical connections.

Product Manual

Quick Guide (pdf)

Product Warranty

ARCO Marine Warranty

Warranty Information:

When properly installed, all ARCO products are warrantied against defects in materials and workmanship for a period of 12 months for leisure use and 90 days for commercial or racing applications.

Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration

Replaces:

• HITACHI Outboard Starter S114-888BN
• HITACHI Outboard Starter S114-888A
• YAMAHA Outboard Starter 6CE-81800-00-00
• YAMAHA Outboard Starter 6CE-81800-01-00

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Product FAQs

N/A
