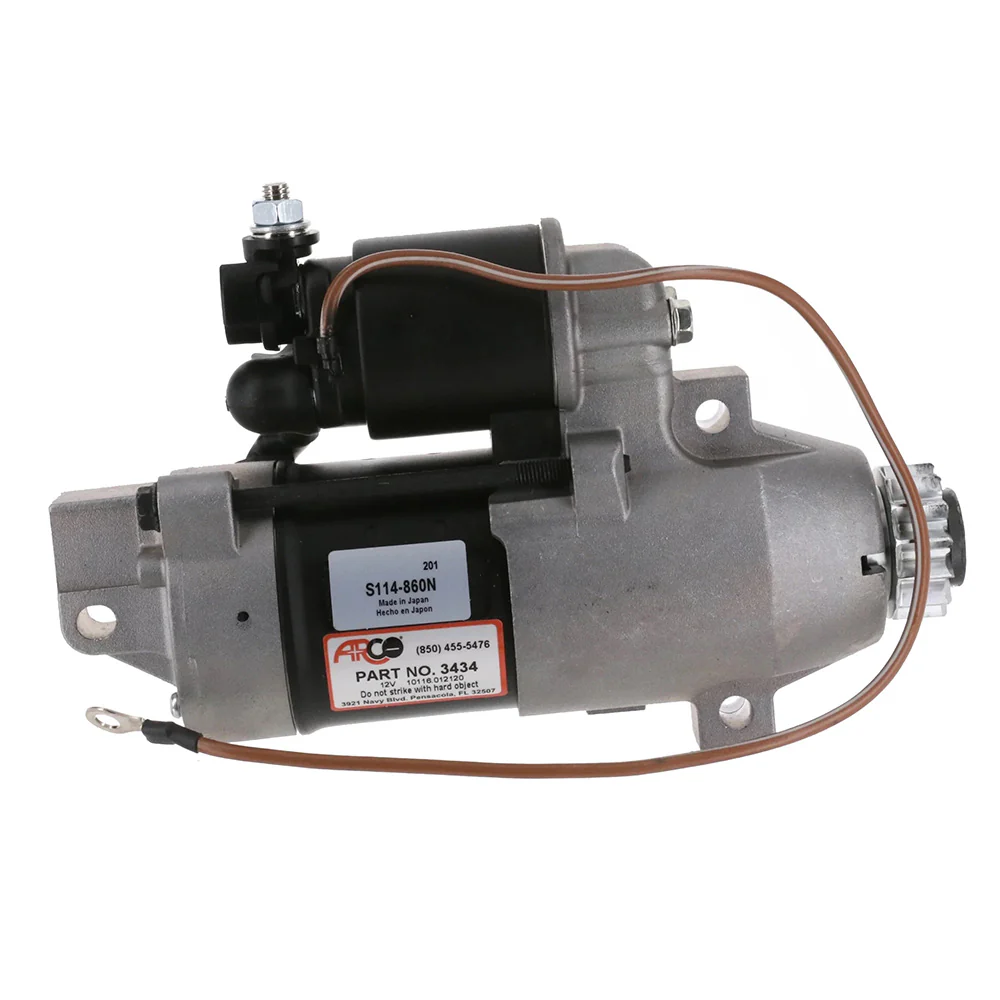

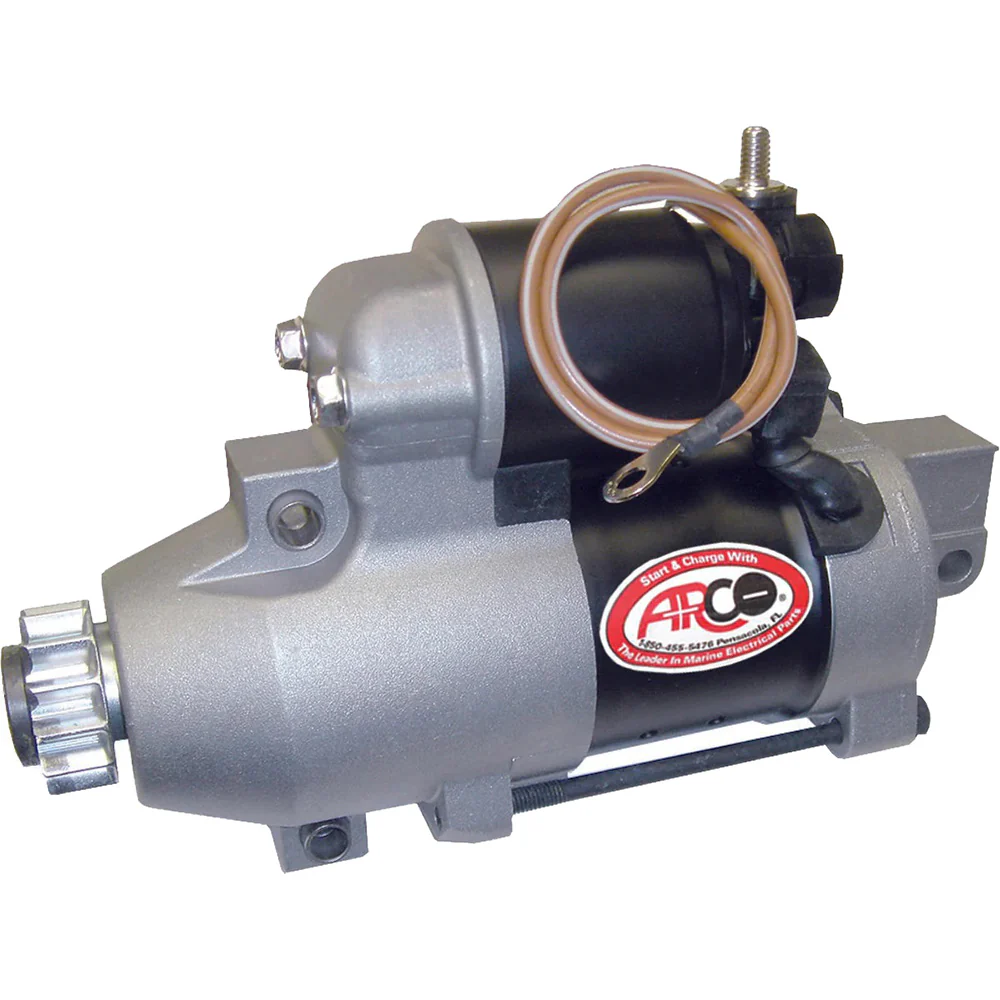

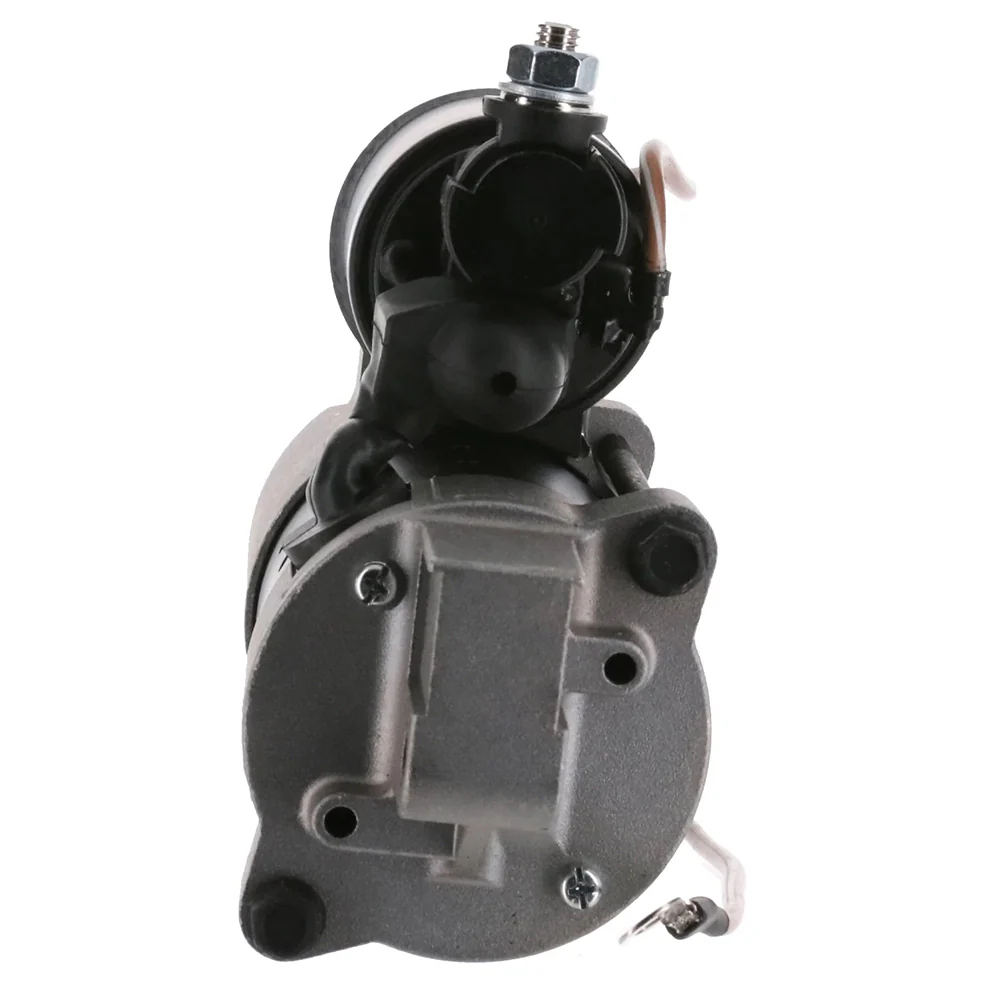

ARCO Marine Premium Replacement Outboard Starter f/Yamaha 200-225HP - 13 Tooth [3434]

ARCO Marine Premium Replacement Outboard Starter f/Yamaha 200-225HP - 13 Tooth [3434]

Replacement outboard starter that will fit Yamaha 200-225HP 4-stroke.

ARCO advises using a fully charged battery - A weak battery can damage the starter and starter solenoid. And to also clean all connections - A corroded connection creates resistance, lowering the amperage required for an efficient starting circuit.

Features:

• Dynamically tested and packaged for out-of-the-box performance
• Nickel-coated and/or epoxy-painted to reduce corrosion
• Sealed to minimize water intrusion
• Designed for long life and optimum performance
• Armatures are tested to withstand 50 times operating voltages (12 volts)

Product Specifications

ARCO Marine Premium Replacement Outboard Starter f/Yamaha 200-225HP - 13 Tooth [3434] Product Specifications

Technical Specifications:

• Voltage – 12V

• Tooth Count – 13-Tooth Drive Gear

• Starter Type – Premium Replacement Outboard Starter

• Rotation – Clockwise (CW)

• Compatibility – Yamaha Outboards (200–225HP)

• Mount Type – Direct OEM Replacement

• Housing Material – Marine-grade aluminum

• Finish – Black corrosion-resistant coating

• Solenoid – Integrated

• Weight – Approx. 6.8 lbs / 3.1 kg

• Water Resistance – Sealed for marine conditions

• Warranty – Limited manufacturer warranty

Mounting Application:

Direct-fit replacement for Yamaha 200–225HP outboard starter motors. Designed for easy installation with OEM-compatible connectors and mounting points.

Product Manual

Quick Guide (pdf)

Product Warranty

ARCO Marine Warranty

Warranty Information:

When properly installed, all ARCO products are warrantied against defects in materials and workmanship for a period of 12 months for leisure use and 90 days for commercial or racing applications.

Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration

Replaces:

• HITACHI Outboard Starter S114-860N
• YAMAHA Outboard Starter 69J-81800-00
• YAMAHA Outboard Starter 69J-81800-01
• SIERRA Outboard Starter 18-6833

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Product FAQs

N/A
