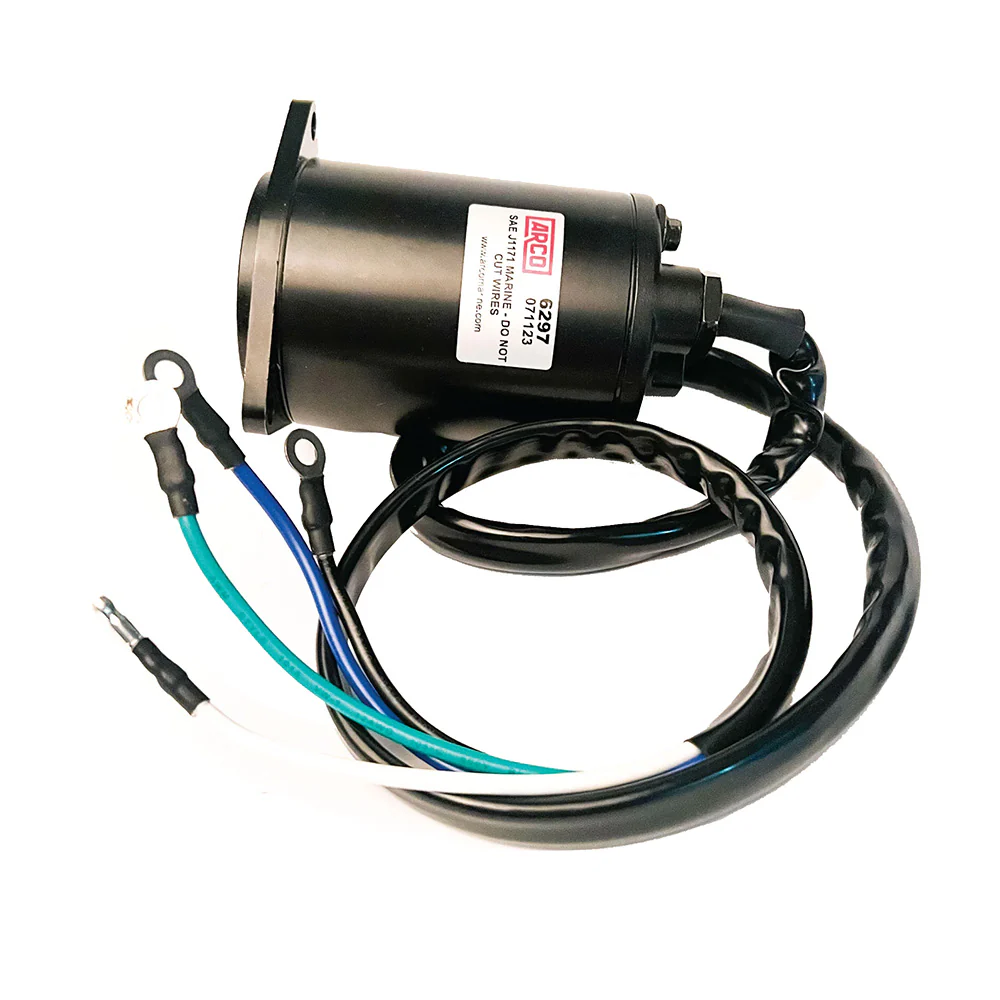

ARCO Marine Original Equipment Quality Replacement Yamaha Tilt Trim Motor - 1990-2003 250HP/1994-2003 225HP Units [6297]

ARCO Marine Original Equipment Quality Replacement Yamaha Tilt Trim Motor - 1990-2003 250HP/1994-2003 225HP Units [6297]

Replacement outboard tilt trim motor that will fit Yamaha 225HP-250HP 1993-2003.

ARCO advises cleaning all connections: A corroded connection creates resistance, lowering the amperage required to operate the motor.

Features:

• Tilt trim motors are dynamically tested to ensure out-of-the-box performance
• Motor shafts induction case hardened at bearing surfaces for superior wear resistance
• Epoxy Powder coated for maximum insulation protection

Product Specifications

ARCO Marine Original Equipment Quality Replacement Yamaha Tilt Trim Motor - 1990-2003 250HP/1994-2003 225HP Units [6297] Product Specifications

Technical Specifications:

• Voltage – 12V

• Motor Type – Tilt Trim Replacement Motor

• Rotation – Standard

• Compatibility – Yamaha Outboards:
    • 250HP (1990–2003)
    • 225HP (1994–2003)

• Mount Type – Direct OEM Replacement

• Finish – Corrosion-resistant black coating

• Housing Material – Marine-grade sealed construction

• Wiring – Pre-installed leads with OEM-style connectors

• Weight – Approx. 4.5 lbs / 2.04 kg

• Water Resistance – Sealed for marine environments

• Warranty – Limited manufacturer warranty

Mounting Application:

• Direct replacement for Yamaha outboard tilt trim motors on compatible 250HP (1990–2003) and 225HP (1994–2003) engines. Designed for easy installation using existing mounting points and connectors.

Product Manual

Quick Guide (pdf)

Product Warranty

ARCO Marine Warranty

Warranty Information:

When properly installed, all ARCO products are warrantied against defects in materials and workmanship for a period of 12 months for leisure use and 90 days for commercial or racing applications.

Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration

Replaces:

• YAMAHA Tilt Trim Motor 61A-43880-02-00
• YAMAHA Tilt Trim Motor 61A-43880-01-00
• YAMAHA Tilt Trim Motor 61A-43880-00-00
• SIERRA Tilt Trim Motor 18-6782

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns

Product FAQs

N/A
