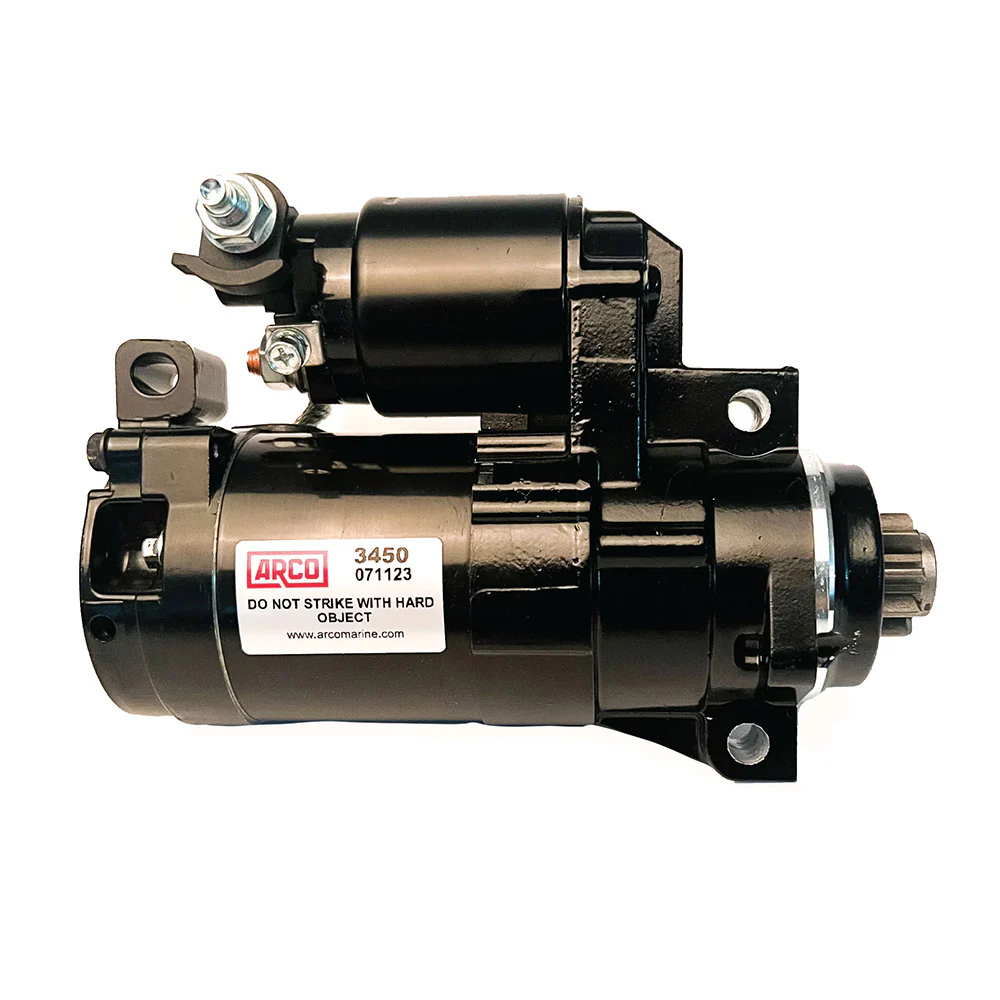

ARCO Marine Original Equipment Quality Replacement Yamaha Outboard Starter - 2008-Up [3450]

ARCO Marine Original Equipment Quality Replacement Yamaha Outboard Starter - 2008-Up [3450]

Replacement outboard starter that will fit 25HP-40HP 2009-2022.

ARCO advises using a fully charged battery - A weak battery can damage the starter and starter solenoid. And to also clean all connections - A corroded connection creates resistance, lowering the amperage required for an efficient starting circuit.

Features:

• Dynamically tested and packaged for out-of-the-box performance
• Nickel-coated and/or epoxy-painted to reduce corrosion
• Sealed to minimize water intrusion
• Designed for long life and optimum performance
• Armatures are tested to withstand 50 times operating voltages (12 volts)

Product Specifications

ARCO Marine Original Equipment Quality Replacement Yamaha Outboard Starter - 2008-Up [3450] Product Specifications

Technical Specifications:

• Application: Yamaha outboard engines, 25–40 HP (model years 2009–2022)

• ARCO Part Number: 3450

• Replaces OEM Starters:

  • Yamaha 6BG‑81800‑00‑00

  • Mitsubishi M0TA5071

  • Sierra 18‑6964

• Voltage: 12 V DC

• Construction & Performance:

  • Dynamically load-tested at five different levels

  • Corrosion-resistant nickel or epoxy-coated housing, fully sealed to minimize water intrusion

  • Armature engineered to withstand up to 50× rated voltage

• Installation Tips: Use a fully charged battery and clean all connections to ensure optimal performance

• Weight: Approx. 8 lb (as per reseller listings)

• UPC: 693006010939

• Warranty:

  • 12 months for leisure use

  • 90 days for commercial/racing use

  • +1 year warranty extension when registered within 30 days (rotating parts only)

Product Manual

Quick Guide (pdf)

Product Warranty

ARCO Marine Warranty

Warranty Information:

When properly installed, all ARCO products are warrantied against defects in materials and workmanship for a period of 12 months for leisure use and 90 days for commercial or racing applications.

Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration

Replaces:

• YAMAHA Outboard Starter 6BG-81800-00-00
• MITSUBISHI Outboard Starter M0TA5071
• SIERRA Outboard Starter 18-6964

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Product FAQs

N/A
