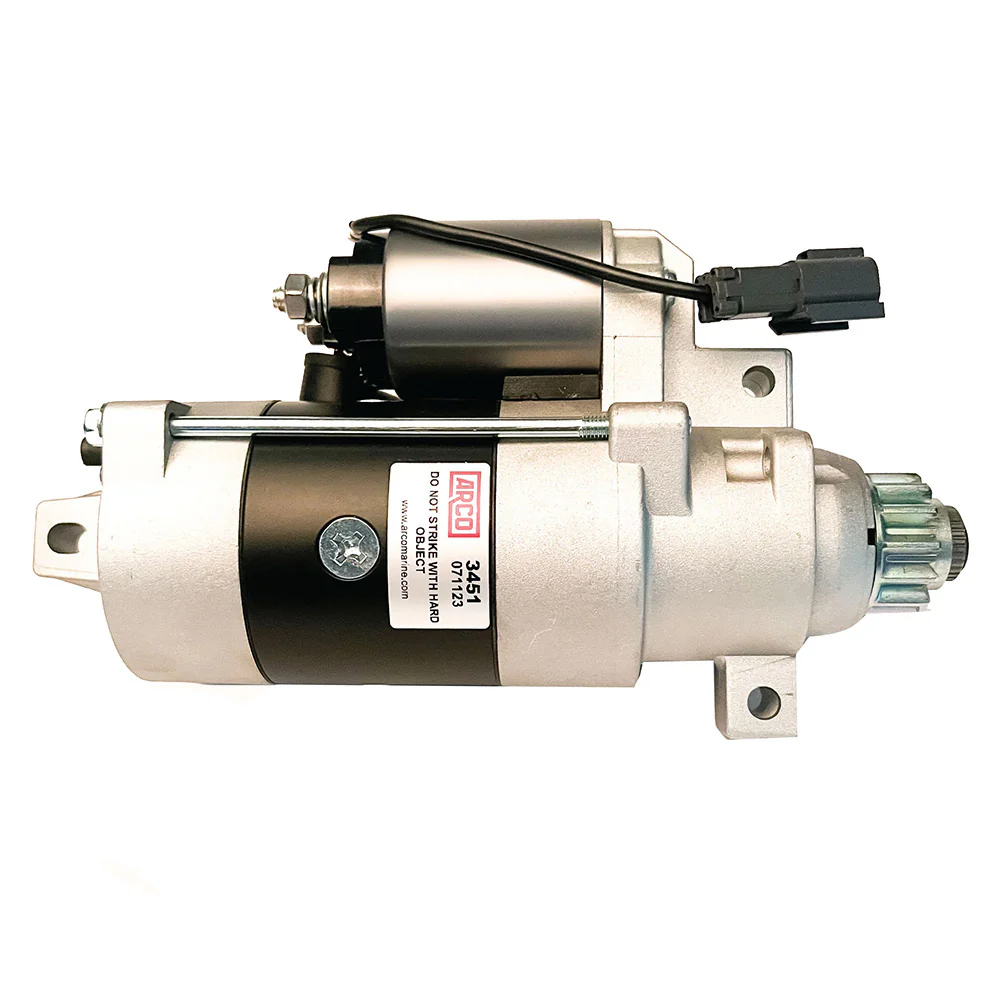

ARCO Marine Original Equipment Quality Replacement Yamaha Outboard Starter - 2007-2022 [3451]

ARCO Marine Original Equipment Quality Replacement Yamaha Outboard Starter - 2007-2022 [3451]

Replacement outboard starter that will fit 300HP-425HP 2007-2022.

ARCO advises using a fully charged battery - A weak battery can damage the starter and starter solenoid. And to also clean all connections - A corroded connection creates resistance, lowering the amperage required for an efficient starting circuit.

Features:

• Dynamically tested and packaged for out-of-the-box performance
• Nickel-coated and/or epoxy-painted to reduce corrosion
• Sealed to minimize water intrusion
• Designed for long life and optimum performance
• Armatures are tested to withstand 50 times operating voltages (12 volts)

Product Specifications

ARCO Marine Original Equipment Quality Replacement Yamaha Outboard Starter - 2007-2022 [3451] Product Specifications

Technical Specifications:

• Application: Yamaha outboard engines (300–425 HP), 2007–2022

• ARCO Part Number: 3451

• Replaces OEM Starters:

  • Yamaha 6AW‑81800‑00‑00

  • Mitsubishi M008T71771 / M008T71772

  • Sierra 18‑55507

• Voltage: 12 V DC

• Construction & Features:

  • Dynamically tested for out-of-box reliability

  • Corrosion-resistant housing with nickel or epoxy coating; fully sealed to minimize water intrusion

  • Armature rated to withstand up to 50× normal operating voltage

• Weight: Approximately 7 lb

• UPC: 693006010946

• Warranty:

  • 12 months for leisure use

  • 90 days for commercial/racing use

  • Additional 1-year coverage with registration within 30 days

Product Manual

Quick Guide (pdf)

Product Warranty

ARCO Marine Warranty

Warranty Information:

When properly installed, all ARCO products are warrantied against defects in materials and workmanship for a period of 12 months for leisure use and 90 days for commercial or racing applications.

Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration

Replaces:

• YAMAHA Outboard Starter 6AW-81800-00-00
• MITSUBISHI Outboard Starter M008T71771
• MITSUBISHI Outboard Starter M008T71772
• SIERRA Outboard Starter 18-55507

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
