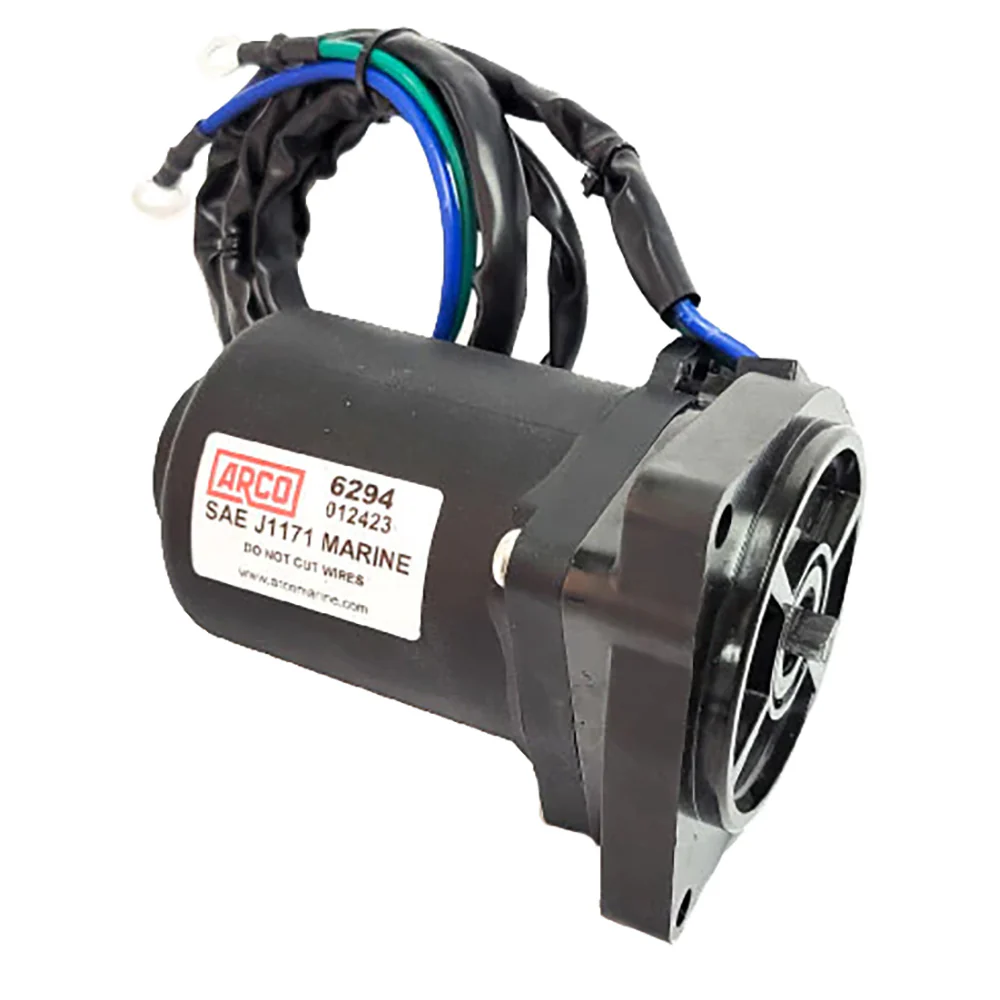

ARCO Marine Original Equipment Quality Replacement Tilt Trim Motor f/Yamaha 2014-2021 [6294]

ARCO Marine Original Equipment Quality Replacement Tilt Trim Motor f/Yamaha 2014-2021 [6294]

Replacement outboard tilt trim motor that will fit Yamaha 90-130HP (fit for 4T F75 F80 F90 F100 F115 FL115 F125 F130).

ARCO advises cleaning all connections: A corroded connection creates resistance, lowering the amperage required to operate the motor.

Features:

• Tilt trim motors are dynamically tested to ensure out-of-the-box performance
• Motor shafts induction case hardened at bearing surfaces for superior wear resistance
• Epoxy Powder coated for maximum insulation protection

Product Specifications

ARCO Marine Original Equipment Quality Replacement Tilt Trim Motor f/Yamaha 2014-2021 [6294] Product Specifications

Technical Specifications:

• Voltage – 12V

• Motor Type – Tilt Trim Replacement Motor

• Rotation – Standard

• Compatibility – Yamaha Outboards (2014–2021, select models)

• Mount Type – Direct OEM Replacement

• Finish – Corrosion-resistant black coating

• Housing Material – Marine-grade sealed aluminum

• Wiring – Pre-installed leads with OEM-style connectors

• Weight – Approx. 4.3 lbs / 1.95 kg

• Water Resistance – Fully sealed for marine environments

• Warranty – Limited manufacturer warranty

Mounting Application:

Direct-fit replacement for Yamaha tilt trim motors on select 2014–2021 outboard engines. Engineered for reliable performance and quick installation using factory-style mounting points and connectors.

Product Manual

Quick Guide (pdf)

Product Warranty

ARCO Marine Warranty

Warranty Information:

When properly installed, all ARCO products are warrantied against defects in materials and workmanship for a period of 12 months for leisure use and 90 days for commercial or racing applications.

Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration

Replaces:

• YAMAHA Tilt Trim Motor 6EK-43880-12-00
• YAMAHA Tilt Trim Motor 6EK-43880-11-00
• YAMAHA Tilt Trim Motor 6EK-43880-00-00

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
