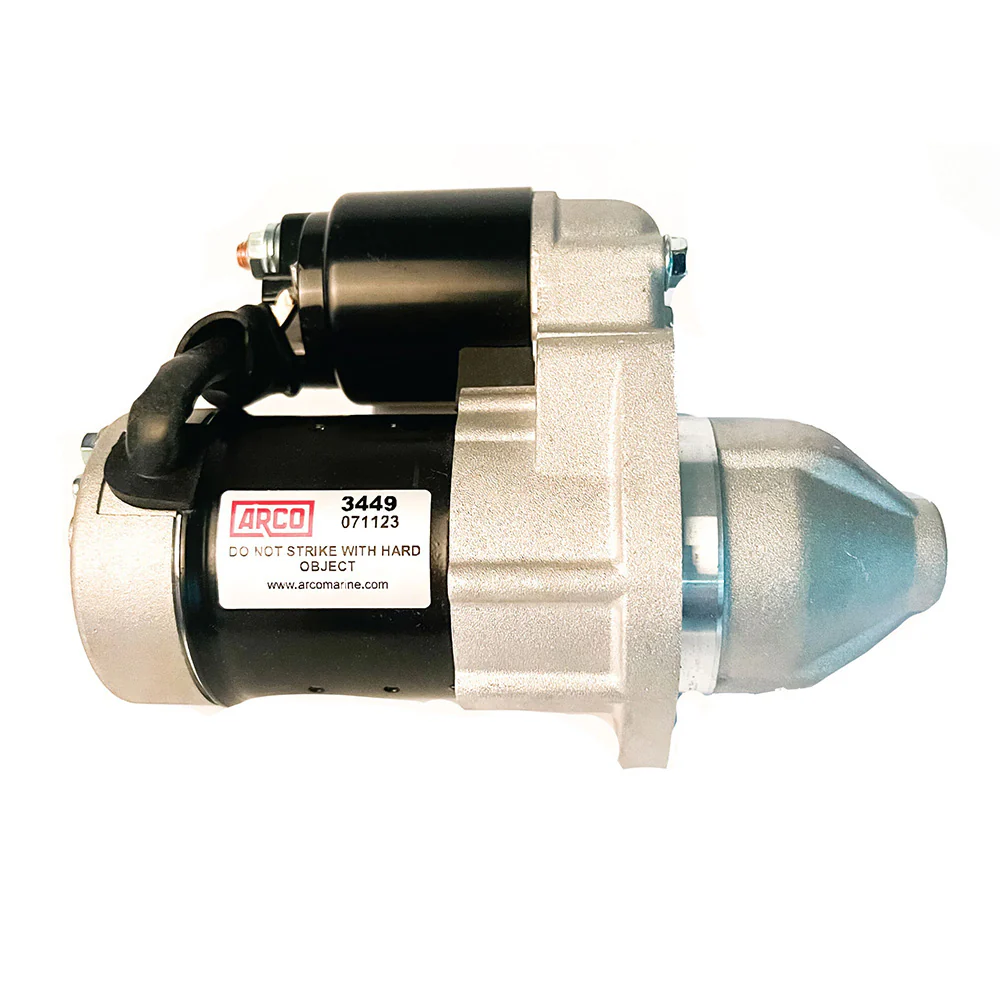

ARCO Marine Original Equipment Quality Replacement Suzuki OMC Outboard Starter - 2005-2018 Models [3449]

ARCO Marine Original Equipment Quality Replacement Suzuki  OMC Outboard Starter - 2005-2018 Models [3449]

Replacement outboard starter that will fit 9.9HP-20HP, 40HP-60HP 2005-2018.

ARCO advises using a fully charged battery - A weak battery can damage the starter and starter solenoid. And to also clean all connections - A corroded connection creates resistance, lowering the amperage required for an efficient starting circuit.

Features:

• Dynamically tested and packaged for out-of-the-box performance
• Nickel-coated and/or epoxy-painted to reduce corrosion
• Sealed to minimize water intrusion
• Designed for long life and optimum performance
• Armatures are tested to withstand 50 times operating voltages (12 volts)

Product Specifications

ARCO Marine Original Equipment Quality Replacement Suzuki  OMC Outboard Starter - 2005-2018 Models [3449] Product Specifications

Technical Specifications:

• Application: Suzuki & Johnson/OMC outboard engines – 75–140 HP (model years 2005–2018)

• ARCO Part Number: 3449

• Replaces OEM Starters:

  • Diesel Suzuki: 31100‑96J02, 96J01, 96J00

  • Gas Suzuki: 31100‑96J05, 31100‑96J04

  • Johnson/Evinrude: 5035075, 5033640

  • Sierra: 18‑6940

  • Hitachi: S114‑861

• Voltage: 12 V DC

• Construction & Features:

  • Dynamically load-tested across multiple levels for reliability

  • Corrosion-resistant housing (nickel- or epoxy-coated); fully sealed to resist water

  • Armature engineered to withstand up to 50× rated voltage

• Weight: Approx. 6.4 lb

• UPC: 693006010922

• Warranty:

  • 12 months (leisure/recreational use)

  • 90 days (commercial/racing use)

  • Additional 1-year warranty for rotating parts if registered within 30 days

Product Manual

Quick Guide (pdf)

Product Warranty

ARCO Marine Warranty

Warranty Information:

When properly installed, all ARCO products are warrantied against defects in materials and workmanship for a period of 12 months for leisure use and 90 days for commercial or racing applications.

Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration

Replaces:

• SUZUKI Outboard Starter 31100-94J22
• SUZUKI Outboard Starter 31100-94J21
• SUZUKI Outboard Starter 31100-94J20
• SUZUKI Outboard Starter 31100-94J10
• JOHNSON EVINRUDE Outboard Starter 5036244

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
