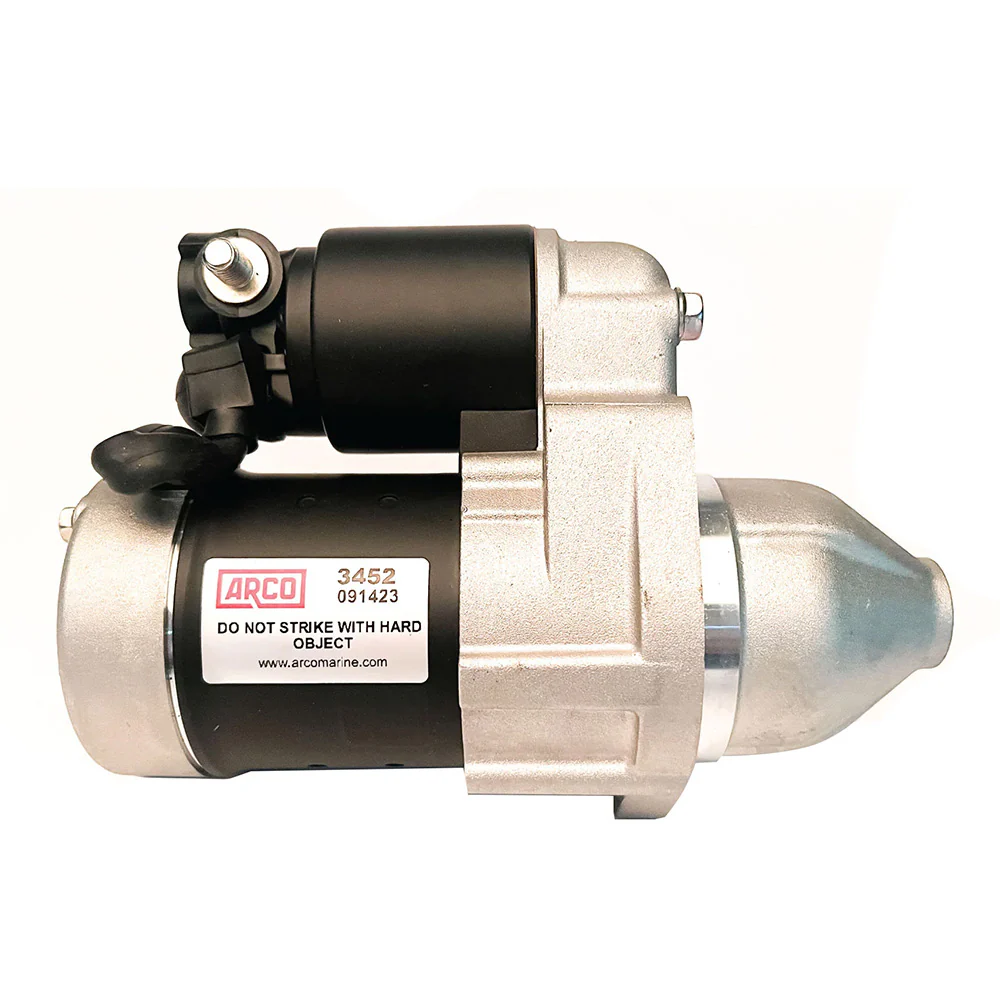

ARCO Marine Original Equipment Quality Replacement Suzuki OMC Outboard Starter - 2004-2017 [3452]

ARCO Marine Original Equipment Quality Replacement Suzuki  OMC Outboard Starter - 2004-2017 [3452]

Replacement outboard starter that will fit 70HP-90HP, 150HP-300HP 2004-2017.

ARCO advises using a fully charged battery - A weak battery can damage the starter and starter solenoid. And to also clean all connections - A corroded connection creates resistance, lowering the amperage required for an efficient starting circuit.

Features:

• Dynamically tested and packaged for out-of-the-box performance
• Nickel-coated and/or epoxy-painted to reduce corrosion
• Sealed to minimize water intrusion
• Designed for long life and optimum performance
• Armatures are tested to withstand 50 times operating voltages (12 volts)

Product Specifications

ARCO Marine Original Equipment Quality Replacement Suzuki  OMC Outboard Starter - 2004-2017 [3452] Product Specifications

Technical Specifications:

• Part Number: 3452

• Compatibility: Suzuki & Johnson/OMC outboards — 70–90 HP and 150–300 HP (2004–2017)

• Replaces OEM Starters:

  • Suzuki: 31100‑96J02 / 96J01 / 96J00 / 93J00

  • Johnson/Evinrude: 5035078

  • Sierra: 18‑6941

  • Hitachi: S114‑868

• Voltage: 12 V DC

• Construction Highlights:

  • Dynamically tested for out-of-box reliability

  • Corrosion-resistant (nickel or epoxy-coated), sealed housing

  • Armature rated to withstand 50× normal operating voltage

• Weight: Approximately 6.6 lb (as listed on Amazon/Saudi)

• Package Size: 10″ × 7″ × 5″ (7 lb shipping dimensions)

• UPC: 693006010953

• Warranty:

  • 12 months for leisure use

  • 90 days for commercial/racing use

  • +1 year extended warranty if registered within 30 days (rotating parts)

Product Manual

Quick Guide (pdf)

Product Warranty

ARCO Marine Warranty

Warranty Information:

When properly installed, all ARCO products are warrantied against defects in materials and workmanship for a period of 12 months for leisure use and 90 days for commercial or racing applications.

Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration

Replaces:

• SUZUKI Outboard Starter 31100-96J02
• SUZUKI Outboard Starter 31100-96J01
• SUZUKI Outboard Starter 31100-96J00
• SUZUKI Outboard Starter 31100-93J00
• JOHNSON EVINRUDE Outboard Starter 5035078
• SIERRA Outboard Starter 18-6941
• HITACHI Outboard Starter S114-868

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
