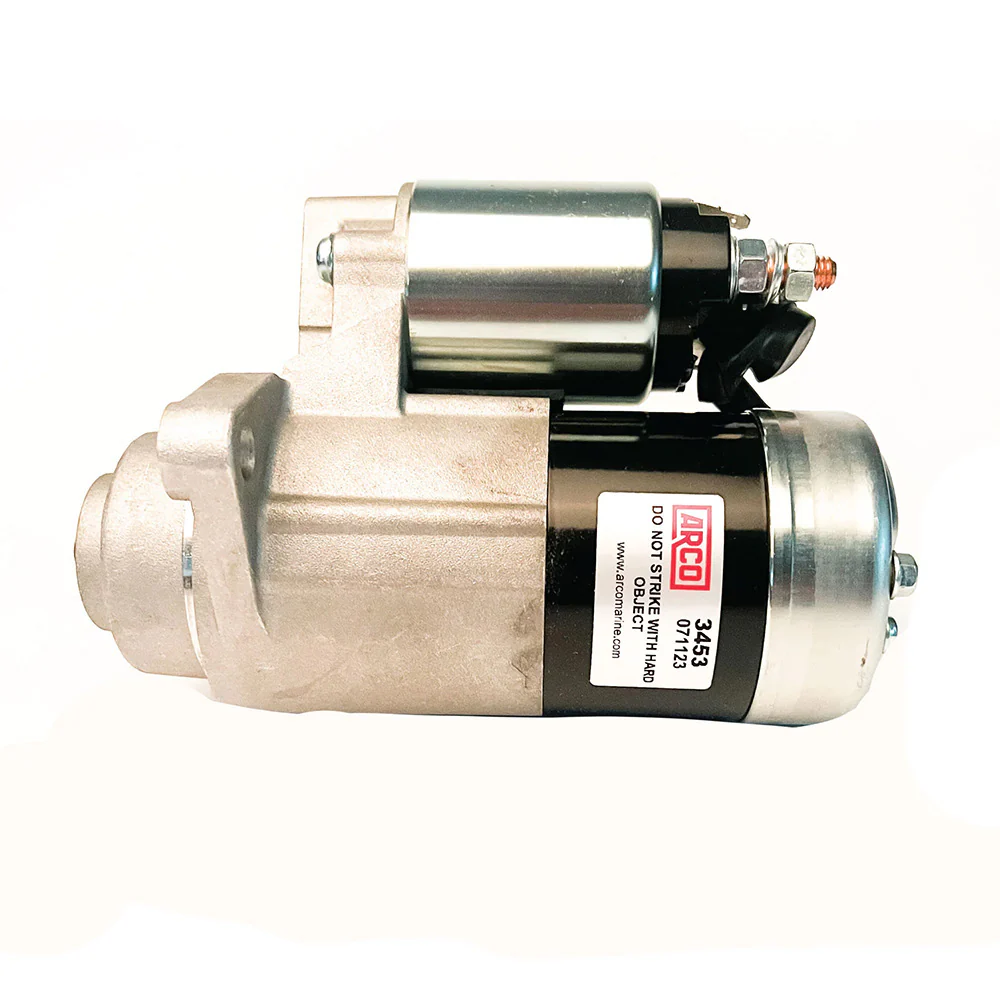

ARCO Marine Original Equipment Quality Replacement Honda Tohatsu Outboard Starter - 1997-Up [3453]

ARCO Marine Original Equipment Quality Replacement Honda  Tohatsu Outboard Starter - 1997-Up [3453]

Replacement outboard starter that will fit 70HP-90HP, 150HP-300HP 2004-2017.

ARCO advises using a fully charged battery - A weak battery can damage the starter and starter solenoid. And to also clean all connections - A corroded connection creates resistance, lowering the amperage required for an efficient starting circuit.

Features:

• Dynamically tested and packaged for out-of-the-box performance
• Nickel-coated and/or epoxy-painted to reduce corrosion
• Sealed to minimize water intrusion
• Designed for long life and optimum performance
• Armatures are tested to withstand 50 times operating voltages (12 volts)

Product Specifications

ARCO Marine Original Equipment Quality Replacement Honda  Tohatsu Outboard Starter - 1997-Up [3453] Product Specifications

Technical Specifications:

• Application: Honda & Tohatsu outboard engines, 75–150 HP (2004–2014 models; compatible with 1997–up variants)

• ARCO Part Number: 3453

• Replaces OEM Starters:

  • Honda: 31200‑ZY6‑003, 31200‑ZY9‑003, 31200‑ZY9‑H01, 31200‑ZY9A‑0031

  • Tohatsu: HZY6‑31200‑003, HZY3‑31630‑003, HZY6‑31200‑003, HZY9‑31200‑H01

  • Sierra: 18‑6959

  • Voltage: 12 V DC

• Weight: Approx. 7 lb

• Construction & Features:

  • Dynamically tested at multiple load levels for reliability

  • Corrosion-resistant nickel or epoxy-coated housing

  • Fully sealed design to minimize water ingress

  • Armature designed to withstand up to 50× rated voltage

• UPC: 693006010960

Product Manual

Quick Guide (pdf)

Product Warranty

ARCO Marine Warranty

Warranty Information:

When properly installed, all ARCO products are warrantied against defects in materials and workmanship for a period of 12 months for leisure use and 90 days for commercial or racing applications.

Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration

Replaces:

• SUZUKI Outboard Starter 31100-96J02
• SUZUKI Outboard Starter 31100-96J01
• SUZUKI Outboard Starter 31100-96J00
• SUZUKI Outboard Starter 31100-93J00
• JOHNSON EVINRUDE Outboard Starter 5035078
• SIERRA Outboard Starter 18-6941
• HITACHI Outboard Starter S114-868

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Product FAQs

N/A
