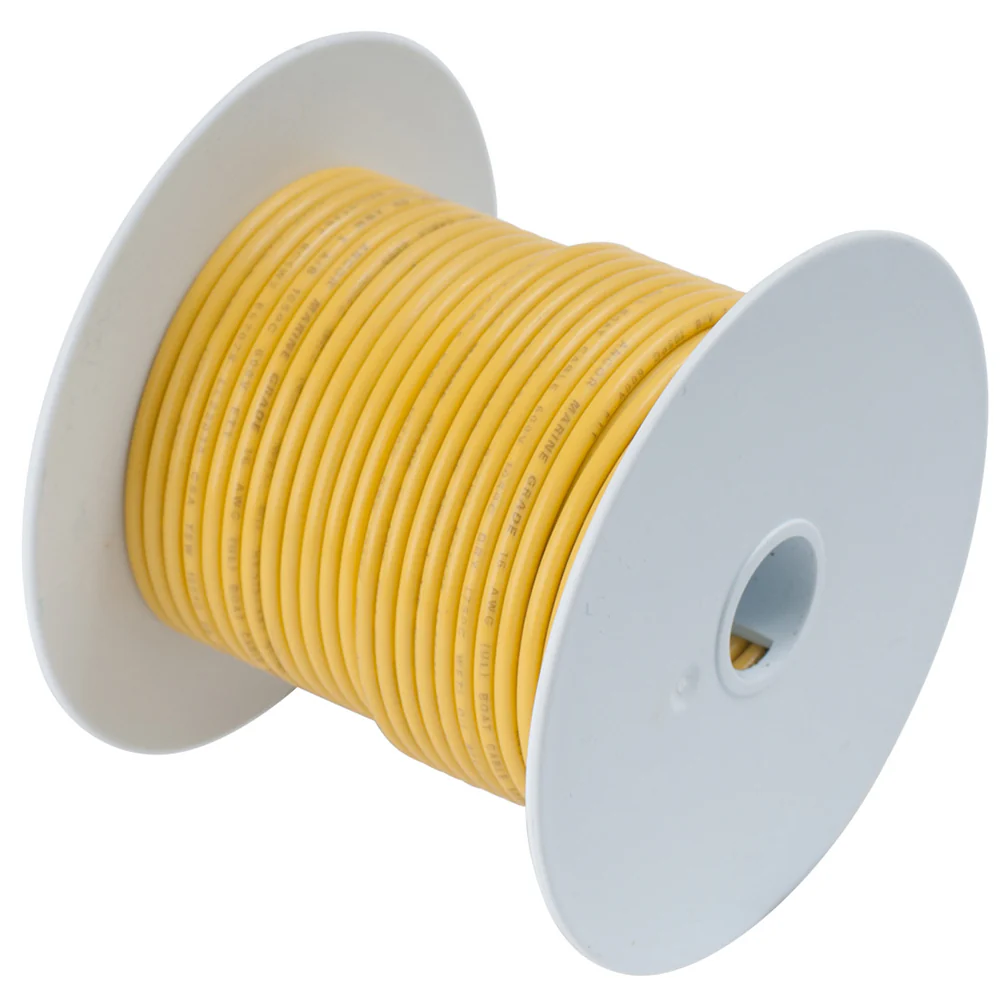

Ancor Yellow 2 AWG Battery Cable - 25' [114902]
Ancor Yellow 2 AWG Battery Cable - 25' [114902]
Description
The Ancor Yellow 2 AWG Battery Cable ā 25' provides reliable, high-current performance for marine, RV, and automotive battery systems. Its stranded tinned copper conductor ensures excellent conductivity and corrosion resistance, while premium PVC insulation protects against salt water, battery acid, oil, gasoline, UV, heat, and abrasion. Rated for 600 volts and suitable for 105Ā°C dry or 75Ā°C wet environments, this cable meets UL 1426, US Coast Guard, and ABYC standards for safe, durable, and long-lasting installations.
Features:
- ANCOR Marine Grade wire is manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis. Ultra flexible (Type 3) stranding resists fatigue due to vibration and flexing.
- ANCORs proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600 volts, 105Ā°C dry and 75Ā°C wet, and is resistant to heat and abrasion.
- Exceeds all UL 1426, US Coast Guard Charter boat (CFR Title 46) and ABYC standards
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Specifications
Ancor Yellow 2 AWG Battery Cable - 25' [114902] Product Specifications
| Specification | Details |
|---|---|
| Color | Yellow |
| Gauge | 2 AWG |
| Length (Feet) | 25' |
| Box Dimensions | 5"H x 7"W x 7"L |
| Weight | 7.3 lbs |
| UPC | 091887967920 |
| Part Number / Model | 114902 |
| Conductor Material | Tinned copper, stranded |
| Stranding | 266 strands of 30 AWG equivalent |
| Insulation Material | PVC / Premium vinyl insulation |
| Voltage Rating | 600 V |
| Temperature Rating | 105 Ā°C (dry); 75 Ā°C (wet) |
| Environmental / Chemical Resistance | Resists salt water, battery acid, oil, gasoline, UV, heat & abrasion |
| Certifications / Standards | Exceeds UL 1426, US Coast Guard (CFR Title 46), ABYC standards |
Product Manual
Quick Guide (pdf)
Brochure (pdf)
Product Warranty
Ancor Product Warranty
Ancor warrants its products to be free from defects in materials or workmanship for a period of 36 months. The warranty period begins on the date the product is delivered.
The warranty is granted to the end-user and applies to products which are purchased, installed, and used for the purposes for which they are originally designed. This warranty covers defects arising under normal use and does not cover malfunctions or failures resulting from misuse, abuse, neglect, improper installation, or incorrect maintenance.
During the warranty period, Ancor will repair or replace, at no charge, a product that is defective in materials or workmanship. Ancor reserves the right to either repair or replace a defective component at its discretion and reserves the right to substitute an equivalent product under the terms of this warranty.
Product FAQs
N/A
