Ancor White Triplex Cable - 14/3 AWG - Flat - 250' [131525]
Ancor White Triplex Cable - 14/3 AWG - Flat - 250' [131525]
Description

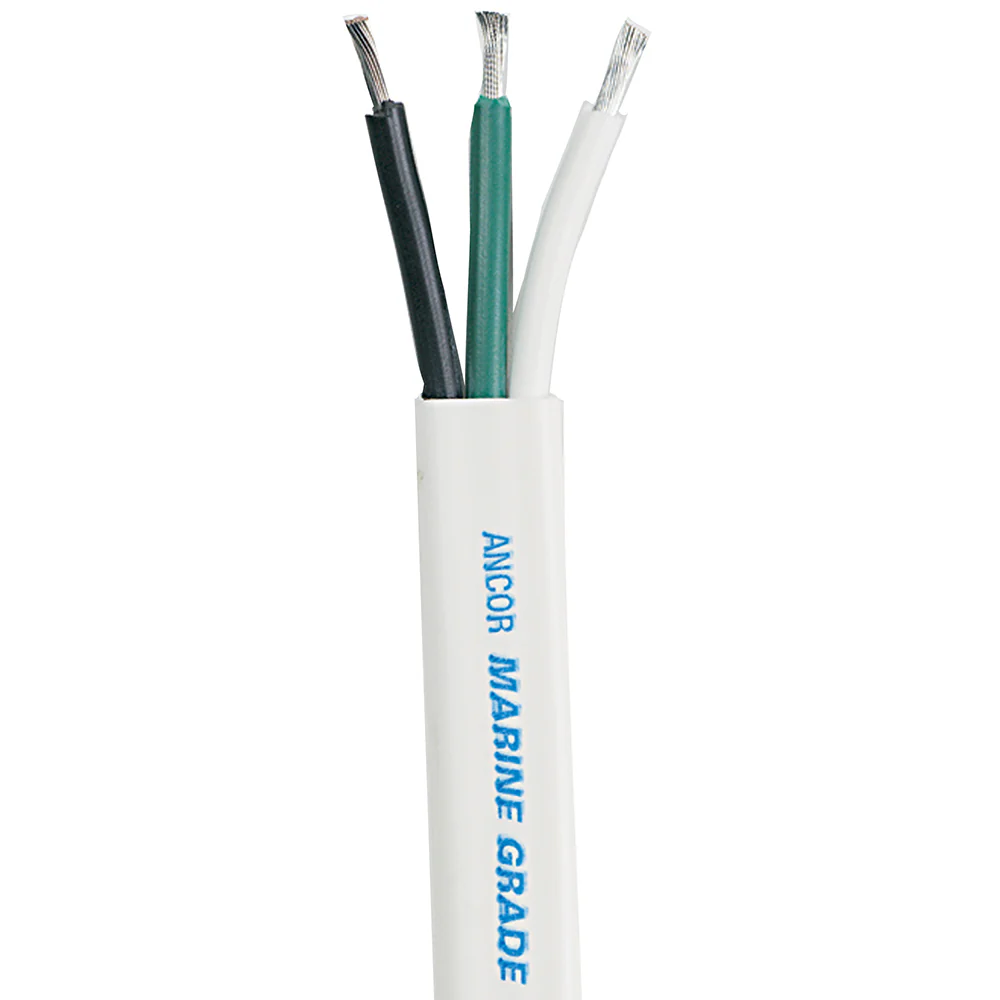

The Ancor White Triplex Cable – 14/3 AWG – Flat – 250' is a marine-grade cable designed for reliable DC power distribution in boats, RVs, and industrial applications. It features three tinned copper conductors (black, green, white) encased in a durable flat white jacket. With ultra-flexible Class K stranding and premium vinyl insulation, this cable resists corrosion, chemicals, UV exposure, vibration, and flexing, ensuring safe and long-lasting performance in demanding environments.
Features:
- Ancor Triplex Cable is made to surpass the highest UL Boat Cable standards with ultra flexible (Type 3/Class K) stranding to resist fatigue due to vibration and flexing.
- Outer jacket is made for easy removal and provides the best abrasion resistance available
- Ancors proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600 volts, 105°C dry and 75°C wet, and is resistant to heat and abrasion.
- Features three Marine Grade™ primary conductors (white, black and green) in a white common jacket.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Specifications
Ancor White Triplex Cable - 14/3 AWG - Flat - 250' [131525] Product Specifications
| Specification | Details |
|---|---|
| Cable Type | Flat Triplex Cable |
| Conductor Gauge | 14/3 AWG (3 x 2.08 mm²) |
| Length | 250 feet |
| Conductor Colors | Black, Green, White |
| Jacket Color | White |
| Voltage Rating | 600 V AC/DC |
| Temperature Rating | 105°C dry / 75°C wet |
| Insulation | Premium vinyl; resists salt water, battery acid, oil, gasoline, UV exposure |
| Stranding | Ultra-flexible (Type 3 / Class K) tinned copper; resists vibration and flexing fatigue |
| Certifications / Standards | Exceeds UL 1426; meets ABYC and US Coast Guard Charter Boat (CFR Title 46) standards |
| Box Dimensions | 11" H Ă— 11" W Ă— 11" L |
| Weight | 23.5 lbs |
| UPC | 091887102147 |
Product Manual
N/A
Product Warranty
Ancor Product Warranty
Ancor warrants its products to be free from defects in materials or workmanship for a period of 36 months. The warranty period begins on the date the product is delivered.
The warranty is granted to the end-user and applies to products which are purchased, installed, and used for the purposes for which they are originally designed. This warranty covers defects arising under normal use and does not cover malfunctions or failures resulting from misuse, abuse, neglect, improper installation, or incorrect maintenance.
During the warranty period, Ancor will repair or replace, at no charge, a product that is defective in materials or workmanship. Ancor reserves the right to either repair or replace a defective component at its discretion and reserves the right to substitute an equivalent product under the terms of this warranty.
