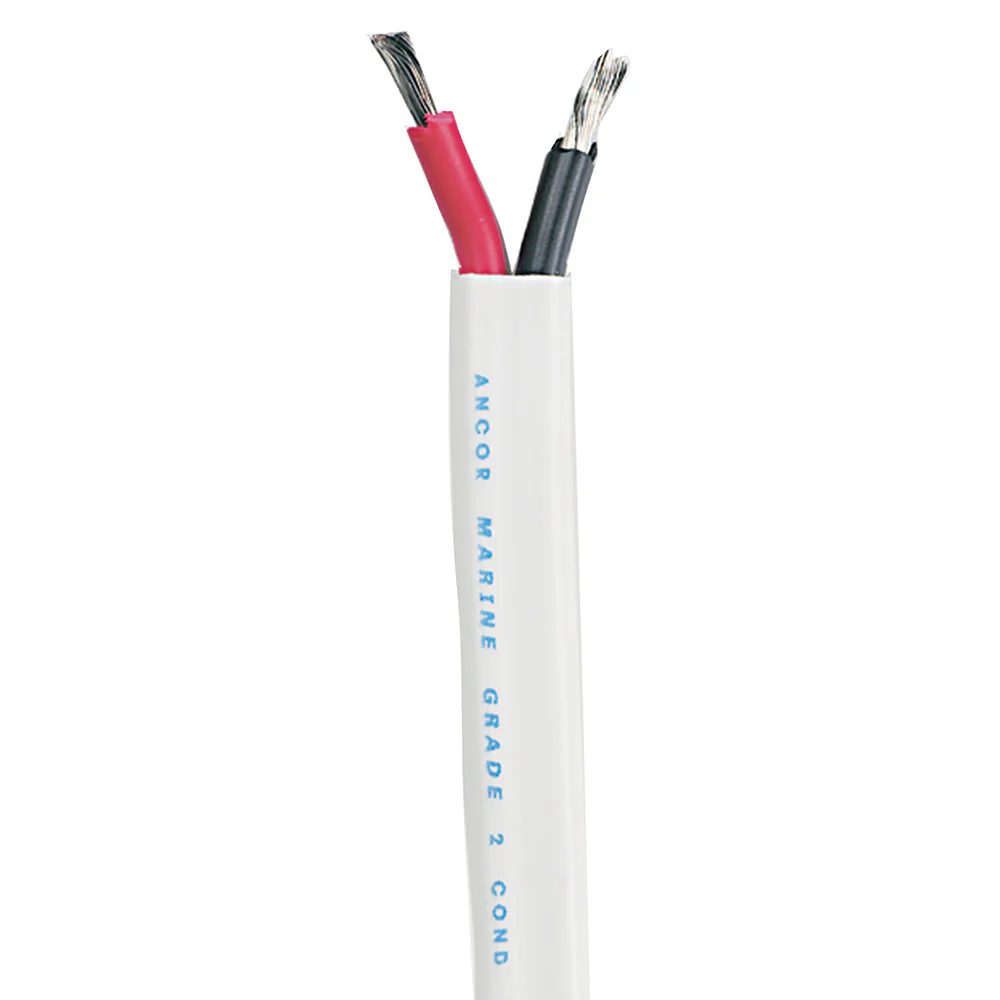

Ancor Standard Duplex Cable - Flat 12/2 AWG - 2 x 3mm Red/Black - 250' [121325]
Ancor Standard Duplex Cable - Flat 12/2 AWG - 2 x 3mm Red/Black - 250' [121325]
Description
Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600 Volts, 105°C dry and 75°C wet, stays flexible even in extreme cold (-40°F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Specifications
Ancor Standard Duplex Cable - Flat 12/2 AWG - 2 x 3mm Red/Black - 250' [121325] Product Specifications
| Specification | Details |
|---|---|
| Model | 121325 |
| Cable Type | Duplex Cable (Flat) |
| Gauge / Conductors | 12 AWG (3mm²) x 2 |
| Conductor Material | Tinned Copper |
| Insulation | Flame-retardant, UV-inhibited, rated for 600V and 105°C dry, 75°C wet |
| Jacket Color | White (with Red and Black conductors) |
| Length (Feet) | 250' (76.2 meters) |
| Box Dimensions | 5" H x 11" W x 11" L |
| Weight | 19.6 lbs (8.9 kg) |
| UPC | 091887101454 |
| Applications | Marine and automotive battery connections, high-current circuits |
| Compliance | UL 1426, ABYC, USCG CFR Title 46 |
Product Manual
N/A
Product Warranty
Ancor Product Warranty
Ancor warrants its products to be free from defects in materials or workmanship for a period of 36 months. The warranty period begins on the date the product is delivered.
The warranty is granted to the end-user and applies to products which are purchased, installed, and used for the purposes for which they are originally designed. This warranty covers defects arising under normal use and does not cover malfunctions or failures resulting from misuse, abuse, neglect, improper installation, or incorrect maintenance.
During the warranty period, Ancor will repair or replace, at no charge, a product that is defective in materials or workmanship. Ancor reserves the right to either repair or replace a defective component at its discretion and reserves the right to substitute an equivalent product under the terms of this warranty.
Product FAQs
N/A
Product Information
Product Information
Shipping & Returns
Shipping & Returns
