Ancor Safety Duplex Cable - 16/2 AWG - Red/Yellow - Flat - 250' [124725]
Ancor Safety Duplex Cable - 16/2 AWG - Red/Yellow - Flat - 250' [124725]
Description

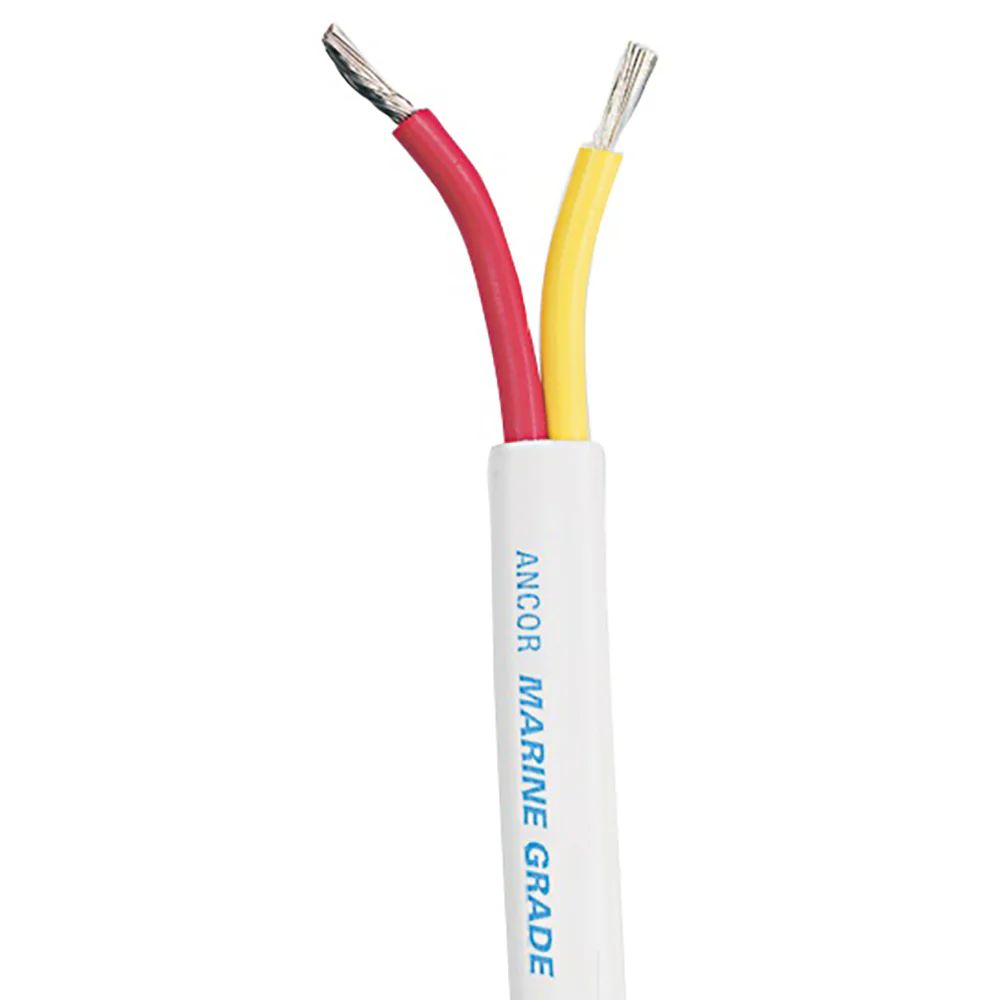

Ancor safety duplex cable features red and yellow Marine Grade primary conductors (correctly color-coded to ABYC standards) in a white commonjacket that is made for easy removal while providing the best abrasion resistance available. These cables exceed UL 1426 standards and are made from the highest quality ultra flexible (Type 3/Class K) tinned copper stranding that provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing. The premium vinyl insulation is rated at 600V, 105°C dry and 75°C wet, stays flexible even in extreme cold (-40°F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Specifications
Ancor Safety Duplex Cable - 16/2 AWG - Red/Yellow - Flat - 250' [124725] Product Specifications
| Specification | Details |
|---|---|
| Model | 124725 |
| Cable Type | Safety Duplex Cable |
| Gauge / Conductors | 16/2 AWG (2 conductors) |
| Conductor Material | Tinned Copper |
| Insulation | Premium Vinyl, 600V, 105°C dry / 75°C wet |
| Temperature Flexibility | Flexible down to -40°F (-40°C) |
| Environmental Resistance | Resists saltwater, battery acid, oil, gasoline, heat, abrasion, UV |
| Compliance | Exceeds UL 1426, ABYC, USCG CFR Title 46 |
| Color Code | Red / Yellow |
| Length (Feet) | 250' |
| Box Dimensions | 6" H x 11" W x 11" L |
| Weight | 12 lbs (5.4 kg) |
| UPC | 091887806021 |
| Applications | Safety circuits, emergency systems, grounding, automotive and marine wiring |
| Features | High flexibility, corrosion-resistant, durable in harsh environments |
Product Manual
N/A
Product Warranty
Ancor Product Warranty
Ancor warrants its products to be free from defects in materials or workmanship for a period of 36 months. The warranty period begins on the date the product is delivered.
The warranty is granted to the end-user and applies to products which are purchased, installed, and used for the purposes for which they are originally designed. This warranty covers defects arising under normal use and does not cover malfunctions or failures resulting from misuse, abuse, neglect, improper installation, or incorrect maintenance.
During the warranty period, Ancor will repair or replace, at no charge, a product that is defective in materials or workmanship. Ancor reserves the right to either repair or replace a defective component at its discretion and reserves the right to substitute an equivalent product under the terms of this warranty.
Product FAQs
N/A
Product Information
Product Information
Shipping & Returns
Shipping & Returns
