Description

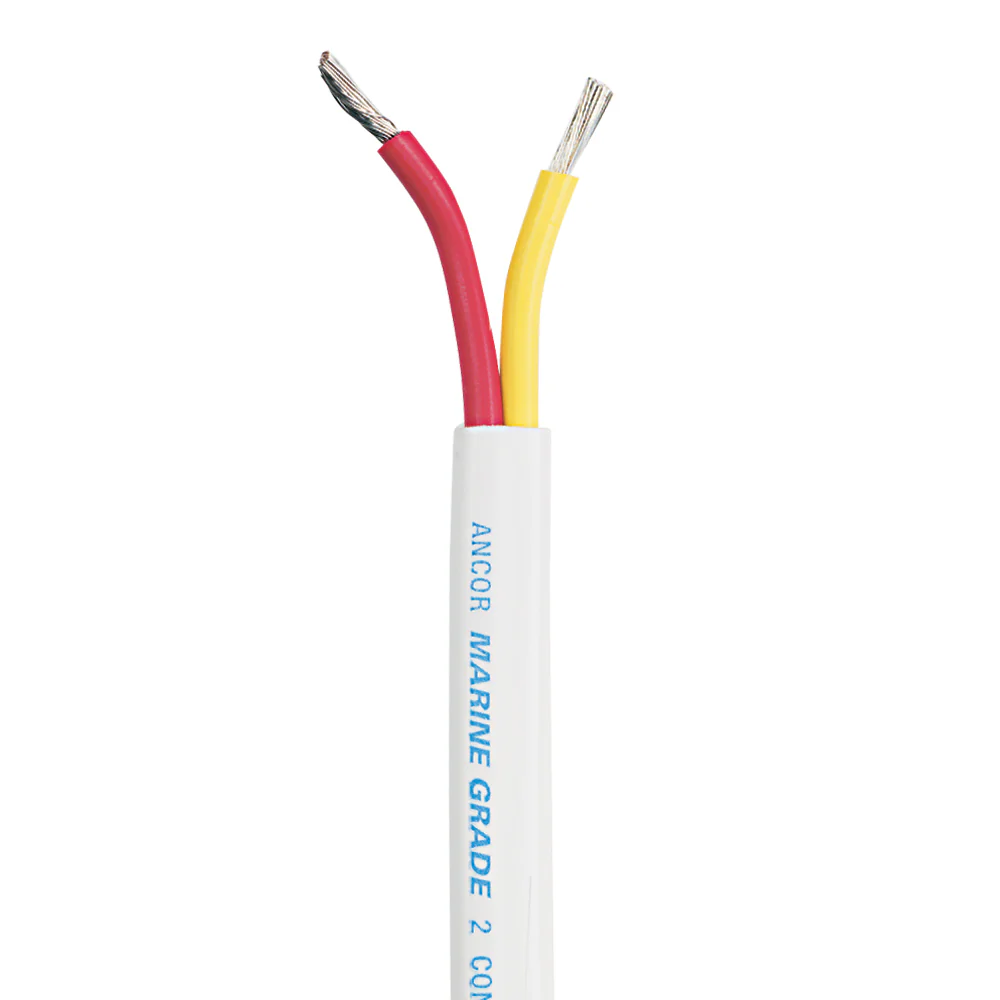

The Ancor Safety Duplex Cable 124310 is a marine-grade, 12 AWG duplex cable designed for safety and durability in DC electrical systems. Featuring red and yellow color-coded tinned copper conductors, it ensures easy identification and compliance with ABYC standards.
The cable's ultra-flexible (Type 3/Class K) stranding resists fatigue due to vibration and flexing, making it ideal for marine environments. The white PVC jacket provides abrasion resistance and UV protection, ensuring longevity even in harsh conditions.
With a voltage rating of 600 V and temperature ratings of 105°C dry and 75°C wet, this cable is suitable for various applications requiring reliable and safe electrical connections.
Features:
- ANCOR Duplex Cable is made to surpass the highest UL Boat Cable standards with ultra flexible (Type 3/Class K) stranding to resist fatigue due to vibration and flexing.
- Outer jacket is made for easy removal and provides the best abrasion resistance available
- ANCORs proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600 volts, 105°C dry and 75°C wet, and is resistant to heat and abrasion.
- Inner conductors are correctly color-coded to ABYC standards
- Features red and yellow Marine Grade primary conductors in white common jacket
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Specifications
Ancor Safety Duplex Cable - 12/2 - 100' [124310] Product Specifications
| Specification | Details |
|---|---|
| Model | Ancor Safety Duplex Cable 124310 |
| Color | Red and Yellow (ABYC standard color coding) |
| Length | 100 feet |
| Gauge | 12 AWG |
| Conductor Material | Tinned copper (for corrosion resistance) |
| Jacket Material | White PVC (abrasion-resistant and UV-stabilized) |
| Voltage Rating | 600 V |
| Temperature Rating | 105°C dry / 75°C wet |
| Stranding Type | Ultra-flexible (Type 3/Class K) |
| Box Dimensions | 5" H x 7" W x 7" L |
| Weight | Approximately 7.9 lbs |
| UPC | 091887805918 |
| Safety Note | Contains chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov. |
Product Manual
Quick Guide (pdf)
Brochure (pdf)
Product Warranty
Ancor Product Warranty
Ancor warrants its products to be free from defects in materials or workmanship for a period of 36 months. The warranty period begins on the date the product is delivered.
The warranty is granted to the end-user and applies to products which are purchased, installed, and used for the purposes for which they are originally designed. This warranty covers defects arising under normal use and does not cover malfunctions or failures resulting from misuse, abuse, neglect, improper installation, or incorrect maintenance.
During the warranty period, Ancor will repair or replace, at no charge, a product that is defective in materials or workmanship. Ancor reserves the right to either repair or replace a defective component at its discretion and reserves the right to substitute an equivalent product under the terms of this warranty.
