Ancor Ribbon Bonded Cable - 16/2 AWG - Red/Black - Flat - 250' [153125]
Ancor Ribbon Bonded Cable - 16/2 AWG - Red/Black - Flat - 250' [153125]
Description

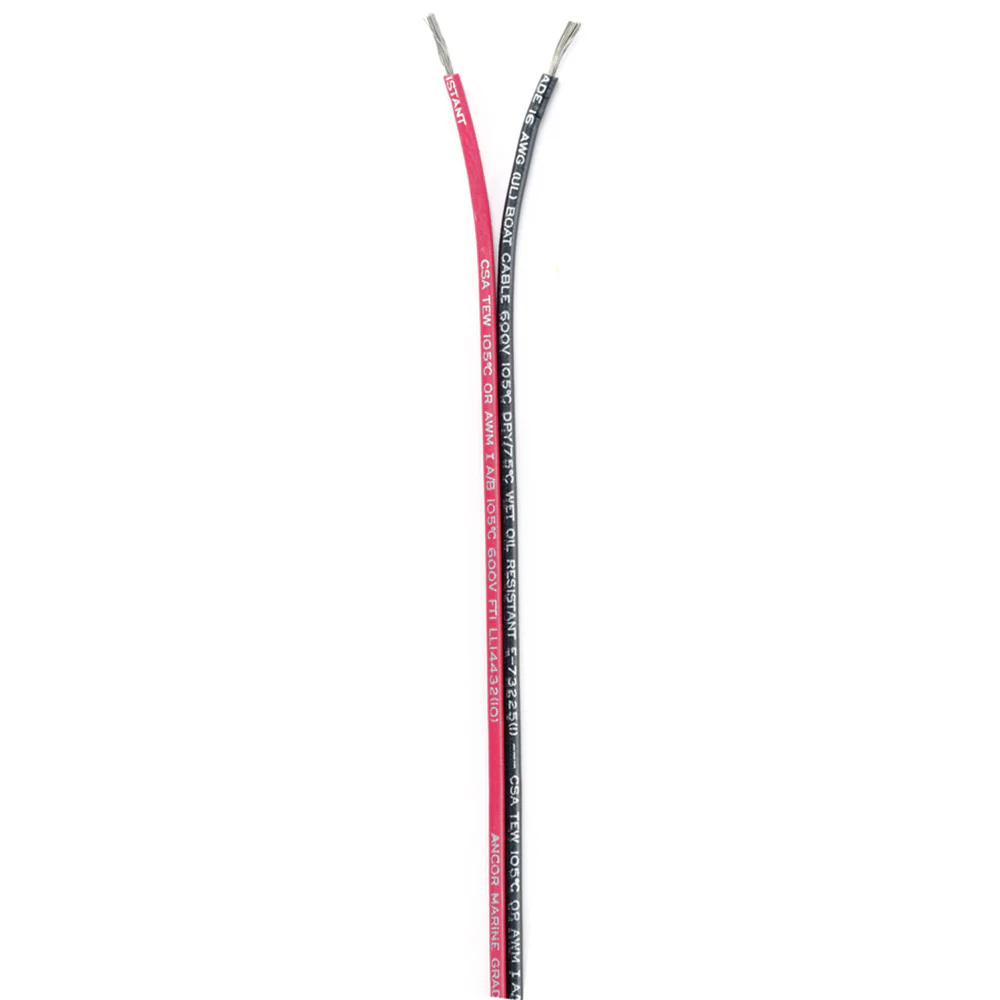

The Ancor 153125 is a 250-foot, 16/2 AWG marine-grade flat ribbon bonded cable designed for use in all-metal boats and environments with sensitive electronics. It features premium tinned bonded copper conductors, ensuring excellent corrosion resistance and durability. This cable is ideal for applications requiring a compact, flexible wiring solution, such as connecting instruments, sensors, and audio equipment in marine and automotive settings.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Specifications
Ancor Ribbon Bonded Cable - 16/2 AWG - Red/Black - Flat - 250' [153125] Product Specifications
| Specification | Details |
|---|---|
| Model | 153125 |
| Cable Type | Ribbon Bonded Cable |
| Gauge / Conductors | 16/2 AWG (2 conductors) |
| Conductor Material | Tinned Bonded Copper |
| Insulation | Premium Vinyl, 600V, 105°C dry / 75°C wet |
| Temperature Flexibility | Flexible down to -40°F (-40°C) |
| Environmental Resistance | Resists saltwater, battery acid, oil, gasoline, heat, abrasion, UV |
| Compliance | Exceeds UL 1426, ABYC, USCG CFR Title 46 |
| Color Code | Red / Black |
| Length (Feet) | 250' |
| Box Dimensions | 5" H x 7" W x 7" L |
| Weight | 6.2 lbs (2.8 kg) |
| UPC | 091887807899 |
| Applications | Marine and automotive instruments, sensors, audio equipment |
| Features | High flexibility, corrosion-resistant, durable in harsh environments |
Product Manual
N/A
Product Warranty
Ancor Product Warranty
Ancor warrants its products to be free from defects in materials or workmanship for a period of 36 months. The warranty period begins on the date the product is delivered.
The warranty is granted to the end-user and applies to products which are purchased, installed, and used for the purposes for which they are originally designed. This warranty covers defects arising under normal use and does not cover malfunctions or failures resulting from misuse, abuse, neglect, improper installation, or incorrect maintenance.
During the warranty period, Ancor will repair or replace, at no charge, a product that is defective in materials or workmanship. Ancor reserves the right to either repair or replace a defective component at its discretion and reserves the right to substitute an equivalent product under the terms of this warranty.
Product FAQs
N/A
