Ancor RGB + Speaker Cable - 18/4 +16/2 Round Jacket - 100' Spool Length [170010]
Ancor RGB + Speaker Cable - 18/4 +16/2 Round Jacket - 100' Spool Length [170010]
Description

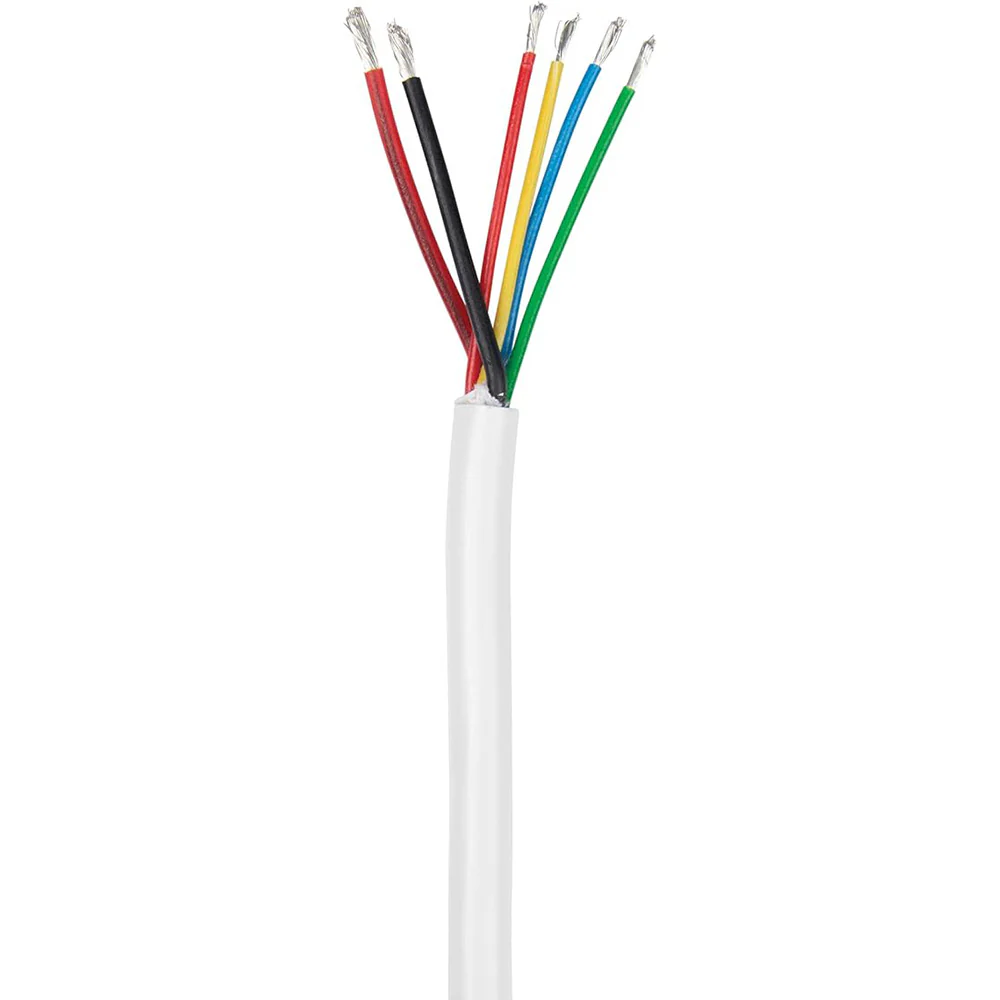

This 100 ft. spool of Ancor RGB + Speaker Cable saves users time by running only one cable for RGB lighting and speaker connections.
Features:
- Meets ABYC standards
- 18 AWG conductors for RGB lighting: Yellow, red, blue, and green
- 16 AWG conductors for speaker connections: Black and red
Product Specifications
Ancor RGB + Speaker Cable - 18/4 +16/2 Round Jacket - 100' Spool Length [170010] Product Specifications
| Specification | Details |
|---|---|
| Cable Type | RGB + Speaker Cable |
| Conductor Gauge | 18/4 + 16/2 AWG |
| Color | Yellow / Red / Blue / Green / Black |
| Length | 100 feet |
| Conductor Colors | RGB: Yellow, Red, Blue, Green; Speaker: Black, Red |
| Jacket Type | Round jacket |
| Voltage Rating | 600V |
| Temperature Rating | 105°C dry / 75°C wet |
| Flexibility | Remains flexible even in extreme cold (-40°F / -40°C) |
| Chemical Resistance | Resists salt water, battery acid, oil, gasoline, heat, abrasion, UV radiation |
| Certifications | Meets ABYC standards |
| Box Dimensions | 6"H x 11"W x 11"L |
| Weight | 10 lbs |
| Applications | Marine, automotive, RV, and industrial electrical installations |
Product Manual
Quick Guide (pdf)
Product Warranty
Ancor Product Warranty
Ancor warrants its products to be free from defects in materials or workmanship for a period of 36 months. The warranty period begins on the date the product is delivered.
The warranty is granted to the end-user and applies to products which are purchased, installed, and used for the purposes for which they are originally designed. This warranty covers defects arising under normal use and does not cover malfunctions or failures resulting from misuse, abuse, neglect, improper installation, or incorrect maintenance.
During the warranty period, Ancor will repair or replace, at no charge, a product that is defective in materials or workmanship. Ancor reserves the right to either repair or replace a defective component at its discretion and reserves the right to substitute an equivalent product under the terms of this warranty.
Product FAQs
N/A
Original: $170.99
-65%$170.99
$59.85Product Information
