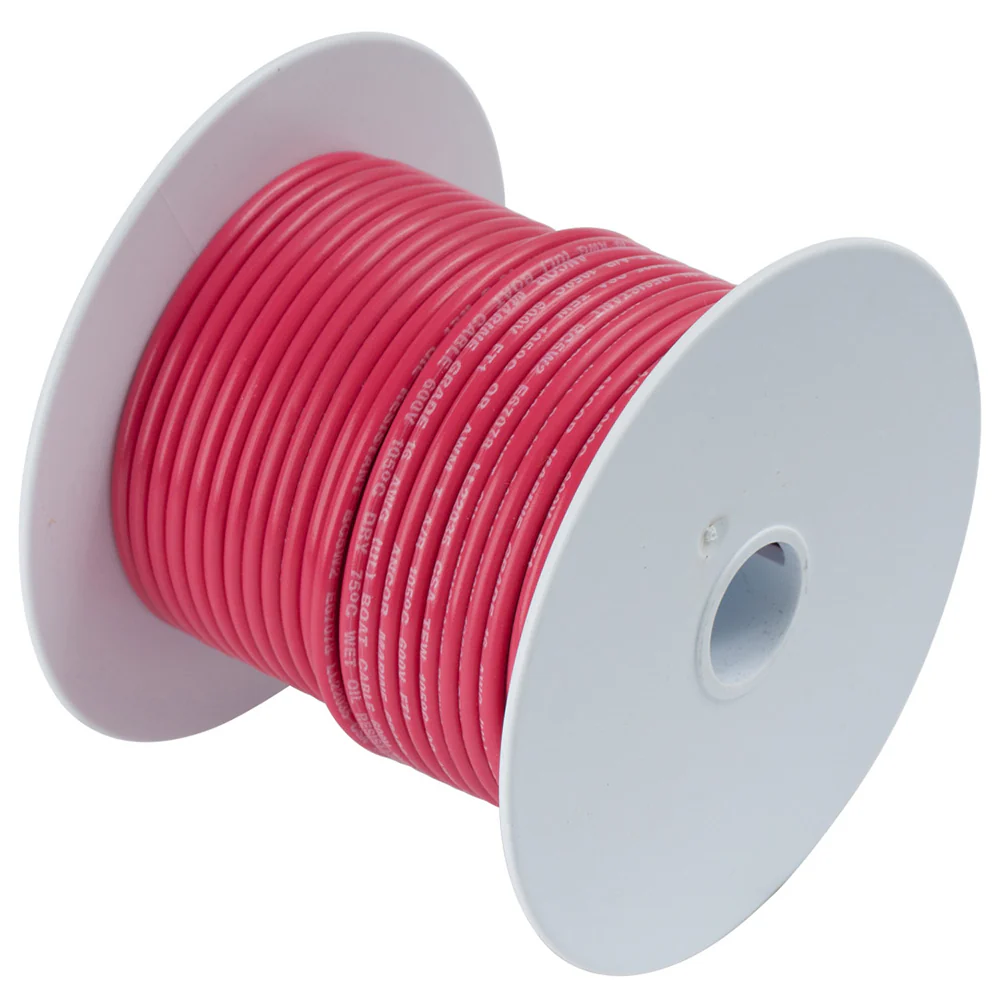

Ancor Red 3/0 AWG Battery Cable - 50' [118505]
Ancor Red 3/0 AWG Battery Cable - 50' [118505]
Description
The Ancor Red 3/0 AWG Battery Cable is a heavy-duty, tinned copper cable engineered for marine, RV, and automotive use. Its premium vinyl insulation and ultra-flexible Type 3/Class K construction provide superior resistance to salt water, battery acid, oil, gasoline, heat, abrasion, and UV exposure. Rated for 600 V and extreme temperatures, this 50-foot cable ensures reliable performance in demanding environments.
Features:
- ANCOR Marine Grade wire is manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis. Ultra flexible (Type 3) stranding resists fatigue due to vibration and flexing.
- ANCORs proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600V, 105°C dry and 75°C wet, and is resistant to heat and abrasion.
- Exceeds all UL 1426, US Coast Guard Charter boat (CFR Title 46) and ABYC standards
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Specifications
Ancor Red 3/0 AWG Battery Cable - 50' [118505] Product Specifications
| Specification | Details |
|---|---|
| Gauge / Wire Gauge | 3/0 AWG (85 mm²) |
| Length | 50 feet |
| Color | Red |
| Wire Type | Round |
| Conductor Material | Tinned Copper |
| Insulation | Premium vinyl |
| Voltage Rating | 600 V |
| Temperature Rating | 105°C (dry), 75°C (wet) |
| Flexibility | Ultra-flexible (Type 3/Class K) – resists fatigue due to vibration and flexing |
| Chemical Resistance | Resists salt water, battery acid, oil, gasoline, heat, abrasion, and ultraviolet radiation |
| Compliance | UL 1426, ABYC standards, U.S. Coast Guard Charter Boat (CFR Title 46) |
| Box Dimensions | 10" H x 11" W x 11" L |
| Weight | 34 lbs |
Product Manual
Quick Guide (pdf)
Owner's Manual (pdf)
Product Warranty
Ancor Product Warranty
Ancor warrants its products to be free from defects in materials or workmanship for a period of 36 months. The warranty period begins on the date the product is delivered.
The warranty is granted to the end-user and applies to products which are purchased, installed, and used for the purposes for which they are originally designed. This warranty covers defects arising under normal use and does not cover malfunctions or failures resulting from misuse, abuse, neglect, improper installation, or incorrect maintenance.
During the warranty period, Ancor will repair or replace, at no charge, a product that is defective in materials or workmanship. Ancor reserves the right to either repair or replace a defective component at its discretion and reserves the right to substitute an equivalent product under the terms of this warranty.
Product FAQs
N/A
