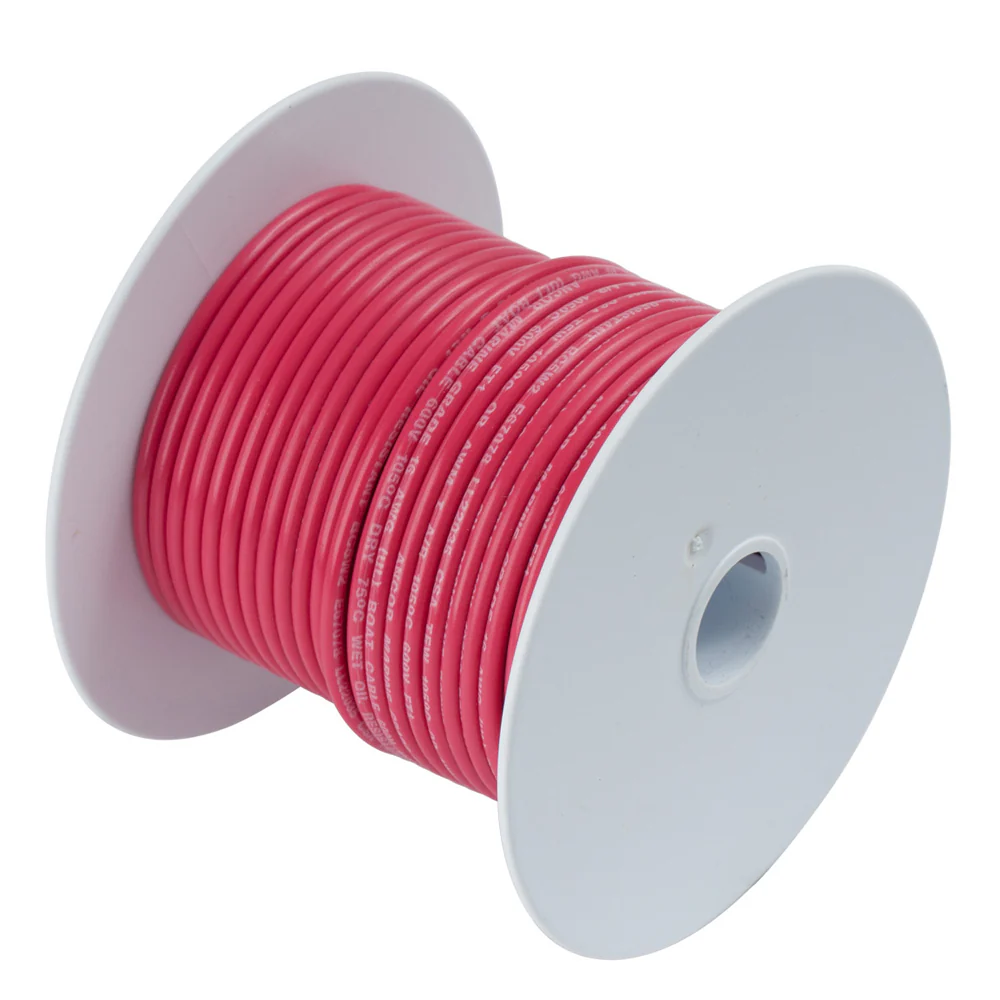

Ancor Red 10 AWG Primary Cable - 100' [108810]
Ancor Red 10 AWG Primary Cable - 100' [108810]
Description
The Ancor Red 10 AWG Primary Cable is a durable, tinned copper cable designed for marine, RV, and automotive applications. Its premium vinyl insulation and ultra-flexible Type 3/Class K construction provide excellent resistance to salt water, battery acid, oil, gasoline, heat, abrasion, and UV exposure. Rated for 600 V and extreme temperatures, this 100-foot cable ensures reliable performance in demanding environments.
Features:Â
- ANCOR Marine Grade wire is manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis. Ultra flexible (Type 3) stranding resists fatigue due to vibration and flexing
- 10 AWG /5mm², UL 1426 Tinned Boat Cable
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Specifications
Ancor Red 10 AWG Primary Cable - 100' [108810] Product Specifications
| Specification | Details |
|---|---|
| Gauge / Wire Gauge | 10 AWG (5 mm²) |
| Length | 100 feet |
| Color | Red |
| Wire Type | Round |
| Conductor Material | Tinned Copper |
| Insulation | Premium vinyl |
| Voltage Rating | 600 V |
| Temperature Rating | 105°C (dry), 75°C (wet) |
| Flexibility | Ultra-flexible (Type 3/Class K) – resists fatigue due to vibration and flexing |
| Chemical Resistance | Resists salt water, battery acid, oil, gasoline, heat, abrasion, and ultraviolet radiation |
| Compliance | UL 1426, ABYC standards, U.S. Coast Guard Charter Boat (CFR Title 46) |
| Box Dimensions | 5" H x 7" W x 7" L |
| Weight | 4.5 lbs |
| UPC | 091887108668 |
Product Manual
N/A
Product Warranty
Ancor Product Warranty
Ancor warrants its products to be free from defects in materials or workmanship for a period of 36 months. The warranty period begins on the date the product is delivered.
The warranty is granted to the end-user and applies to products which are purchased, installed, and used for the purposes for which they are originally designed. This warranty covers defects arising under normal use and does not cover malfunctions or failures resulting from misuse, abuse, neglect, improper installation, or incorrect maintenance.
During the warranty period, Ancor will repair or replace, at no charge, a product that is defective in materials or workmanship. Ancor reserves the right to either repair or replace a defective component at its discretion and reserves the right to substitute an equivalent product under the terms of this warranty.
Product FAQs
N/A
Original: $56.99
-65%$56.99
$19.95Product Information
