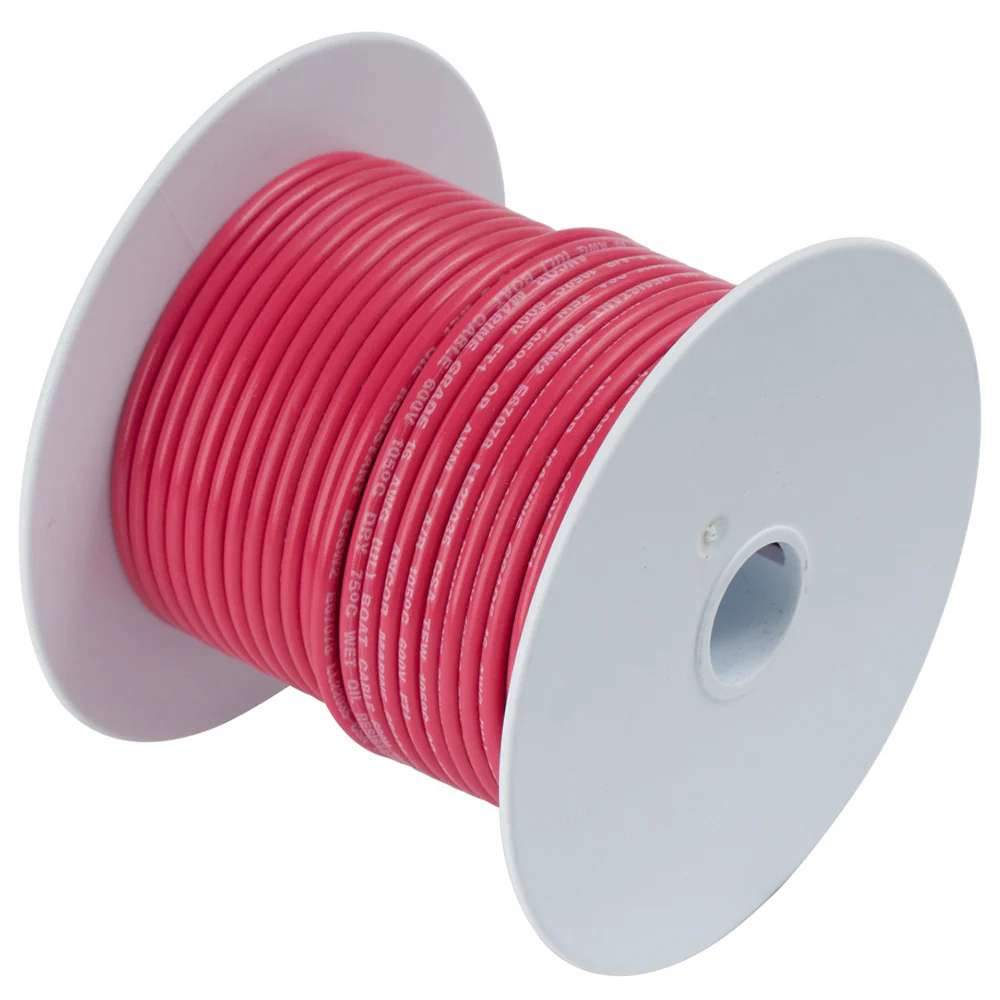

Ancor Red 1 AWG Battery Cable - 100' [115510]
Ancor Red 1 AWG Battery Cable - 100' [115510]
Description
The Ancor Red 1 AWG Battery Cable is a marine-grade, heavy-duty cable ideal for boats, RVs, and other demanding electrical systems. Constructed with tinned copper and ultra-flexible Type 3 stranding, it resists corrosion, vibration, and fatigue. Its premium vinyl insulation withstands extreme temperatures, salt water, battery acid, oil, gasoline, and UV exposure, ensuring reliable power delivery over its full 100-foot length.
Features:
- ANCOR Marine Grade wire is manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis. Ultra flexible (Type 3) stranding resists fatigue due to vibration and flexing.
- ANCORs proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600V, 105°C dry and 75°C wet, and is resistant to heat and abrasion.
- Exceeds all UL 1426, US Coast Guard Charter boat (CFR Title 46) and ABYC standards
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Specifications
Ancor Red 1 AWG Battery Cable - 100' [115510] Product Specifications
| Specification | Details |
|---|---|
| Color | Red |
| Length | 100 feet |
| Gauge | 1 AWG (40 mm²) |
| Voltage Rating | 600V |
| Insulation | Premium vinyl; flexible in extreme cold; resists salt water, battery acid, oil, gasoline, UV radiation |
| Temperature Rating | 105°C dry / 75°C wet |
| Conductor Material | Tinned copper |
| Stranding | Ultra-flexible Type 3, resists fatigue from vibration and flexing |
| Certifications | UL 1426, ABYC, USCG Title 46 CFR 183.420 |
| Box Dimensions | 10" H x 10" W x 11" L |
| Weight | Approximately 35.4 lbs |
| UPC | 091887115062 |
Product Manual
Owner's Manual (pdf)
Product Warranty
Ancor Product Warranty
Ancor warrants its products to be free from defects in materials or workmanship for a period of 36 months. The warranty period begins on the date the product is delivered.
The warranty is granted to the end-user and applies to products which are purchased, installed, and used for the purposes for which they are originally designed. This warranty covers defects arising under normal use and does not cover malfunctions or failures resulting from misuse, abuse, neglect, improper installation, or incorrect maintenance.
During the warranty period, Ancor will repair or replace, at no charge, a product that is defective in materials or workmanship. Ancor reserves the right to either repair or replace a defective component at its discretion and reserves the right to substitute an equivalent product under the terms of this warranty.
Product FAQs
N/A
