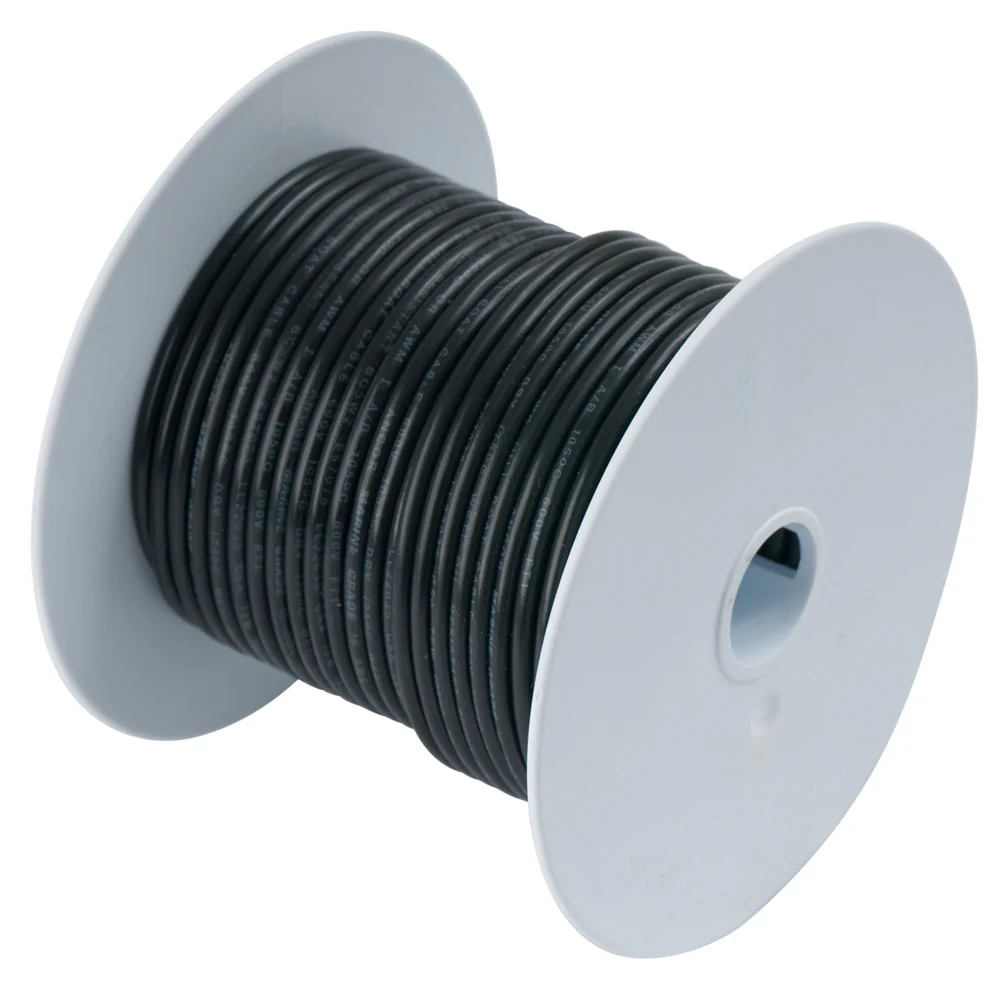

Ancor Black 18 AWG Tinned Copper Wire - 100' [100010]
Ancor Black 18 AWG Tinned Copper Wire - 100' [100010]
Description
Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600V, 105°C dry and 75°C wet, stays flexible even in extreme cold (-40°F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.
- Wire Gauge: 18 AWG
- Nominal O.D. (inches): 7/64
- Nominal O.D. (mm): 3
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Specifications
Ancor Black 18 AWG Tinned Copper Wire - 100' [100010] Product Specifications
| Attribute | Details |
|---|---|
| Model / Part Number | Ancor 100010 |
| Color | Black |
| Gauge | 18 AWG |
| Length | 100 feet |
| Conductor Material | Tinned copper |
| Insulation Material | Premium vinyl (PVC) |
| Voltage Rating | 600 V |
| Temperature Rating (Dry) | 105°C |
| Temperature Rating (Wet) | 75°C |
| Cold / Flexibility Rating | Flexible down to −40°F (−40°C) |
| Nominal Outer Diameter | ~ 7/64 in (~ 3 mm) |
| Resistance / Durability Features | Resists salt water, battery acid, oil, gasoline, heat, abrasion, UV radiation |
| Stranding | Ultra-flexible (Type 3) tinned copper stranding |
| Compliance / Certifications | Exceeds UL 1426; meets ABYC; meets US Coast Guard CFR Title 46 |
| Box / Spool Dimensions | 3″ H × 3″ W × 4″ L |
| Weight | ~ 1 lb |
| UPC | 091887200171 |
Product Manual
N/A
Product Warranty
Ancor Product Warranty
Ancor warrants its products to be free from defects in materials or workmanship for a period of 36 months. The warranty period begins on the date the product is delivered.
The warranty is granted to the end-user and applies to products which are purchased, installed, and used for the purposes for which they are originally designed. This warranty covers defects arising under normal use and does not cover malfunctions or failures resulting from misuse, abuse, neglect, improper installation, or incorrect maintenance.
During the warranty period, Ancor will repair or replace, at no charge, a product that is defective in materials or workmanship. Ancor reserves the right to either repair or replace a defective component at its discretion and reserves the right to substitute an equivalent product under the terms of this warranty.
Product FAQs
N/A
