Ancor Bilge Pump Cable - 16/3 STOW-A Jacket - 3x1mm - 100' [156610]
Ancor Bilge Pump Cable - 16/3 STOW-A Jacket - 3x1mm - 100' [156610]
Description

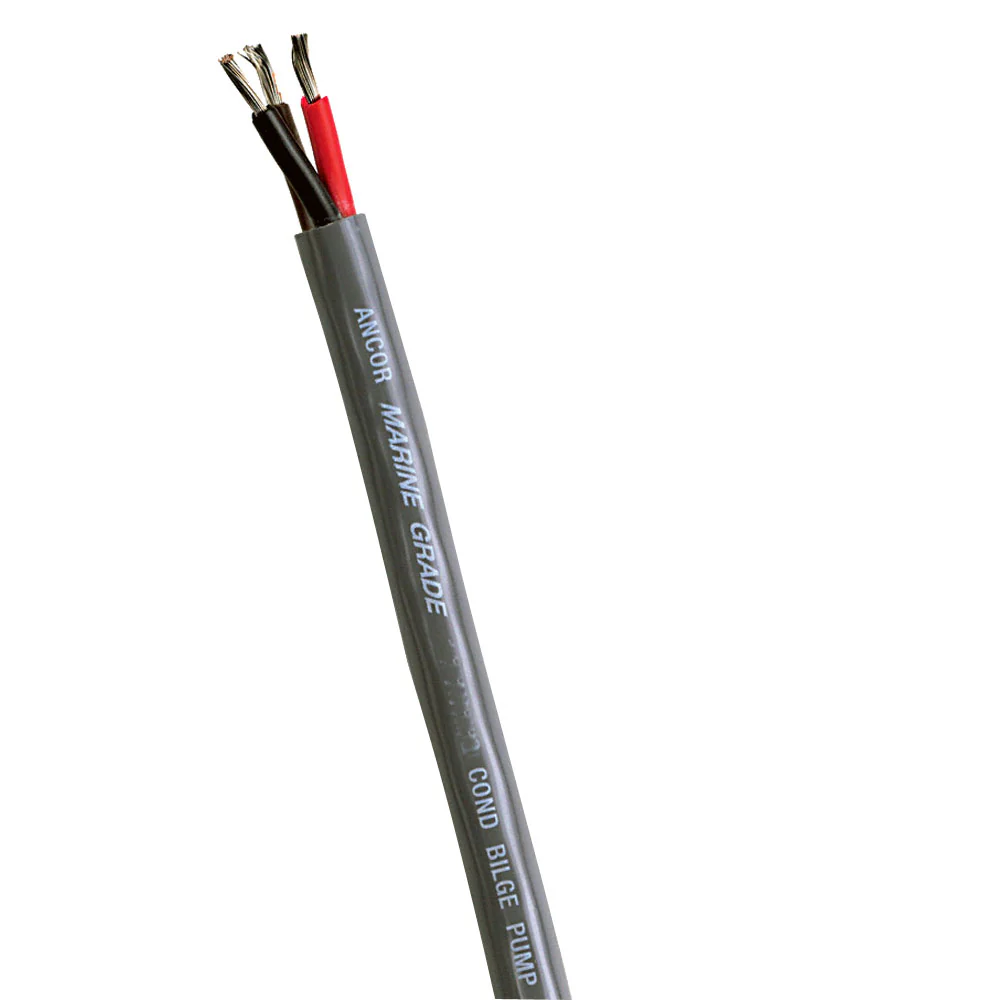

The Ancor Bilge Pump Cable is a marine-grade, ultra-flexible cable designed for bilge pump installations and other critical onboard systems. With a 16 AWG (3x1mm²) configuration and a 100-foot length, it offers durability and reliability in harsh marine environments.
Features:
- UL1426 Premium Tinned Copper Boat Cable
- ANCOR Marine Grade wire is manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis. Ultra flexible (Type 3) stranding resists fatigue due to vibration and flexing
- Bilge Pump Cable features grey insulation with black, brown and red conductors specifically for bilge pumps. Oil resistant
- STOW - A - Water resistant jacket
- Exceeds all UL 1426, US Coast Guard Charterboat (CFR Title 46) and ABYC standards
- Made to surpass the highest UL Boat Cable standards with ultra flexible (Type 3/Class K) stranding to resist fatigue due to vibration and flexing
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Specifications
Ancor Bilge Pump Cable - 16/3 STOW-A Jacket - 3x1mm - 100' [156610] Product Specifications
| Specification | Details |
|---|---|
| Model | Ancor Bilge Pump Cable 156610 |
| Length | 100 feet |
| Gauge | 16 AWG (3 conductors x 1mm² each) |
| Conductor Colors | Black, Brown, Red |
| Insulation Color | Grey |
| Jacket Type | STOW-A (SJTOW-A) |
| Conductor Material | Tinned copper (for corrosion resistance) |
| Voltage Rating | 600 V |
| Temperature Rating | 105°C dry / 75°C wet |
| Stranding Type | Ultra-flexible (Type 3/Class K) |
| Oil Resistance | Yes |
| Water Resistance | Yes |
| Box Dimensions | 5" H x 11" W x 11" L |
| Weight | Approximately 9.05 lbs |
| UPC | 091887807318 |
| Safety Note | Contains chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov. |
Product Manual
N/A
Product Warranty
Ancor Product Warranty
Ancor warrants its products to be free from defects in materials or workmanship for a period of 36 months. The warranty period begins on the date the product is delivered.
The warranty is granted to the end-user and applies to products which are purchased, installed, and used for the purposes for which they are originally designed. This warranty covers defects arising under normal use and does not cover malfunctions or failures resulting from misuse, abuse, neglect, improper installation, or incorrect maintenance.
During the warranty period, Ancor will repair or replace, at no charge, a product that is defective in materials or workmanship. Ancor reserves the right to either repair or replace a defective component at its discretion and reserves the right to substitute an equivalent product under the terms of this warranty.
Product FAQs
N/A
