Ancor Bilge Pump Cable - 14/3 STOW-A Jacket - 3x2mm - 100' [156410]

Ancor Bilge Pump Cable - 14/3 STOW-A Jacket - 3x2mm - 100' [156410]

Description

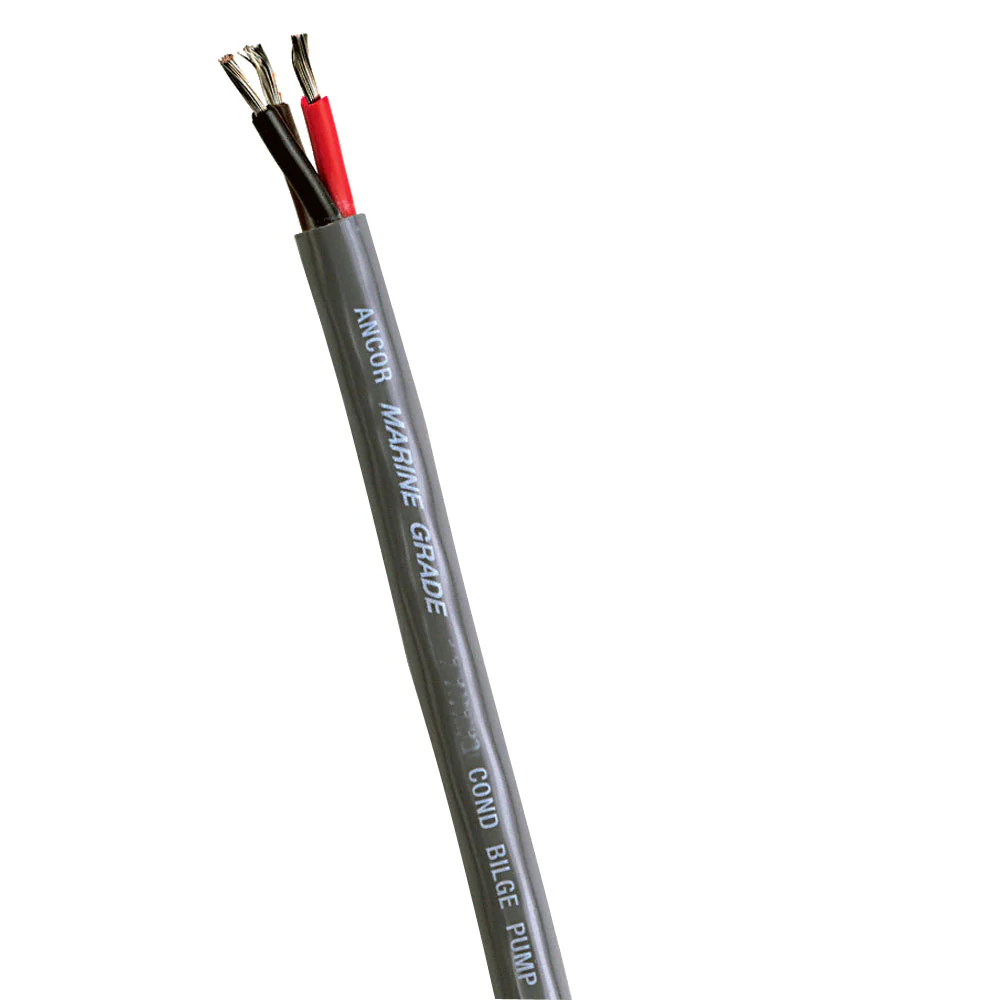

The Ancor Bilge Pump Cable 156410 is a high-quality, marine-grade cable designed specifically for bilge pump installations. It features three tinned copper conductors—black, brown, and red—each with a 2mm² cross-sectional area, offering excellent corrosion resistance and conductivity.

The cable is constructed with ultra-flexible (Type 3/Class K) stranding, which resists fatigue due to vibration and flexing, making it ideal for marine environments. The gray STOW-A (SJTOW-A) jacket provides oil and water resistance, ensuring durability even in harsh conditions.

With a voltage rating of 600 V and temperature ratings of 105°C dry and 75°C wet, this cable is suitable for various marine applications requiring reliable and safe electrical connections.

Features:

• UL1426 Premium Tinned Copper Boat Cable

• ANCOR Marine Grade wire is manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis. Ultra flexible (Type 3) stranding resists fatigue due to vibration and flexing

• Bilge Pump Cable features grey insulation with black, brown and red conductors specifically for bilge pumps. Oil resistant

• ANCOR's proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600V, 105° C dry and 75° C wet, and is resistant to heat and abrasion

• STOW - A - Water resistant jacket

• Exceeds all UL 1426, US Coast Guard Charterboat (CFR Title 46) and ABYC standards

• Made to surpass the highest UL Boat Cable standards with ultra flexible (Type 3/Class K) stranding to resist fatigue due to vibration and flexing

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Product Specifications

Ancor Bilge Pump Cable - 14/3 STOW-A Jacket - 3x2mm - 100' [156410] Product Specifications

Specification	Details
Model	Ancor Bilge Pump Cable 156410
Length	100 feet
Gauge	14 AWG (3 conductors x 2mm² each)
Conductor Colors	Black, Brown, Red
Insulation Color	Gray
Jacket Type	STOW-A (SJTOW-A)
Conductor Material	Tinned copper (for corrosion resistance)
Voltage Rating	600 V
Temperature Rating	105°C dry / 75°C wet
Stranding Type	Ultra-flexible (Type 3/Class K)
Oil Resistance	Yes
Water Resistance	Yes
Box Dimensions	5" H x 11" W x 11" L
Weight	Approximately 11.45 lbs
UPC	091887807264
Safety Note	Contains chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Product Manual

N/A

Product Warranty

Ancor Product Warranty

Ancor warrants its products to be free from defects in materials or workmanship for a period of 36 months. The warranty period begins on the date the product is delivered.

The warranty is granted to the end-user and applies to products which are purchased, installed, and used for the purposes for which they are originally designed. This warranty covers defects arising under normal use and does not cover malfunctions or failures resulting from misuse, abuse, neglect, improper installation, or incorrect maintenance.

During the warranty period, Ancor will repair or replace, at no charge, a product that is defective in materials or workmanship. Ancor reserves the right to either repair or replace a defective component at its discretion and reserves the right to substitute an equivalent product under the terms of this warranty.

Product FAQs

N/A
