Ancor 16/2 Safety Duplex Cable - 500' [124750]
Ancor 16/2 Safety Duplex Cable - 500' [124750]
Description

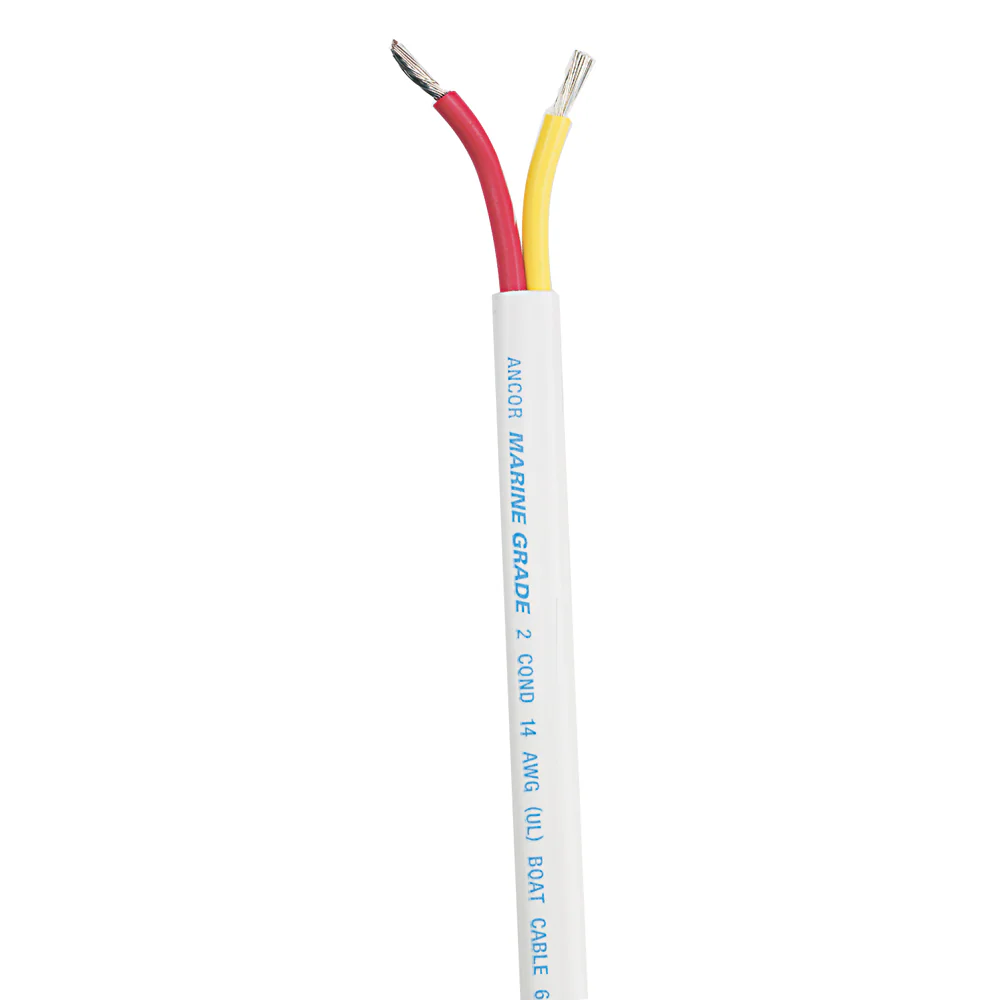

Features red and yellow Marine Grade primary conductors in a white common jacket.
ANCOR recommends yellow wire as DC negative because black is the standard color for AC hot. There have been many cases of people working on their DC systems who have inadvertently cut the live AC wire. Because of the wide spread use of inverters, power generators and shore power connections, even today?s smallest boats pose a risk of inadvertently cutting into AC wires when working on DC systems.
ANCOR Duplex Cables are made to surpass the highest UL Boat Cable standards with ultra flexible (Type 3/Class K) stranding to resist fatigue due to
vibration and flexing
Features:
- Outer jacket is made for easy removal and provides the best abrasion resistance available
- ANCOR's proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, batteryacid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600V, 105° C dry and 75 Cwet, and is resistant to heat and abrasion
- Inner conductors are correctly color-coded to ABYC standards
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Specifications
Ancor 16/2 Safety Duplex Cable - 500' [124750] Product Specifications
| Specification | Details |
|---|---|
| Gauge | 16/2 AWG (2 x 1 mm²) |
| Length | 500 feet |
| Voltage Rating | 600V |
| Insulation | Premium vinyl; stays flexible even in extreme cold; resists salt water, battery acid, oil, gasoline, heat, abrasion, and UV radiation |
| Temperature Rating | 105°C dry / 75°C wet |
| Conductor Material | Tinned copper |
| Stranding | Ultra-flexible Type 3/Class K, resists fatigue from vibration and flexing |
| Outer Jacket | White, abrasion-resistant, easy to remove |
| Color Coding | Red (positive), Yellow (negative) – per ABYC standards |
| Certifications | UL 1426, ABYC, USCG Title 46 CFR 183.420 |
| Box Dimensions | 10" H x 11" W x 11" L |
| Weight | Approximately 21.6 lbs |
Product Manual
Brochure (pdf)
Product Warranty
Ancor Product Warranty
Ancor warrants its products to be free from defects in materials or workmanship for a period of 36 months. The warranty period begins on the date the product is delivered.
The warranty is granted to the end-user and applies to products which are purchased, installed, and used for the purposes for which they are originally designed. This warranty covers defects arising under normal use and does not cover malfunctions or failures resulting from misuse, abuse, neglect, improper installation, or incorrect maintenance.
During the warranty period, Ancor will repair or replace, at no charge, a product that is defective in materials or workmanship. Ancor reserves the right to either repair or replace a defective component at its discretion and reserves the right to substitute an equivalent product under the terms of this warranty.
Product FAQs
N/A
