Aims Power Portable Solar Generator 5.04 kWh Extender Lithium Battery for AIO-5KWH4KW
Aims Power Portable Solar Generator 5.04 kWh Extender Lithium Battery for AIO-5KWH4KW
Description

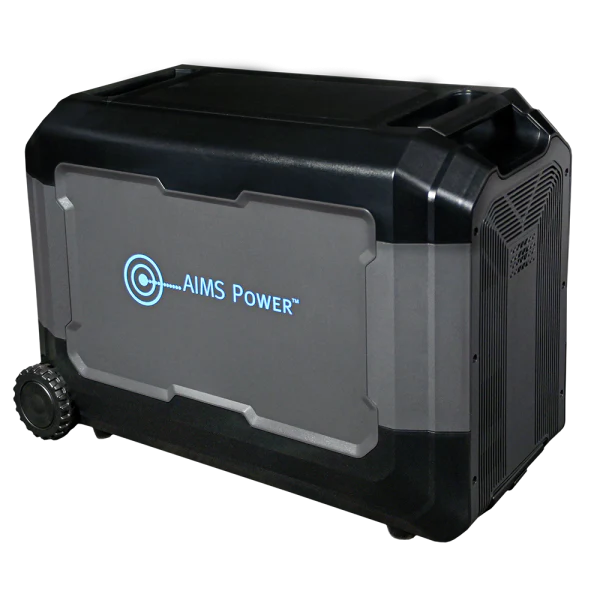

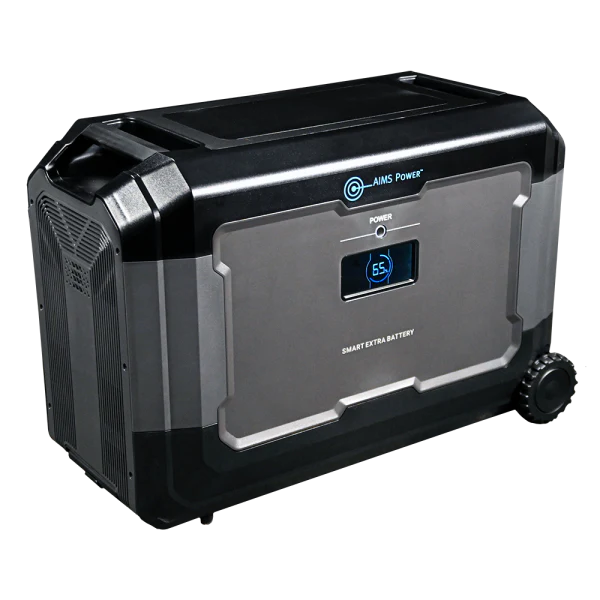

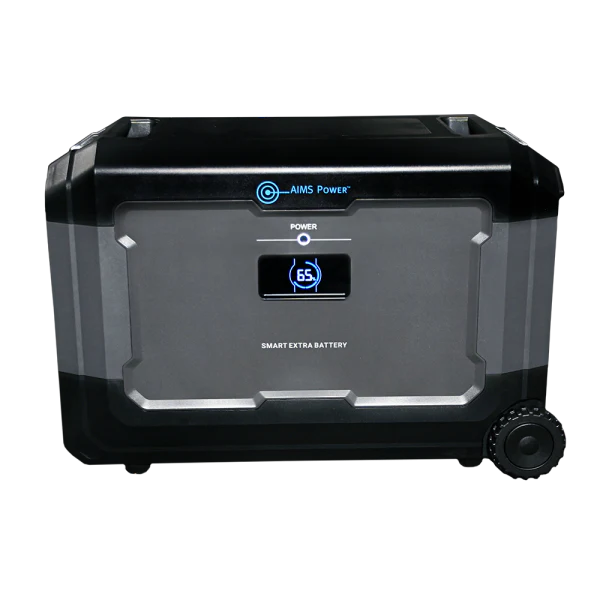

Extender Battery for AIO-5KWH4KW Solar Generator. Must be used with Solar Generator click here for details. Add up to 15 extender batteries for endless power for an unmatched total of 80,640 watt hours. That will keep a 15000 BTU AC unit powered for about 43 hours continuously. Note: AC units usually run intermittently, depending on temperature.
Backed by a lifetime battery warranty and U.S.-based tech support.
About the Portable Solar Generator…Power Where You Need It—No Gas, No Noise, No Limits
When the grid goes down or you’re miles from it, the Portable All-In-One Solar Generator from AIMS Power keeps you powered up without the noise, fumes, or fuel. Designed to deliver a large amount of power, 5040 watt-hours and let’s not forget, it is one of the largest in its class. That’s enough to run power tools on remote job sites, keep essential appliances and medical equipment powered up, and stay up and running during extended brownouts. The solar generator also recharges quickly, in about two hours using solar panels or grid power.
Designed for safety as well as performance, it features external breakers and built-in protections to safeguard your devices and give you peace of mind. Click here for details

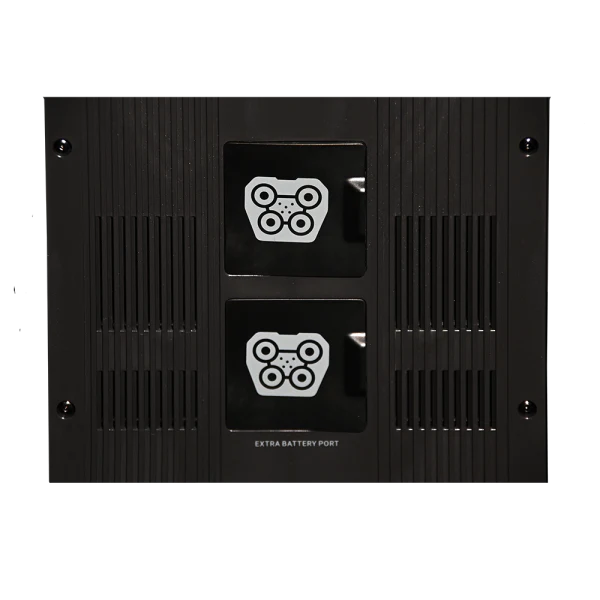

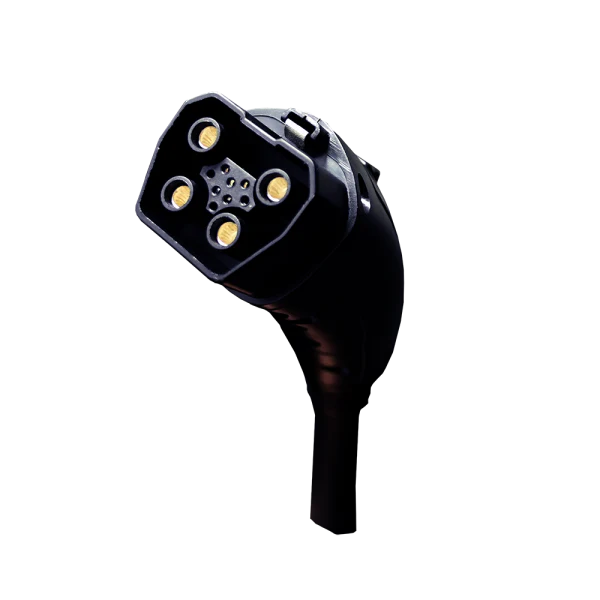

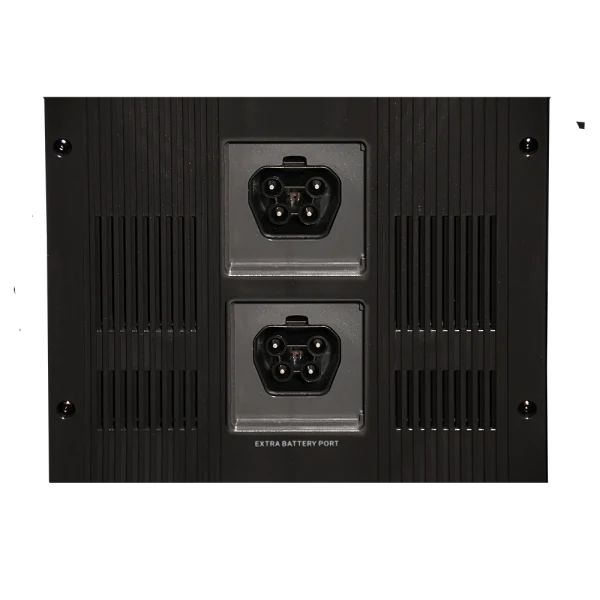

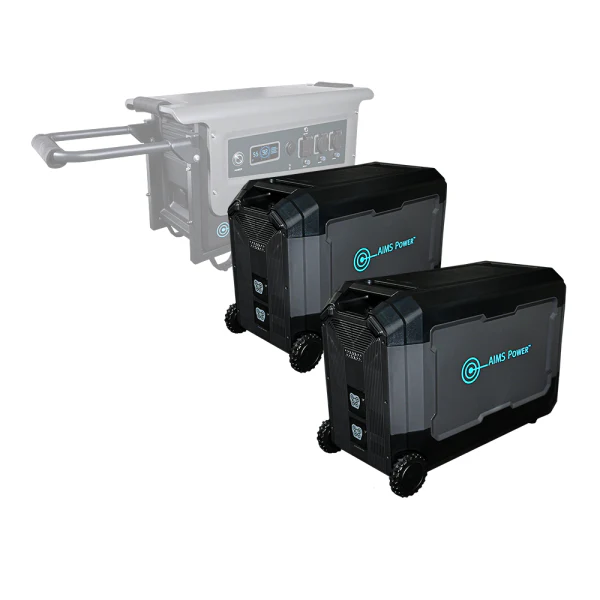

You can expand your system with up to 15 optional extender batteries—boosting your total capacity to an incredible 80,640 watt-hours.
Note: Extender batteries are compatible exclusively with the AIO-5KWH4KW model.

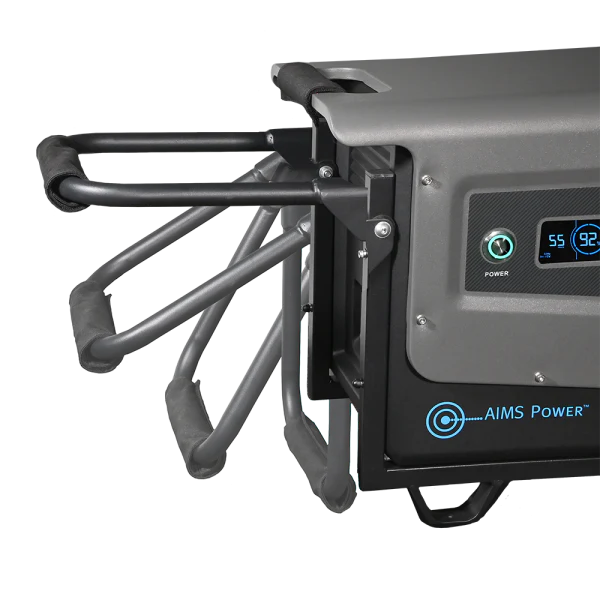

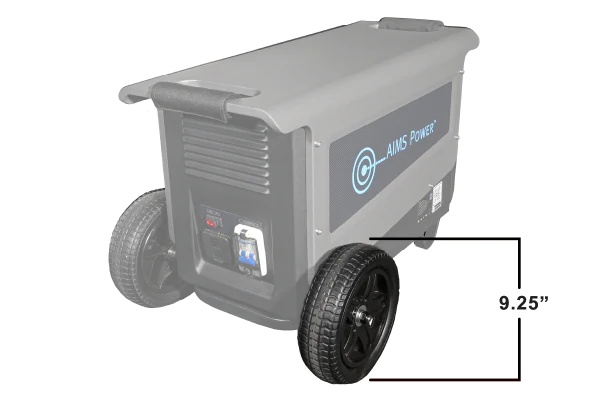

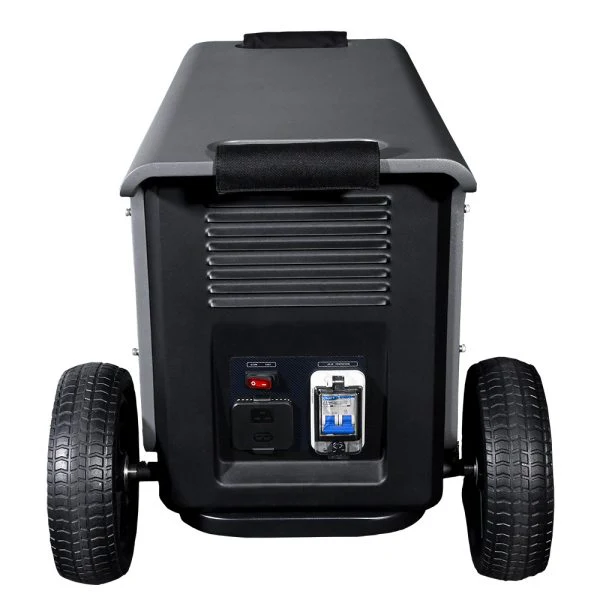

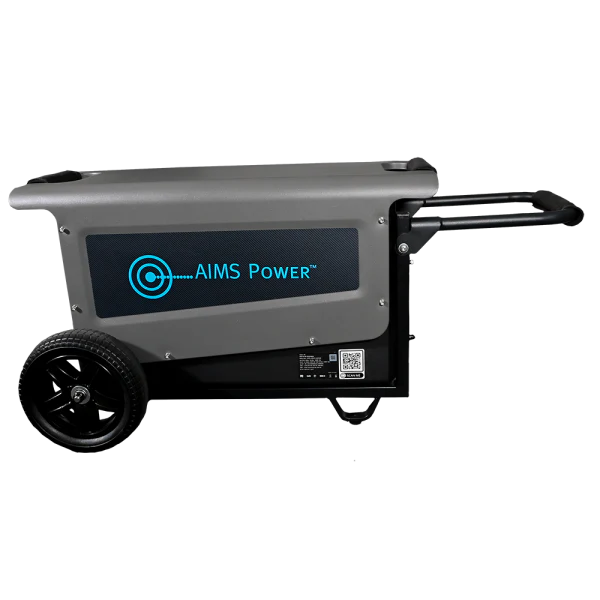

Built for mobility with a rugged handle and 9-inch wheels. The handle folds away when not in use, making storage a breeze. Outputs include USB type A and C, a 30 amp port and 2- 20 amp ports—ready for whatever you plug into it.
Designed to go wherever you do, it brings reliable energy to remote sites, campsites, and anywhere in between.
Battery Features:
• Lifetime Warranty & Tech Support – Up to 3500 cycles
• Premium LiFePo4 Battery – High-output lithium power built to last
• Recharge fully depleted battery in about 2 hours (depends on charge input method)
• Maintenance free
Product Specifications
Aims Power Portable Solar Generator 5.04 kWh Extender Lithium Battery for AIO-5KWH4KW Product Specifications
| Output | AIO-5KWH4KW | |
| AC Output Voltage | 100~120Vac | |
| Continuous Power | 4000 Watts – 33 Amps AC | |
| Peak Power | 7000 Watts – 58 Amps | |
| Frequency | 60 Hz | |
| USB-A Output | 5V/3A; 9V/1.8A; 12V/1.5A (18W Max） | |
| USB-C Output | 5V/3A; 7V/2.4A; 9V/1.8A; 12V/1.5A | |
| Input | ||
| AC Charge (wall) | 90~140Vac 16A Max 1800W Max | |
| Solar | 12~150Vdc 15A 2100W Max | |
| Automatic Transfer Switch AC | 15 AMPS – 1800 Watts | |
| Power Backup Function (EPS) | 1800 Watts Max | |
| AC Output During Charge | Yes. Bypass/AC out priority, then charge. | |
| Battery-Main & Extender | ||
| Rated Capacity | 5040 Wh | |
| Rated Voltage | 51.2 Vdc | |
| Battery Type | LiFePO4- Prismatic | |
| Charge Time | Less than 3 hours | |
| Warranty | Battery: Lifetime Tech Support & Warranty (<3500 cycles) | |
| Protections | ||
| Over Load | Yes | |
| Short Circuit | Yes | |
| Surge | Yes | |
| Over Temp | Yes | |
| Breaker | Yes-External | |
| Other | ||
| IP Grade | IP54 Water Resistant | |
| Operating Temperature | 0°C~40°C / 32°F~104°F | |
| Dimensions Main
Extender Battery |
31¼“ x 13½” x 19¾”
|
|
| Weight Main unit lbs
Extender Battery lbs |
150
|
|
| Warranty | Electronics: 3 Years | |
| COMMON DEVICE WATTAGE | *Estimates* | |
| Drill | 700W | |
| LED Contractor Lights x2 | 100W | |
| Hand Grinder | 450W | |
| HILTI TE 3000-AVR Jackhammer | 1350W | |
| HILTI DD200 Diamond Core Drill | 1800W | |
| Husqvarna K3000 | 1500W | |
| Milwaukee battery charger | 300W | |
| Refrigerator | 700-1000W | |
| Microwave | 1000-1200W | |
| Keurig Coffee Maker | 1500W | |
| 15,000 BTU AC | 1600 W | |
Product Manual
Aims Power AIO-portable Manual
Aims Power AIO Portable Compressed
Product Warranty
AIMS Power offers a one year warranty with all products. Follow the link below to register your product warranty:
https://www.aimscorp.net/product_registration.php
