Aims Power Off Grid Solar Kit | 4000W Pure Sine Inverter Charger 120/240VAC | 720 Watt Solar Panels | 800 A Batteries
Aims Power Off Grid Solar Kit | 4000W Pure Sine Inverter Charger 120/240VAC | 720 Watt Solar Panels | 800 A Batteries
Description
AIMS Power introduces the new all-in-one solar kit for all of your off grid power needs. Whether you’re supplying power to an off-grid home/cabin or looking for a back-up power source for a small business , this solar kit includes all necessary products required bundled for your convenience. The 720 watt solar kit includes an pure sine inverter charger that has a built in battery charger to recharge the batteries when 240 Vac city or generator power is available. The 4000 watt pure sine inverter charger can power 110/120 and 220/230/240 Volt appliances, electronics, tools and pumps. The panels are covered in tempered glass to protect from hazardous weather. The PV wiring is protected against UV, water, ozone, fluids, oil, salt and general weathering. The 12 Volt 200 amp AGM deep cycle batteries provide quality power. Each system comes with a wiring diagram upon purchase.
720 WATT SOLAR WITH 4000 WATT PURE SINE INVERTER CHARGER OFF GRID SOLAR KIT
Specifications: 720 WATT SOLAR KIT 4000 WATT PURE SINE INVERTER OFF GRID
You can find the specifications for each product by clicking on the links below.

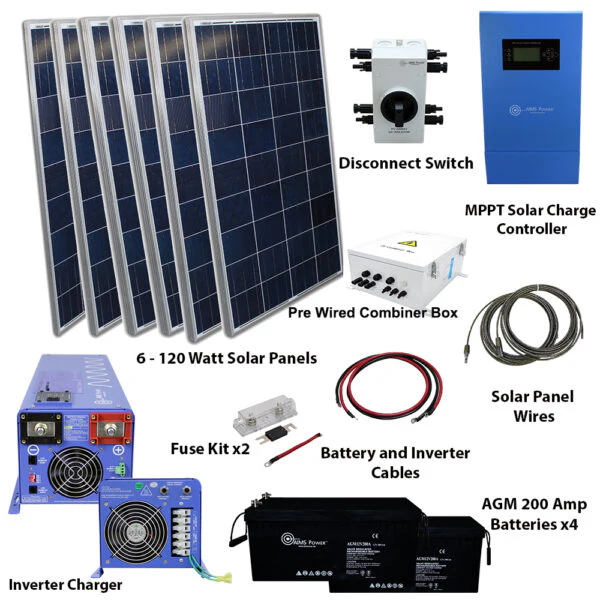

This solar kit includes:

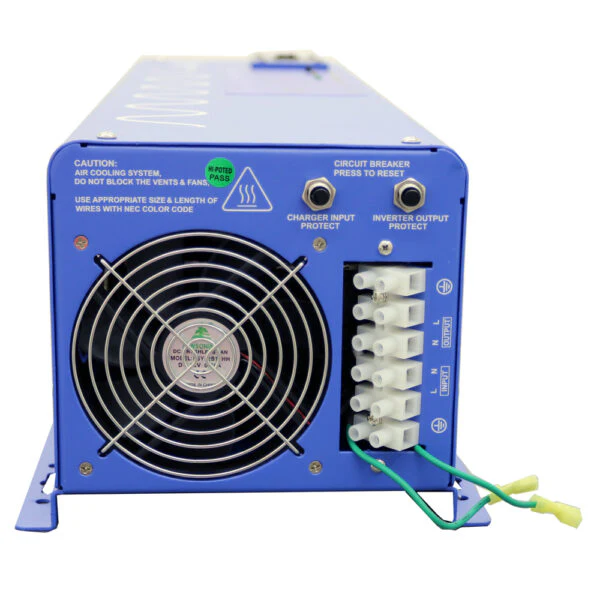

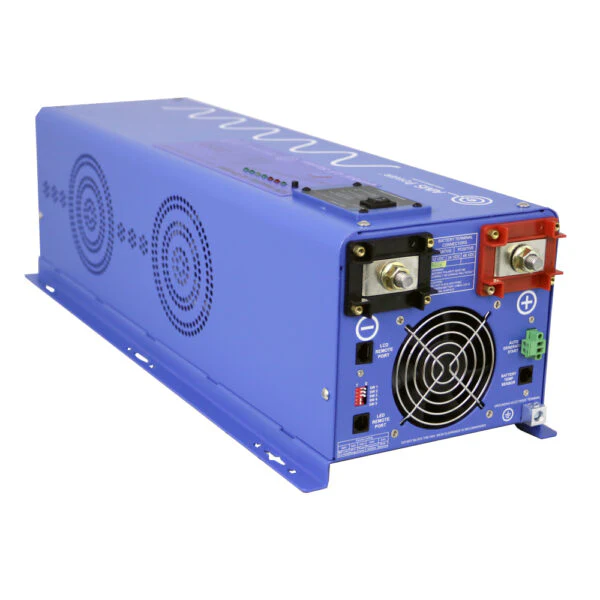

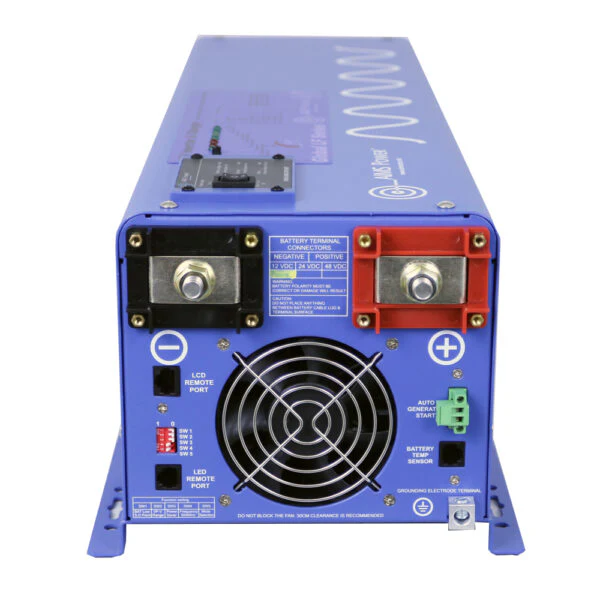

- PICOGLF40W12V240VS – 4000 watt pure sine inverter charger 33 amps @120VAC and 15 @240VAC
- PV120MONO – qty 6 – 120 watt mono solar panel @75 SQ FT

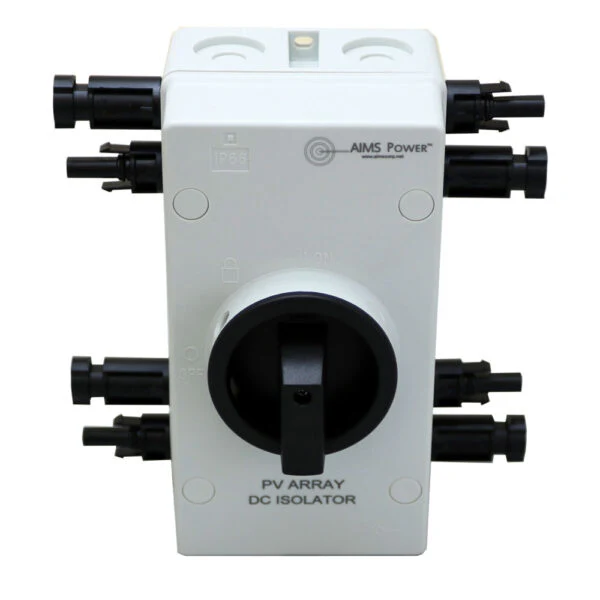

- Quick disconnect – DC1600V32A2IO

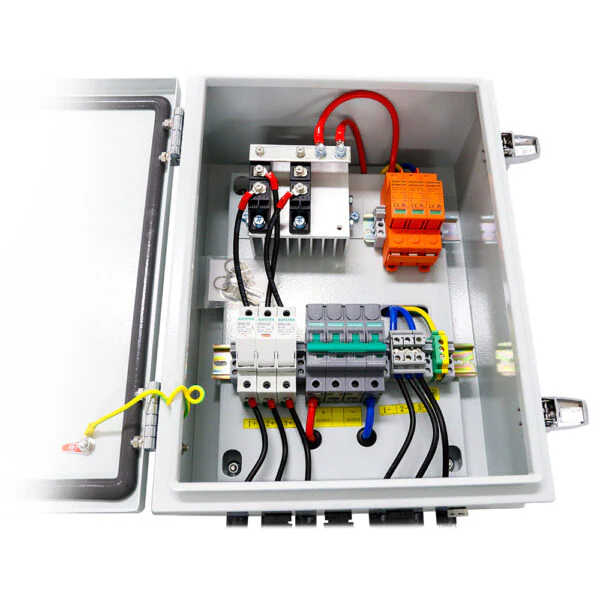

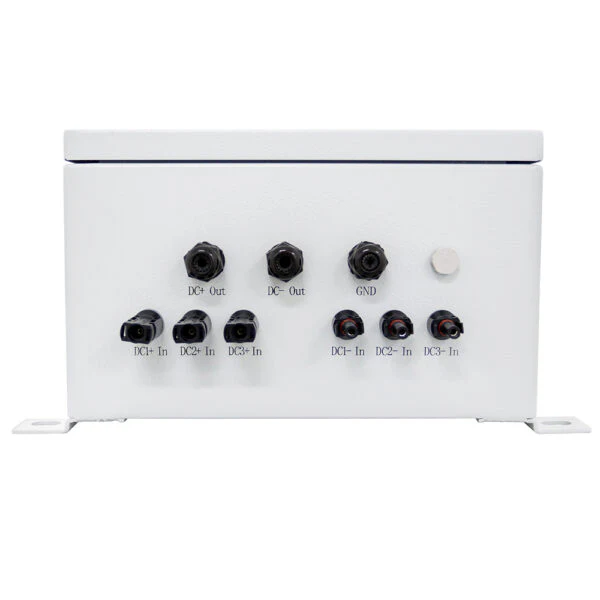

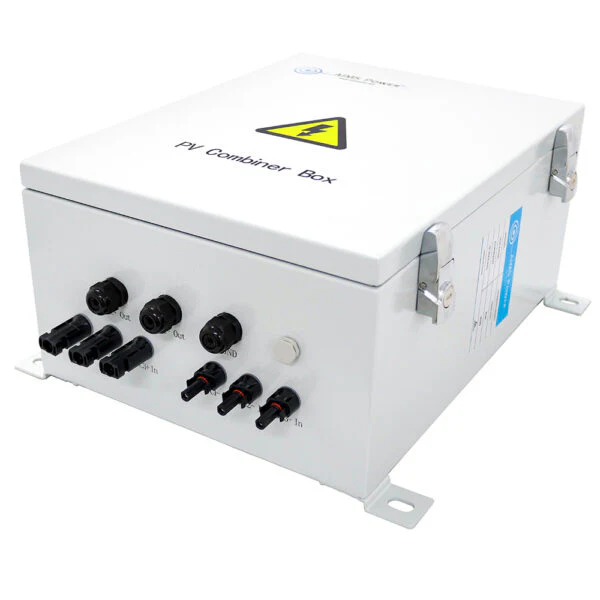

- Pre wired solar array combiner box 3 string

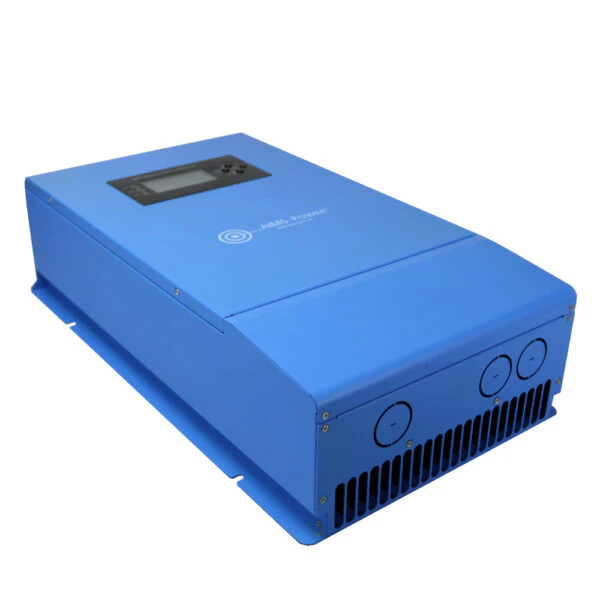

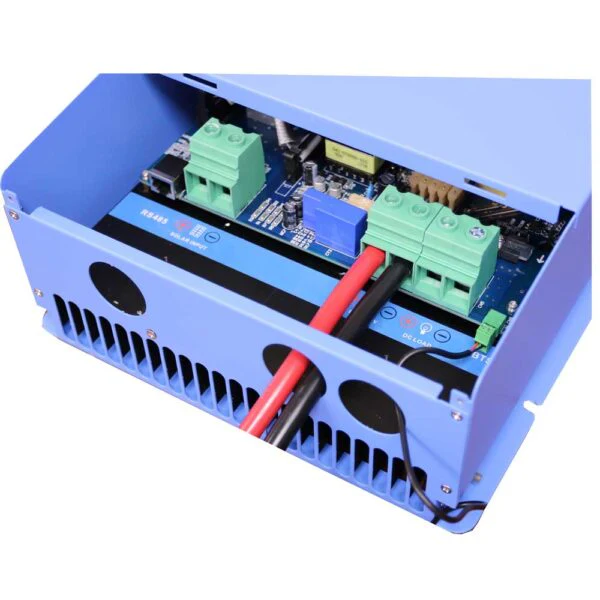

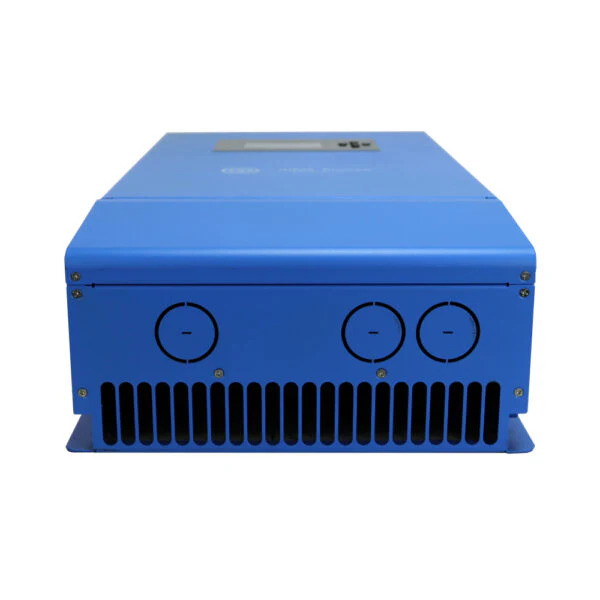

- SCC60AFM – 60 amp MPPT solar charge controller

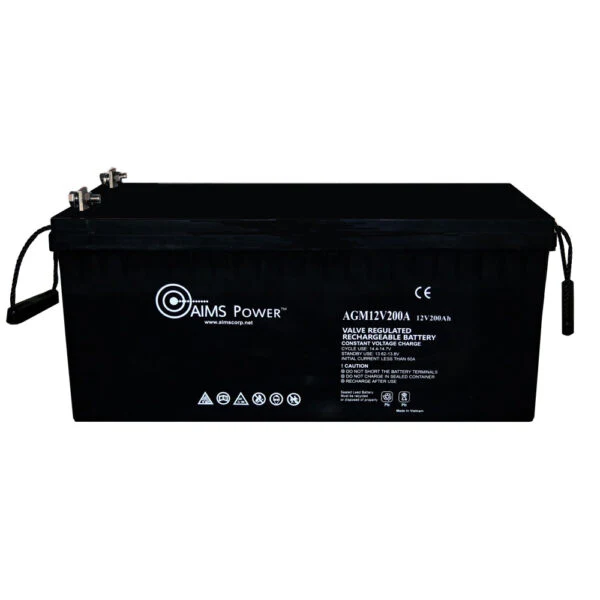

- AGM12V200A – qty 4 – 200 ah AGM deep cycle batteries
- PV100FTSET – 100 foot 10AWG PV wires for solar panels to charge controller male & female
- PVF100FT10AWG – 100 foot PV wire for combiner box to disconnect switch (female)
- PVM100FT10AWG – 100 foot PV wire for combiner box to disconnect switch (male)
- PVF20FT10AWG – male and female extender wire for panels to combiner box, combiner box to disconnect and disconnect switch to charge controller
- PICGLFBATS – Battery temperature sensor
- CBL06FT8AWGC- 8 ft set of 6 AWG cable to connect charge controller to battery bank
- ANL80KITJ – 80 amp fuse kit for charge controller to battery bank
- CBL08FT4/0 – 8 ft set of 4/0 AWG cable set battery bank to inverter
- CBL02FT4/0 – qty 3 – 2 ft set of 4/0 cable (battery cables for parallel connection)
- ANL500KITWJUMP – 500 amp inline fuse kit with jumper for batteries to inverter
720 WATT SOLAR KIT 4000 WATT PURE SINE INVERTER CHARGER OFF GRID SOLAR KIT
Features:
- Easy to connect and use
- Everything included except mounting/racks for solar panels
- Works with devices up to 4000 watts/ 33 AC amps 120 VAC / 16.6 AC amps 240 VAC
- Ideal for any equipment that needs standby back up or off grid power
- Perfect for a small home, cabin or business
- Need @75 sq ft available for solar panels
*The solar panel array will recharge a 50% depleted 800 amp battery bank in under 7 hours with full sunlight.*
Product Specifications
Aims Power Off Grid Solar Kit | 4000W Pure Sine Inverter Charger 120/240VAC | 720 Watt Solar Panels | 800 A Batteries Product Specifications
| Specification | Details |
|---|---|
| System Type | Off-Grid Solar Power Kit |
| Inverter Type | Pure Sine Wave Inverter Charger |
| Inverter Power | 4000 Watts |
| AC Output Voltage | 120 / 240 VAC |
| Solar Panel Capacity | 720 Watts |
| Solar Panels Included | 6 × 120W Monocrystalline Panels |
| Required Panel Space | Approx. 75 sq. ft. |
| Battery Bank Capacity | 800 Ah |
| Batteries Included | 4 × 12V 200Ah AGM Deep Cycle |
| Battery Voltage | 12V DC |
| Charge Controller | 60 Amp MPPT |
| Input Power Options | Solar, Utility Power, or Generator |
| Supported Loads | Homes, cabins, small businesses, tools, pumps |
| Solar Panel Protection | Tempered glass, weather-resistant |
| Wiring & Protection | PV wiring, fuses, disconnects, combiner box included |
| Estimated Recharge Time | Under 7 hours (50% depleted bank, full sunlight) |
| Installation | Wiring diagram included (mounting/racks not included) |
Product Manual
AIMS Power 4000 Watt Inverter Charger – PICOGLF40W12V230VS
AIMS Power 120 Watt Solar Panel – PV120MONO
AIMS Power Disconnect Switch – DC1600V32A2IO.pdf
AIMS Power 3 Strings – COM3IN120A
AIMS Power 60 AMP Charge Controller – SCC60AMPPT
Product Warranty
AIMS Power offers a one year warranty with all products. Follow the link below to register your product warranty:
https://www.aimscorp.net/product_registration.php
