Aims Power Off Grid Solar Kit | 2000W Pure Sine Inverter Charger | 1980 Watt Solar Panels | 200 A Batteries
Aims Power Off Grid Solar Kit | 2000W Pure Sine Inverter Charger | 1980 Watt Solar Panels | 200 A Batteries
Description
Off grid or back up power kit for your essential items. Up to 16 amps of power and the panels will keep up with your load. If you lose grid power, this kit will automatically kick in.
This solar kit includes all necessary products required and bundled for your convenience. This 1980 watt solar kit comes with a 2000 watt low frequency inverter charger. The inverter has a built in charger and can recharge the batteries when city or generator power is available. The solar panels are covered in tempered glass to protect from hazardous weather and the PV wiring is protected against UV, water, ozone, fluids, oil, salt and general weathering. The kit is packed with battery power to power your items at night or on shady days.
The pre-wired solar array combiner box makes installation a breeze and provides extra safety features for your system. Each system comes with a wiring diagram upon purchase.
The pure sine inverter has a built in smart charger, automatic transfer switch and can recharge the batteries when city or generator power is available. If grid power is lost, your solar system will automatically kick in. The 48VDC is more efficient, generates less heat allowing you to use smaller cables and fuses. The mono crystalline panels are covered in tempered glass to protect from hazardous weather and the PV wiring is protected against UV, water, ozone, fluids, oil, salt and general weathering.
Each system comes with a wiring diagram upon purchase.
1980 WATT SOLAR WITH 2,000 WATT PURE SINE POWER INVERTER CHARGER 48VDC OFF GRID SOLAR KIT

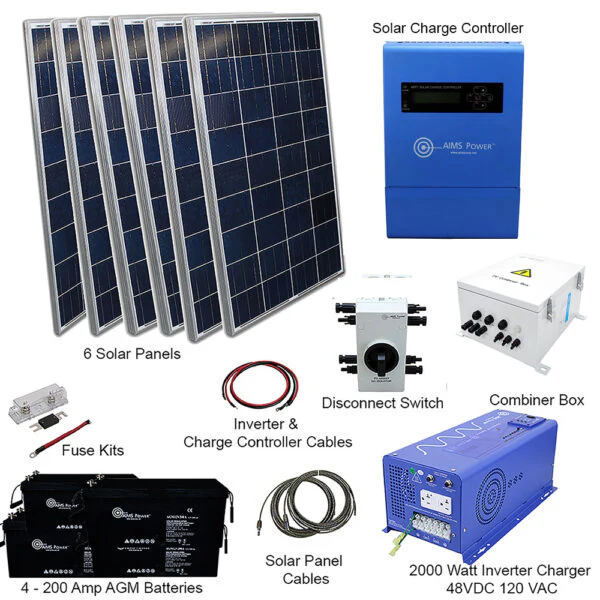

KIT COMPONENTS

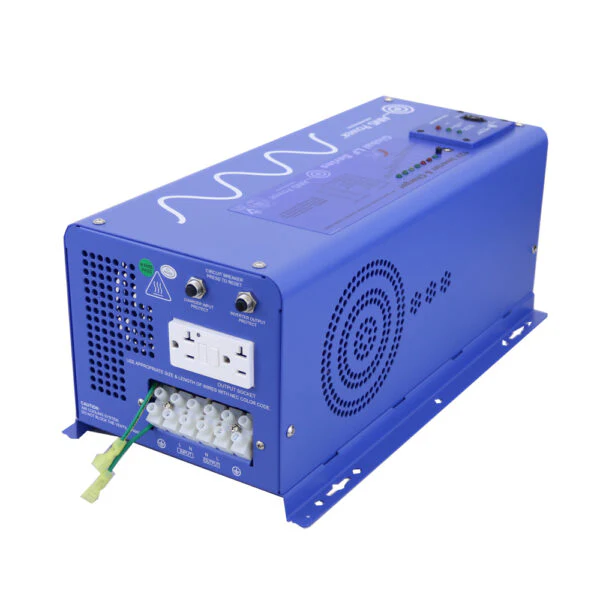

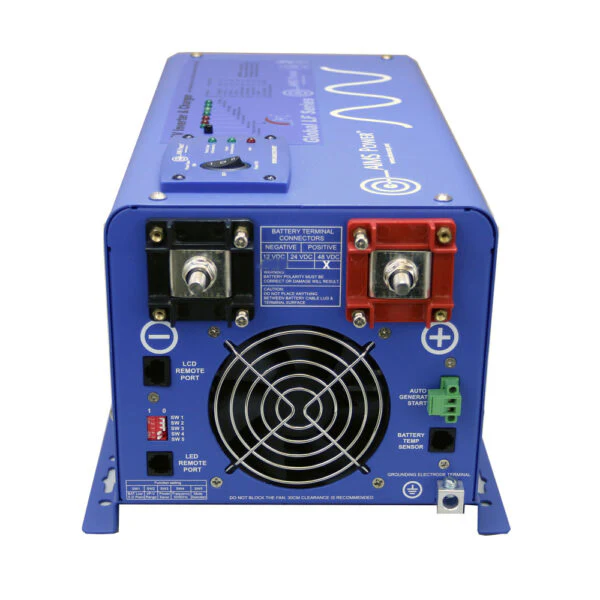

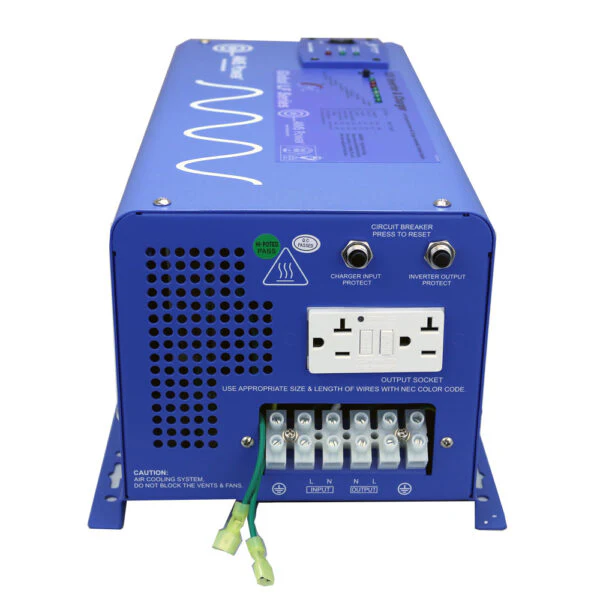

2,000 watt pure sine inverter charger 48VDC

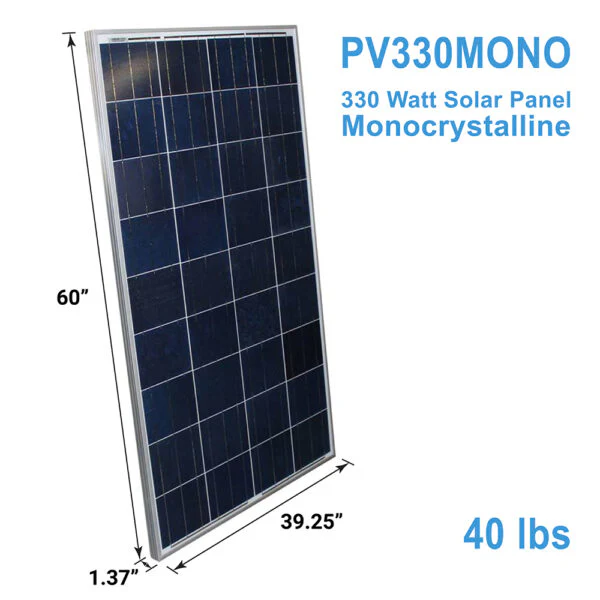

330 watt mono solar panel Qty 6 – PV330mono @210 SQ FT

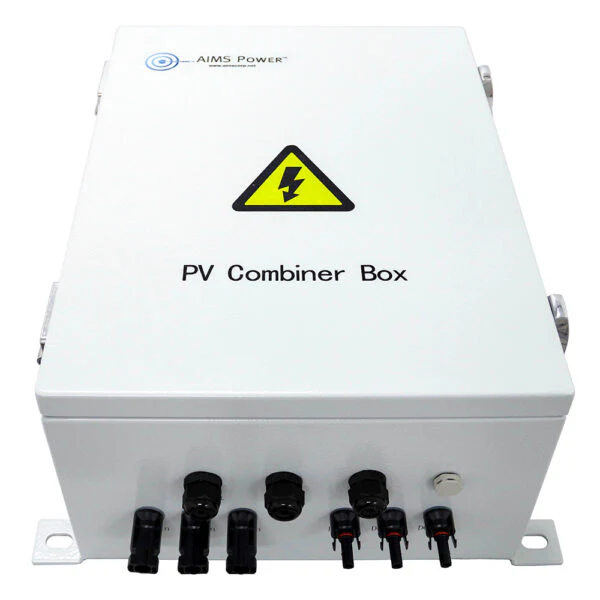

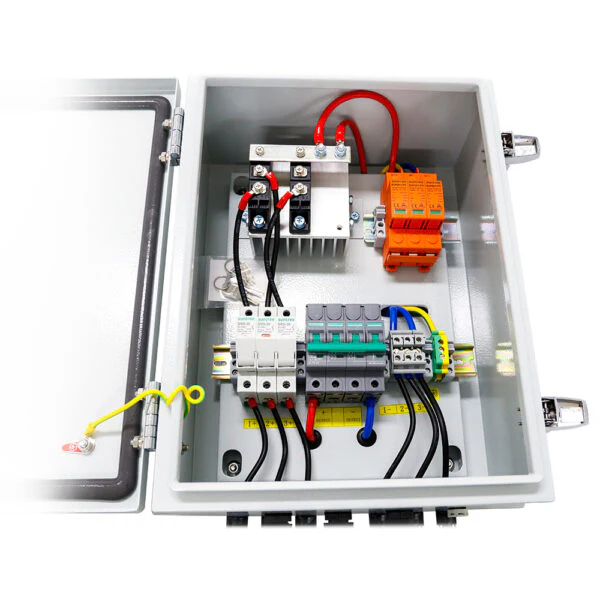

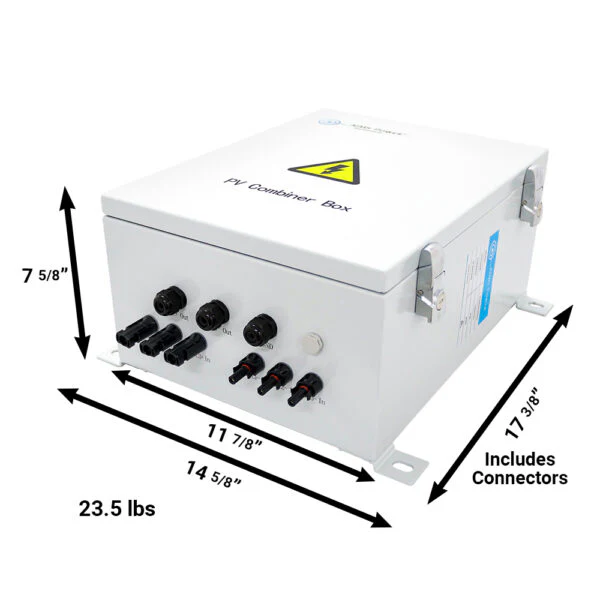

Combiner Box 3 String– Pre-wired

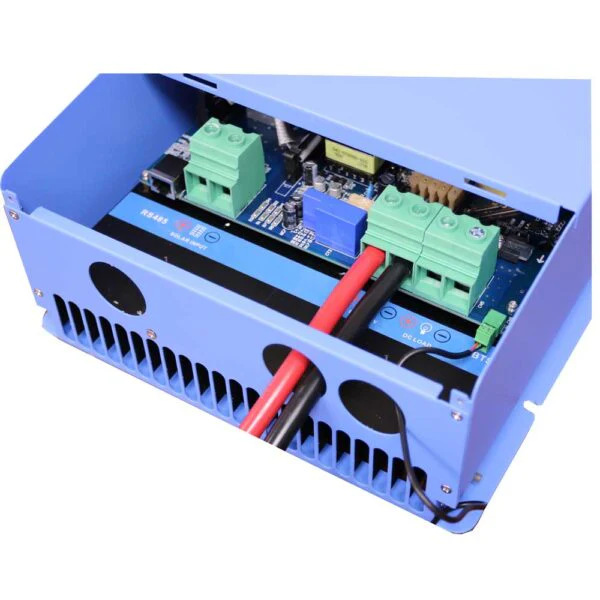

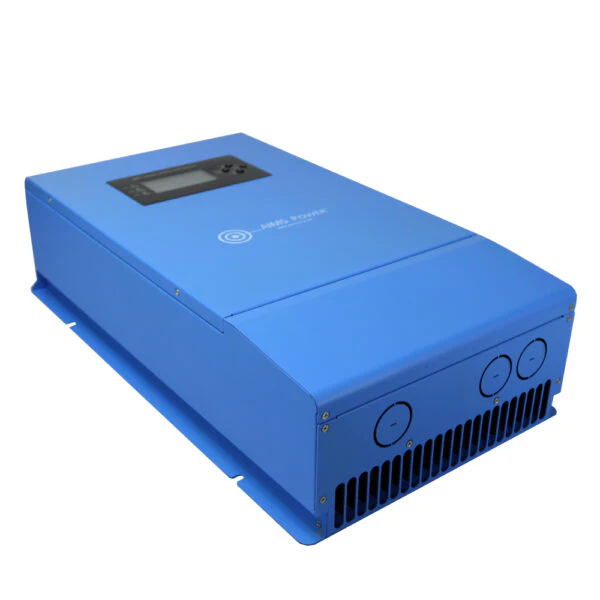

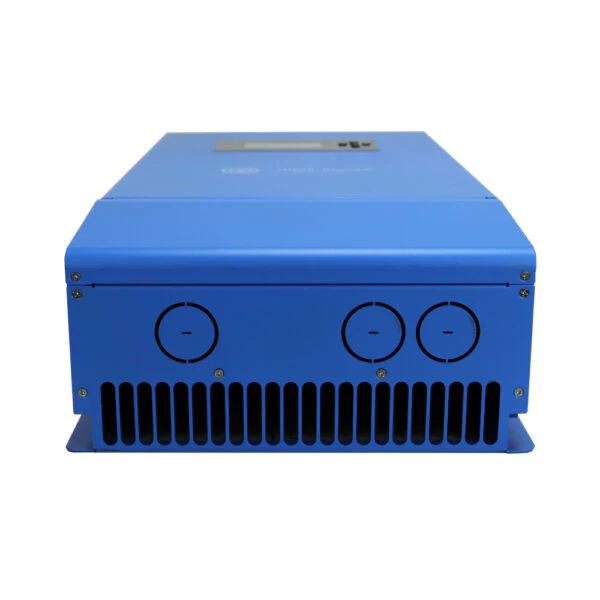

40 amp MPPT solar charge controller SCC60AMPPT

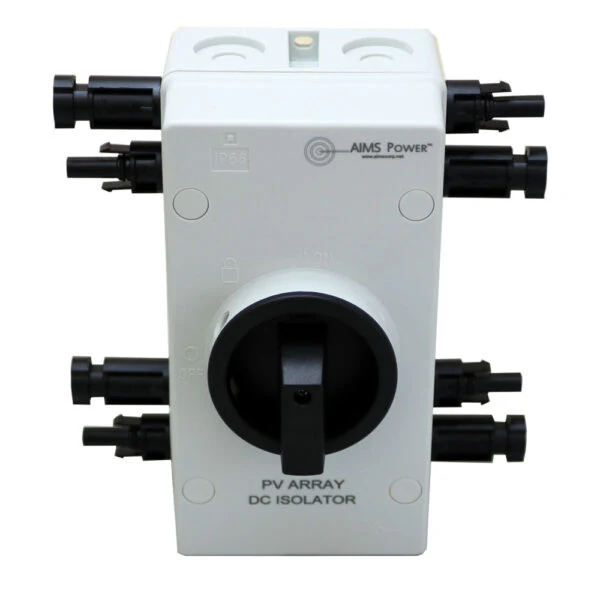

Quick Disconnect Switch DC1600V32A2IO

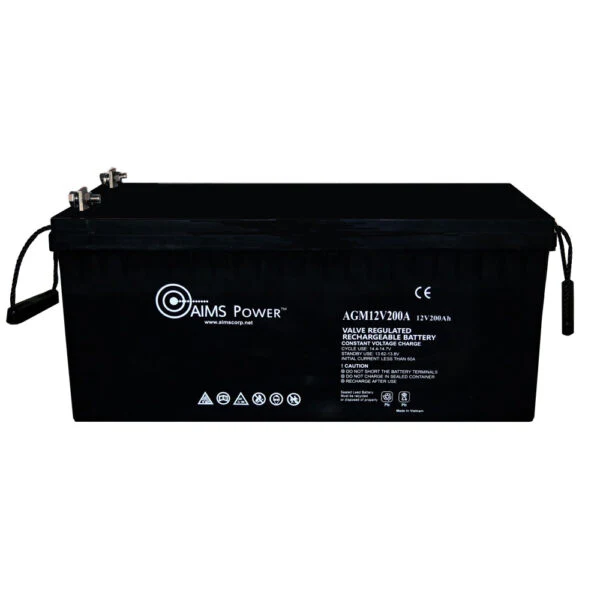

200 ah AGM deep cycle battery maintenance free sealed lead acid AGM12V200A – Qty 4

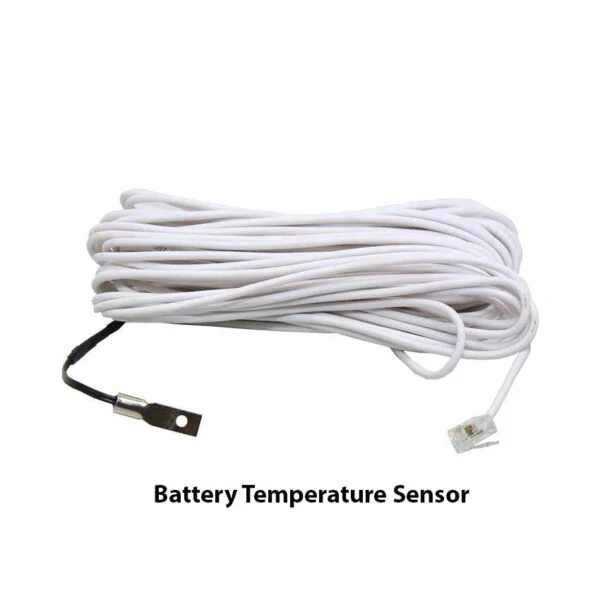

- PICOGLFBATS – qty 1 – battery temperature sensor
- PVEXT20FT10AWG – PV female & male extension cables for solar array to combiner box and disconnect to solar charge controller
- PVM100FT10AWG – 100 foot PV wire for solar panel (male) from combiner box to disconnect
- PVF100FT10AWG – 100 foot PV wire for solar panel (female) from combiner box to disconnect
- CBL08FT6AWGC – 8 ft set charge controller to battery cables
- CBL08FT1/0AWG- 8 ft set of 4 AWG cable battery bank to inverter
- CBL01FT6AWGRED – qty 4 – 1 ft jumper for fuse kit and battery jumpers
- ANL300KIT – 300 amp inline fuse kit for battery to inverter
- ANL80KIT – 80 amp inline fuse kit for battery to inverter and charge controller to battery – Qty 2
Features:
- Everything you need for an off grid or backup solar system (mounting brackets/racks excluded)
- Works with large size appliances up to 6000 watts/ 25 AC amps @ 240VAC and 50AC amps @ 120VAC
- Ideal for tools, pumps, compressors, appliances and electronics
- Automatically switches from grid power to solar power or can be used for all off grid applications
- Need @72 SQ FT available for solar panels
*The solar panel array will recharge a 50% depleted 200 amp battery bank in <3 hours with full sunlight.*
Product Specifications
Aims Power Off Grid Solar Kit | 2000W Pure Sine Inverter Charger | 1980 Watt Solar Panels | 200 A Batteries Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | AIMS Power |
| SKU / Part Number | KITD-2KW48V1920W |
| System Type | Off-Grid / Backup Solar Power Kit |
| Inverter Power | 2,000W Pure Sine Inverter Charger |
| Inverter Voltage | 48V DC |
| AC Output | 120/240VAC |
| Solar Panel Capacity | 1,980 Watts |
| Solar Panels | 6 × 330W Monocrystalline Panels |
| Battery Capacity | 200Ah AGM Deep Cycle Batteries |
| Battery Quantity | 4 × 12V 200Ah AGM |
| Charge Controller | MPPT Solar Charge Controller (40A) |
| Combiner Box | Pre-wired 3-string combiner box |
| Transfer Switch | Automatic (built-in inverter) |
| Battery Charger | Built-in smart charger |
| System Efficiency | 48V system for reduced heat and cable size |
| Required Solar Panel Space | ~72 sq ft |
| Application | Small home, cabin, backup power, off-grid use |
| Included Wiring & Protection | PV wiring, extension cables, fuses, disconnect switch |
| Installation | Wiring diagram included |
Product Manual
AIMS Power 2000 Watt 48 volt Inverter Charger – PICOGLF20W48V120VR
Product Warranty
AIMS Power offers a one year warranty with all products. Follow the link below to register your product warranty:
https://www.aimscorp.net/product_registration.php
Product FAQs
AIMS Power FAQs
