Aims Power Off Grid Solar Kit | 1500W Pure Sine Inverter | 380 Watt Solar Panels | 225 Amp Batteries
Aims Power Off Grid Solar Kit | 1500W Pure Sine Inverter | 380 Watt Solar Panels | 225 Amp Batteries
Description
This kit has been designed to power appliances up to 12.5 amps. Perfect for refrigerators, freezers, heaters, lights, fans, electronics and iother medium size appliances. Perfect for an off grid location needing to power only a few items at a time or a standby back up power solution using the sun. The powerful panels provide 380 watts of solar power and will keep your batteries charged as long as you have sunlight. Need a bigger kit?
380 WATT SOLAR WITH 1500 WATT PURE SINE INVERTER KIT OFF GRID
Specifications: 380 WATT SOLAR KIT 1500 WATT PURE SINE INVERTER OFF GRID
You can find the specifications for each product by clicking on the links below.

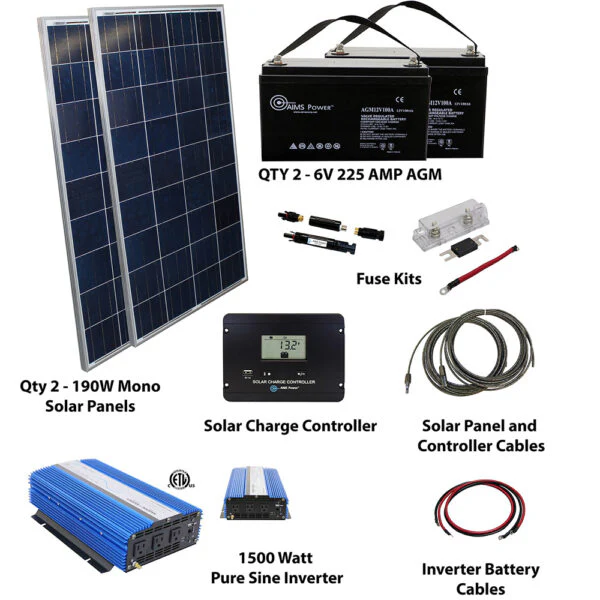

This solar kit includes:

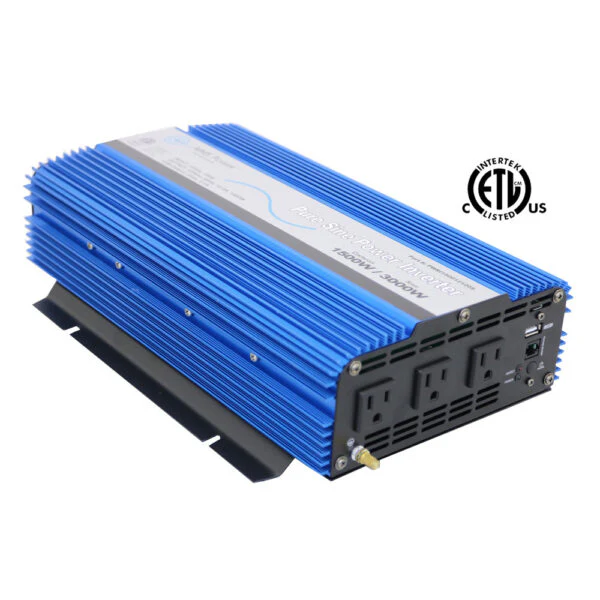

- PWRI150012120S – 1500 watt pure sine inverter 12.5 amps click here for more info

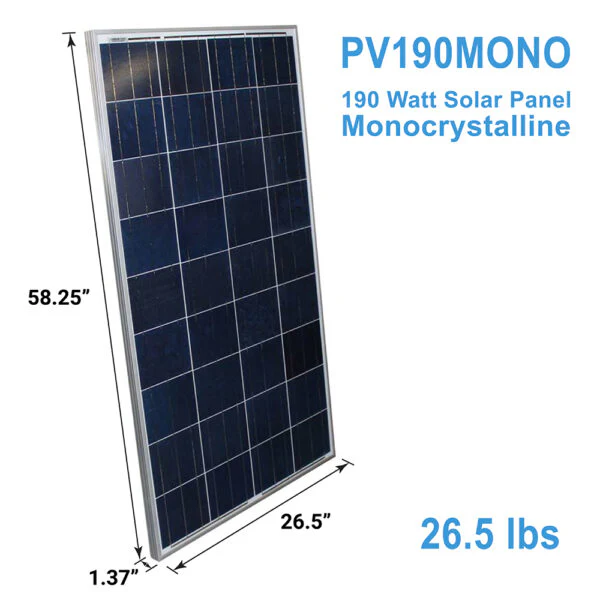

- PV190MONO – qty 2 – 190 watt mono solar panel @24 SQ FT click here for more info

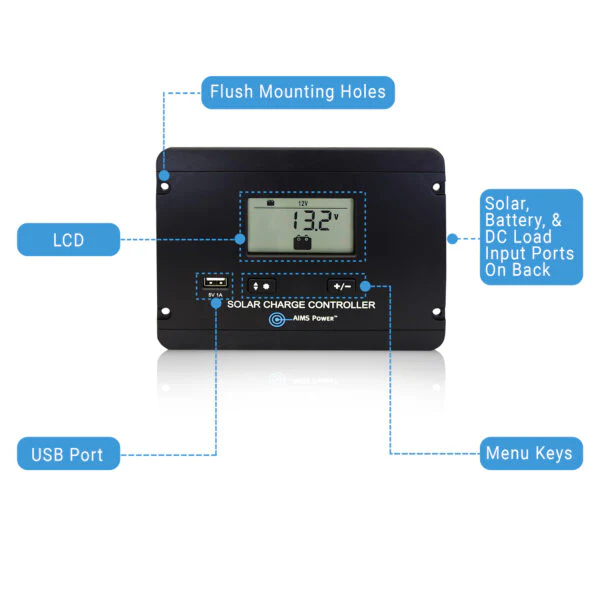

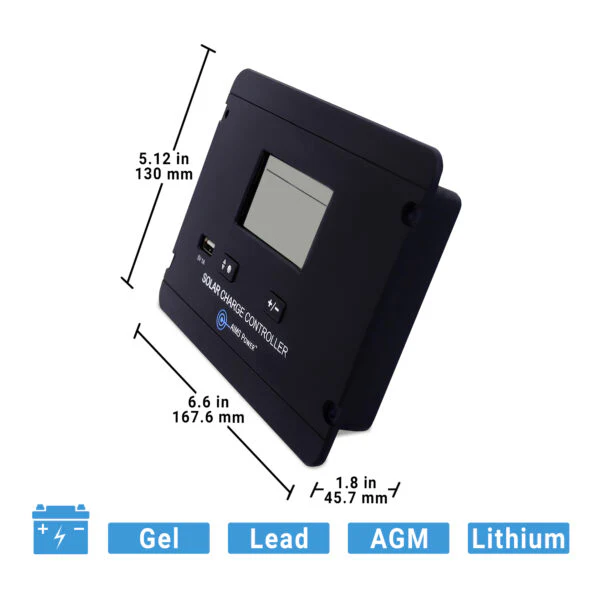

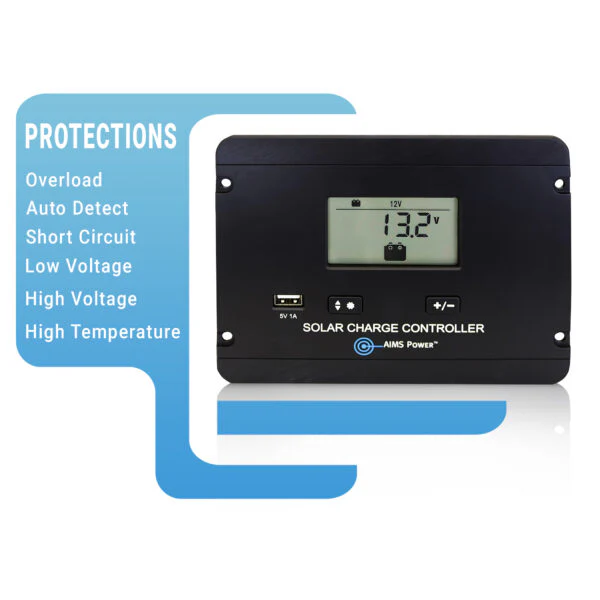

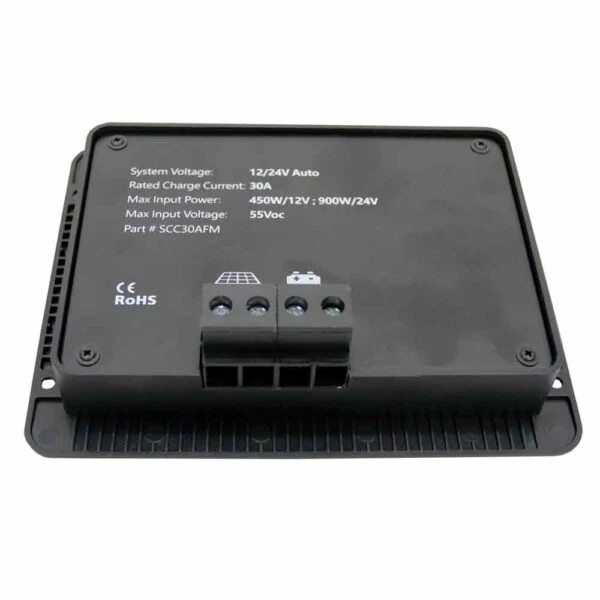

- SCC30AFM – 30 amp PWM flush mount solar charge controller click here for more info

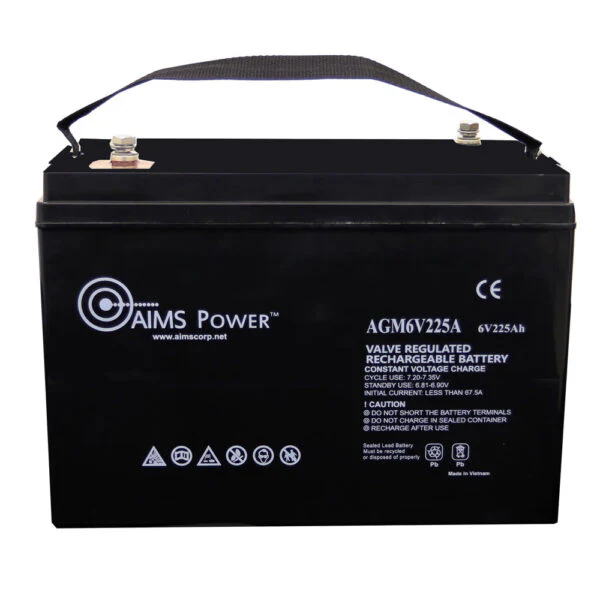

- AGM6V225A – qty 2 – 225 ah AGM deep cycle batteries
- PV100FTSET – 100 foot 10AWG PV wires for solar panels to charge controller male & female
- PV15FTLUG – 15ft set of wires from charge controller to battery bank
- CBL06FT4AWG- 6 ft set of 4WG cable from battery bank to inverter
- CBL01FT4AWGRED – 1 ft jumper for series battery connection

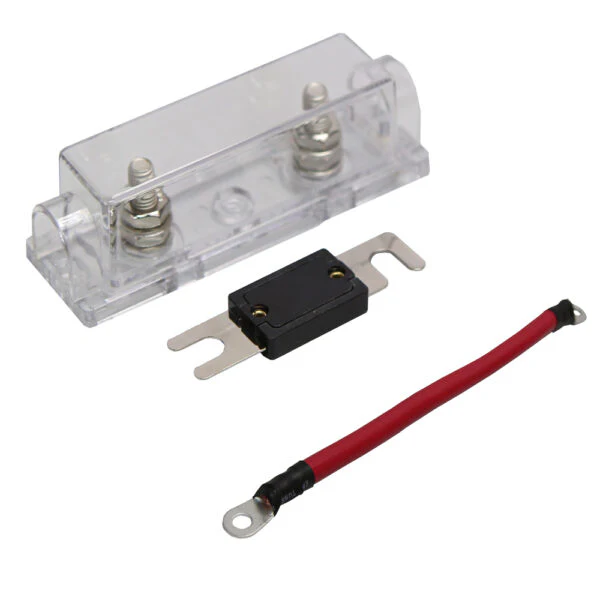

- ANL150KITJ – 150 amp inline fuse kit for inverter

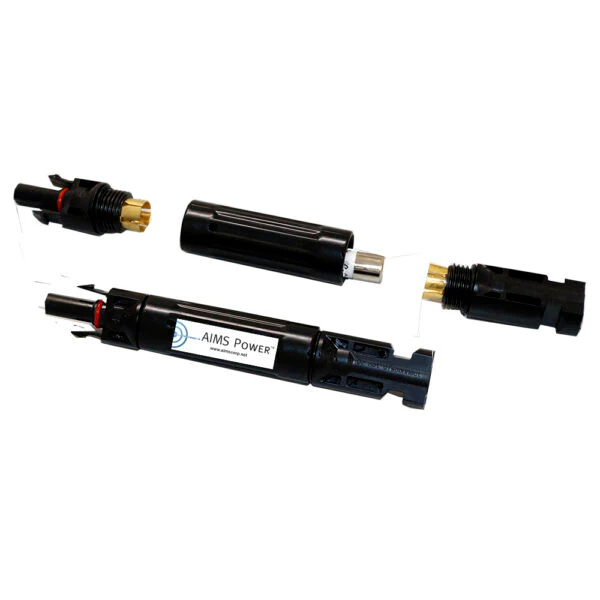

- Solar inline fuse for solar panels click here for more info
380 WATT SOLAR KIT 1500 WATT PURE SINE INVERTER OFF GRID
Features:
- Easy to connect and use
- Everything included except mounting/racks for solar panels
- Works with devices up to 1500 watts/ 12.5 AC amps 110 VAC
- Ideal for any equipment that needs standby back up or off grid power
- Perfect for a small home, cabin or business
- Need @30 sq ft available for solar panels
*The solar panel array will recharge a 50% depleted 225 amp battery bank in under 7 hours with full sunlight.*
Product Specifications
Aims Power Off Grid Solar Kit | 1500W Pure Sine Inverter | 380 Watt Solar Panels | 225 Amp Batteries Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Generic |
| Part Number / Model | KITD-1500W380W |
| Product Dimensions | 40 × 40 × 70 inches |
| Item Weight | 350 lbs |
| Solar Panel Power | 380W (2 × 190W monocrystalline panels) |
| Inverter | 1500W Pure Sine Wave |
| AC Output Voltage | 110 VAC |
| Battery Capacity | 225Ah AGM Deep Cycle (2 × 6V) |
| Charge Controller | 30A PWM Flush Mount |
| Included Wiring | 100 ft 10AWG PV wire set (male & female) |
| System Type | Off-Grid Solar Power Kit |
| Included Components | AGM6V225A batteries (qty 2), 190W solar panels (qty 2), 1500W inverter, 30A PWM charge controller, PV wire set |
Product Manual
AIMS Power 1500 Watt Power Inverter – PWRI150012S
AIMS Power 190 Watt Solar Panel – PV190MONO
AIMS Power 30 AMP Charge Controller – SCC30AMPPT
AIMS Power AGM Battery – 225 amp 12V
Product Warranty
AIMS Power offers a one year warranty with all products. Follow the link below to register your product warranty:
https://www.aimscorp.net/product_registration.php
Product FAQs
AIMS Power FAQs
Original: $2,267.00
-65%$2,267.00
$793.45Product Information
