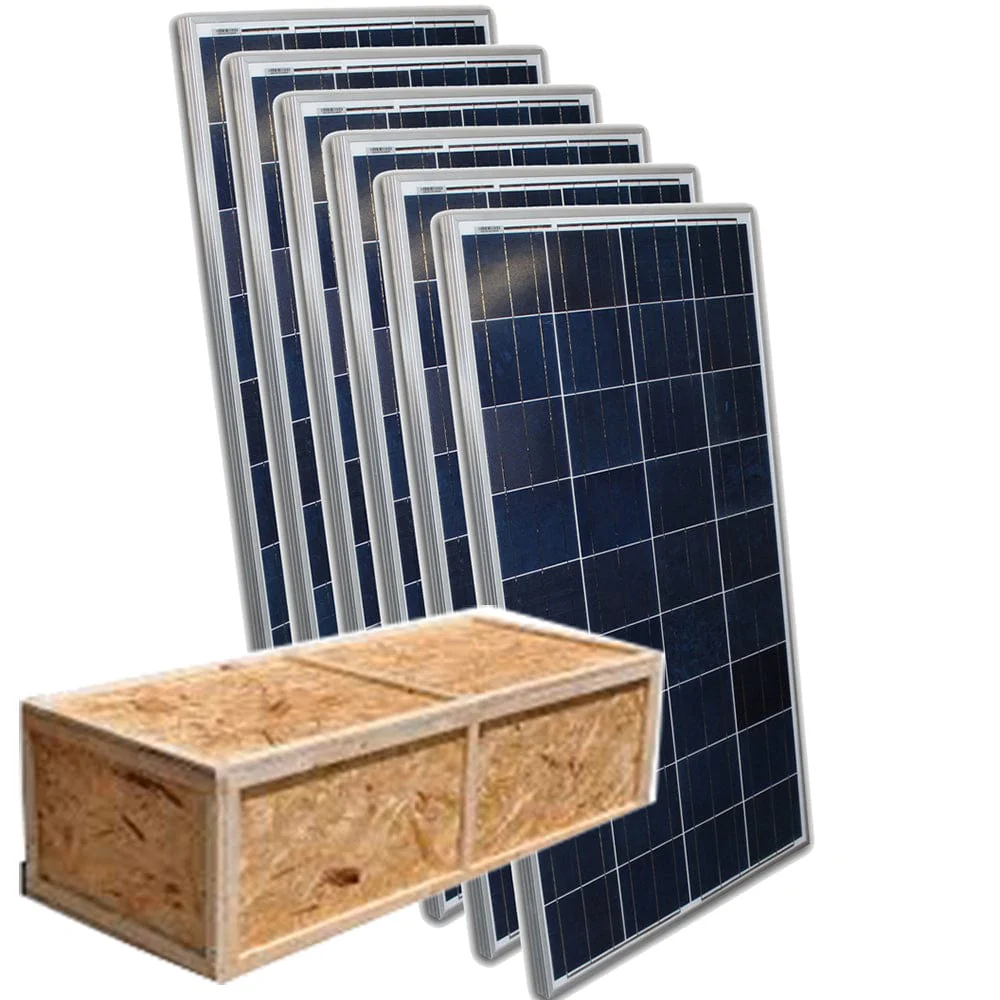

Aims Power 330 Watt Monocrystalline Solar Panel - Ships 6 Panels

Aims Power 330 Watt Monocrystalline Solar Panel  - Ships 6 Panels per Pallet

Description:

The 330 Watt Monocrystalline Solar Panel from AIMS Power is a versatile performer constructed with tempered glass and a stronger surface to protect from harsh weather conditions. The solar cells used in the panel provide high light transmission and the textured glass allows for more efficient power solar harvesting. The panel also includes a bypass diode that minimizes the power drop caused by shade. Easy to install using the pre-drilled holes on the aluminum outer frame. Perfect for home and industrial applications.

Product Specifications

Aims Power 330 Watt Monocrystalline Solar Panel - Ships 6 Panels per Pallet

Features:

• Monocrystalline efficient solar harvesting
• Strong surface for harsh environment
• Panels capable of 0 to +3 Watts over rated capacity
• Pre-drilled aluminum frame
• Tempered glass
• 25 Year limited warranty

Specifications:

• Maximum Power (Watts): 330 watts
• (Vmp): 33.9 volts  operating voltage
• (Imp): 9.73 amps operating current
• (Voc):41.5 volts open circuit voltage
• (Isc): 10.22 amps
• Solar Cell: 158.75mm x 158.75mm
• Number of Cells (pcs): 10*6 = 60
• Front Glass Thickness (mm): 3.2 mm
• Temperature Coefficients of Isc (%) °C: -0.048
• Temperature Coefficients of Voc (%) °C: -0.29
• Temperature Coefficients of Pm (%) °C: -0.37
• Temperature Range: -40°C to +85°C
• Tolerance Wattage: 0-3 watts
• Surface Maximum Load Capacity: 6000Pa snow and 3600Pa wind
• Allowable Hail Load: 45mm at 30.7m/s
• Bypass Diode Rating (A): 10
• Cell Efficiency (%): 21.47%
• Module Efficiency (%): 19.78%
• Warranty: 91.2% of 12 years, 80.6% of 25 years
• Weight Per Panel (lbs): 39.7 lbs
• Dimensions (inches): 65 x 39.25 x 1.37

Product Manual

Aims Power 330 Watt Monocrystalline Solar Panel - Ships 6 Panels per Pallet

AIMS Power 330 Watt Solar Panels 6PK - PV320MONO

Product Warranty

AIMS Power offers a one year warranty with all products. Follow the link below to register your product warranty:

https://www.aimscorp.net/product_registration.php
