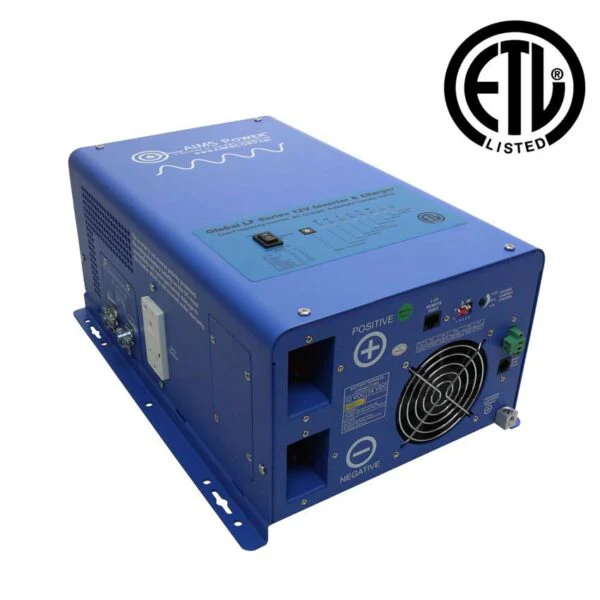

Aims Power 3000 Watt Pure Sine Inverter 100A Charger with 120/240V 30A & 50A Transfer

Aims Power 3000 Watt Pure Sine Inverter 100A Charger with 120/240V 30A & 50A Transfer

Description

The ETL listed to UL 458 standards AIMS 3000 watt pure sine inverter charger has surpassed the ETL requirements and includes a 2 year warranty. This inverter is a a combination of an inverter, battery charger and AC auto-transfer switch into one complete system with a peak DC and AC conversion efficiency of 92%. It is unique as the inverter will bypass 50 amps 120V or 240V and outputs 120, ideal for RVs, work trucks, food trucks and boats. It is packed with unique features and it is one of the most advanced inverter chargers on the market today. This inverter also features power factor corrected, sophisticated multi-stage charging and pure sine wave output with unprecedentedly high surge capability to meet demanding power needs of inductive loads without endangering the equipment.

The powerful battery charger  is capable of 12 volts at 100 amps, and with power factor corrected, it uses 20-30% less energy from AC input than a standard charger, avoiding nuisance breaker trips or generator overloads. In response to the increasing demand of more advance battery charging, this model is equipped with Battery Temperature Sensing for increased charging precision. The overloads capacity is 300% of continuous output for up to 20 seconds to reliably support tools and equipment longer.

The transformers have been consistently improved for years to achieve the best balance of conversion efficiency, idle consumption and minimum THD. The idle consumption of the line is ultra-low, roughly 1.5% of its rated power. The AC battery priority switch and auto generator start functionally making it ideal to work in either backup power or renewable energy applications.

In AC priority mode, when utility AC power cuts off, the transfer relay is de-energized and the load is automatically transferred to the inverter output. Once the qualified AC utility is restored, the relay is energized and the load is automatically transferred to AC utility.

When customized to battery priority mode via the DIP switch, the inverter will extract power from external power sources in renewable energy systems and a minimal cycle of the battery will be required. With the availability of the auto generator start, an electrical generator can be integrated into the system as a backup and started when the battery voltage goes low.

Features:

• Listed to UL 458 Standards
• Bypasses 50 amps 120V or 240V and outputs 120V
• 2 year warranty
• 3000 watt low frequency inverter
• 9000 watt surge for 20 seconds -3x surge capability

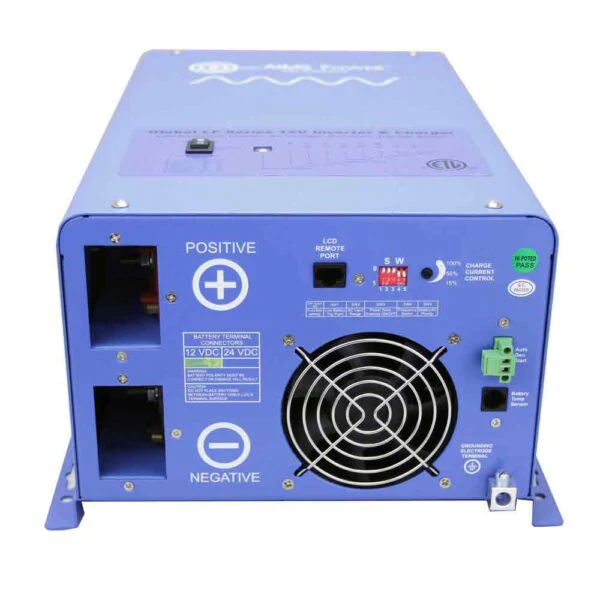

• Battery priority selector

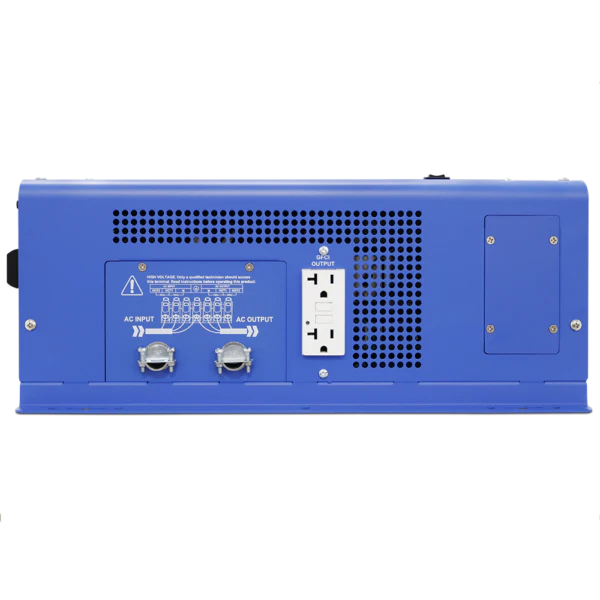

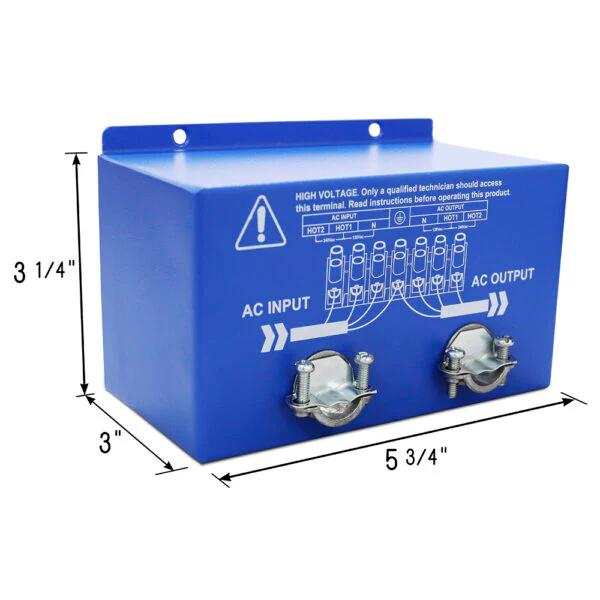

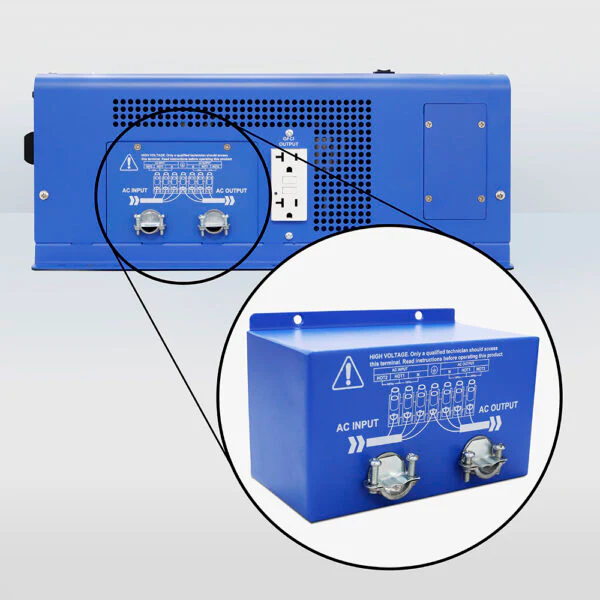

• AC direct connect terminal block
• GFCI – 20 amps
• Marine coated and protected
• Multi stage smart charger 100 amps
• Remote panel available
• Auto gen start
• Auto frequency
• 10msec typical transfer time
• 7 battery type settings for charger including lithium

Product Specifications

Aims Power 3000 Watt Pure Sine Inverter 100A Charger with 120/240V 30A & 50A Transfer Product Specifications

Specifications:

OUTPUT	Continuous Output Power	3000 Watts / 3KW
	Surge Rating (20 secs)	9000 Watts / 9KW
	Starting Electric Motor (HP)	3 HP
	Output Waveform	Pure Sine
	Nominal Efficiency	>92% (Peak)
	Line Mode Efficiency	>95%
	Power Factor	.9 – 1
	Nominal Output Voltage (rms)	120Vac
	Output Voltage Regulation	± 10% RMS
	Output Frequency	50/60 Hz ±0.3Hz
	Short Circuit Protection	YES. Current Limit Function (fault after 1 sec)
	Typical Transfer Time	10ms (MAX)
	Max THD @ Full Linear Load	<20%
DC INPUT	Nominal Input Voltage	12 Vdc
	Minimum Start Voltage	10Vdc
	Low Battery Alarm	10.5Vdc / 11.Vdc
	Low Battery Trip	10Vdc / 10.5Vdc
	High Voltage Alarm & Fault	16Vdc
	High DC Input Recovery	15.5Vdc
	Low Battery Voltage Recover	13Vdc
	Sleep Mode Threshold	>50 Watts (Power Saven On)
CHARGE	Input Voltage Range	Narrow: 100-135Vac Wide: 90-135Vac
	Input Frequency Range	Narrow: 47-55 ±0.3Hz @ 50Hz, 57-65 ±0.3Hz @ 60Hz
	Output Voltage	Depends on battery type
	Charger Breaker Rating (120 Vac)	30A
	Max Charge Rate	100A
	Over Charge Protection Shutdown	15.7V
	Battery Type	Fast Vdc        Float Vdc
	Gel USA	14           13.7
	AGM 1	14.1        13.4
	AGM 2	14.6        13.7
	Sealed Lead Acid	14.4        13.6
	Gel Euro	14.4        13.8
	Open Lead Acid	14.8        13.3
	Lithium	14.4 (NOTE: INVERTER MAY SAY CALCIUM BUT CHARGING ALGORITHM BUILT INTO THE INVERTER IS FOR LITHIUM)
	De-sulphation	15.5 for 4 hours
	Battery Temp Sensor	YES. Part # PICGLFBATS
BYPASS & PROTECTION	Input Voltage Waveform	Pure sine from grid or generator
	Nominal Votage	120Vac
	Low Voltage Trip	80V/100V ±4%
	Low Voltage Re-engage	90V/100V ±4%
	High Voltage Trip	140V ±4%
	High Voltage Re-engage	135V ±4%
	Max Input AC Voltage	150Vac
	Nominal Input Frequency	50Hz or 60Hz (auto detect)
	Low Freq Trip	Narrow: 47 ±0.3Hz @ 50Hz, 57 ±0.3Hz @ 60Hz                                 Wide: 40 ±0.3Hz for 50/60Hz
	Low Freq Re-engage	Narrow: 48 ±0.3Hz @ 50Hz, 58 ±0.3Hz @ 60Hz                                  Wide: 45 ±0.3Hz for 50/60Hz
	High Freq Trip	Narrow: 55 ±0.3Hz @ 50Hz, 65 ±0.3Hz @ 60Hz                                  Wide: No limit for 50/60Hz
	High Freq Re-engage	Narrow: 54 ±0.3Hz @ 50Hz, 64 ±0.3Hz @ 60Hz                                 Wide: No limit for 50/60Hz
	Output Short Cirucit Protection	Circuit Breaker
	Bypass Breaker Rating (120 Vac)	50A
	Bypass Breaker Rating (240 Vac)	50A
	GFCI Rating	20A
MECHANICAL	Mounting	Predrilled holes for wall/ground
	Dimensions	16.25″L x 11″W x 7″H
	Weight	59 lb
	Shipping Dimensions	21″H x 14″W x 12″H
	Shipping Weight	64 lb
	Displays	Status LEDs/Optional LCD Remote
	Warranty	2 Year
