Aims Power 2000 Watt 12V Pure Sine Power Inverter ETL Listed to UL458/CSA- Industrial Grade

Aims Power 2000 Watt 12V Pure Sine Inverter ETL Listed to UL458/CSA- Industrial Grade

Description

Industrial Grade 2000W Low Frequency Power Inverter: Clean, Stable Power for Your Most Demanding Applications

Experience uncompromising power reliability with the AIMS Power 2000W Pure Sine Power Inverter. Engineered to deliver true 120VAC power with a true neutral – virtually identical to grid power.

Built for demanding environments, this inverter delivers a massive 6,000-watt surge capacity for 20 seconds, ensuring reliable startup for heavy-duty equipment. Advanced DSP (Digital Signal Processing) technology maintains consistent performance and stable output voltage—even as battery levels drop—making it ideal for sensitive electronics, power tools and appliances. Built tough for rugged conditions, it features an intelligent 3-step controlled fan for efficient cooling, GFCI outlets for added safety, hard wire terminal for convenience, and an optional LCD remote panel for convenient monitoring.

Ideal for professional-grade applications:

• Utility and service trucks requiring grid-quality power
• Mobile workshops, food trucks, and field service vehicles
• Off-grid homes, cabins, and emergency backup systems
• Remote construction sites and solar/battery backup installations

Features:

• 2000W – 16 Amps Continuous Power – Handles demanding loads with ease
• 6,000W Surge Capacity – Powers high-startup equipment for 20 seconds
• ETL Listed Conforms to UL458 Standards & CSA
• Pure Sine Wave Output – Clean power safe for most devices

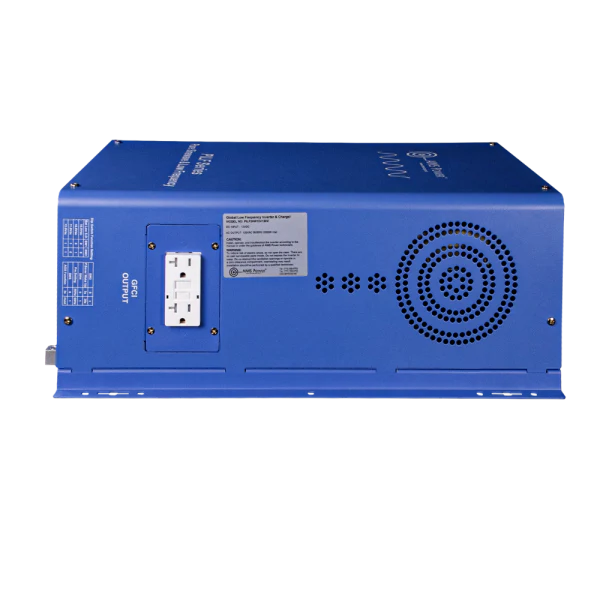

• Single GFCI Duplex receptacle  – Enhanced safety protection

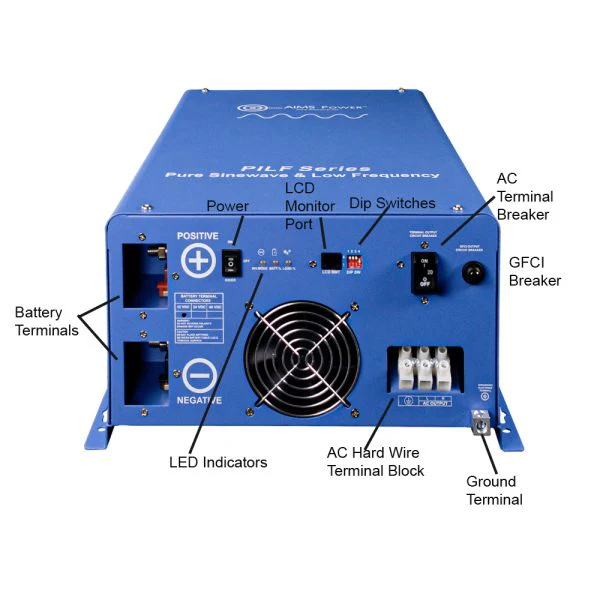

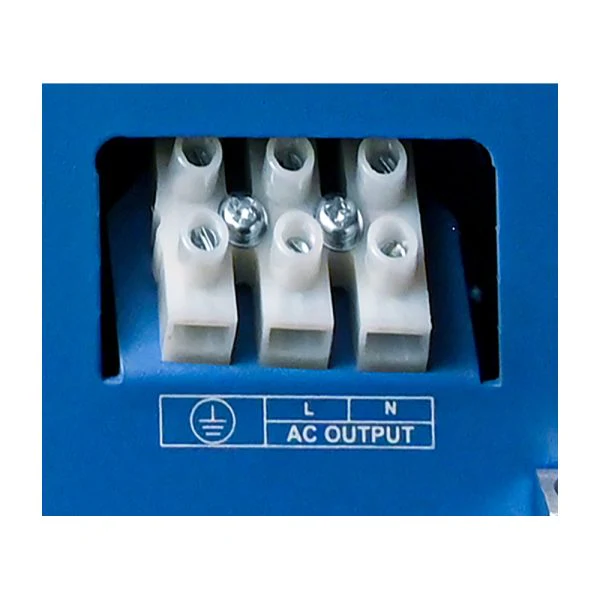

• Hard wire terminal for full output capacity
• DSP Technology – Advanced digital signal processing for optimal performance
• Built to withstand harsh conditions

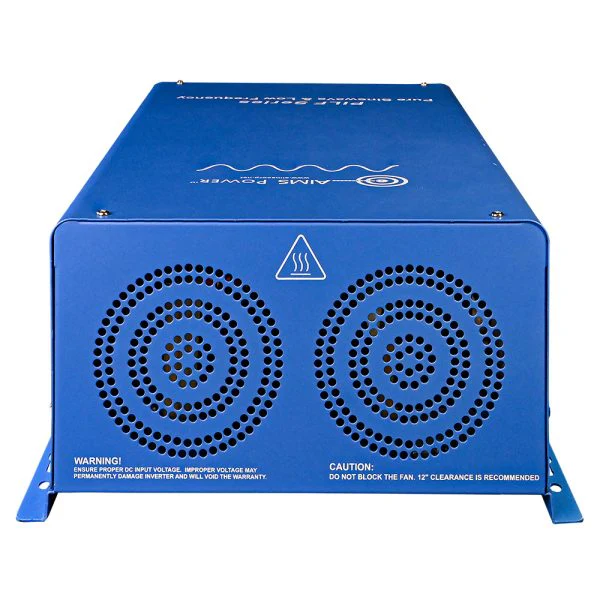

• 3-Step Controlled Fan – Quiet operation with efficient cooling
• Voltage Regulation – Stable output regardless of battery voltage fluctuations
• Optional LCD display for convenient monitoring- REMOTELF
• Power Save Mode – Energy conservation when no load present
• Overload protection
• Low and high voltage protection
• Short circuit protection
• Low and high temperature protection
• Conformal coated
• 50Hz & 60Hz
• 2 Year Warranty
• Lifetime tech support

Product Specifications

Aims Power 2000 Watt 12V Pure Sine Inverter ETL Listed to UL458/CSA- Industrial Grade Product Specifications

Specification	Value
Continuous Power	2000W
Surge Rating	6000W
Capable of Electric Motor	2.0 HP
Output Waveform	Pure Sine Wave
Nominal Efficiency	Up to 88%
Power Factor	0.9–1.0
Nominal Output Voltage	120Vac
Output Voltage Regulation	±10%
Output Frequency	50/60Hz ±0.3Hz
Short Circuit Protection	Yes
THD	<3% typical
DC Input Voltage	12.0Vdc
Minimum Start Voltage	10.0Vdc
Low Battery Alarm	10.5–12.5 Vdc
Low Battery Trip	10.0–12.0 Vdc
High Voltage Alarm	≥16.0Vdc
Recovery Voltage (High DC)	≤15.5Vdc
Low Battery Recovery	≥13.0Vdc
Idle Consumption	<2.5W
Remote Control	Optional

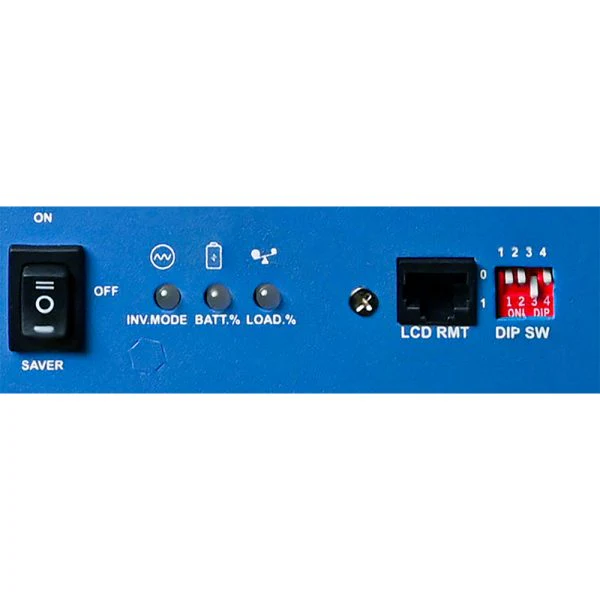

Display	Tri-Color LEDs
Mounting	Wall or flat
Inverter Weight	47 lbs
Shipping Weight	57 lbs
Size	19 × 13.75 × 7.25 in
Shipping Size	24 × 18 × 12

Product Manual

AIMS PILF MAN 071725

Product Warranty

AIMS Power offers a one year warranty with all products. Follow the link below to register your product warranty:

https://www.aimscorp.net/product_registration.php
