Aims Power 1500 Watt Pure Sine Power Inverter Kit
Aims Power 1000 Watt Pure Sine Power Inverter Kit
Description
A convenient kit, bundled with all the products you need for installation.
Power inverters have become a staple in businesses and homes around the world due to intermittent brown and black-outs. AIMS pure sine wave power inverters provide reliable transformation of DC power from a battery (such as the one in a car or RV) into AC power that can then be used to run lights, computers, printers, televisions, medical equipment* and a broad range of appliances. And when it comes to selecting an inverter, it’s helpful to know that AIMS pure sine wave inverters represent the most technologically advanced, lightweight, compact and diverse inverters on the market to help ensure the widest use of applications. For over a decade, the AIMS’ Power has consistently delivered the broadest range of sizes to accommodate virtually every power requirement.
Advantages of a pure sine inverter:
-Equipment runs more efficiently
-Motors run cooler
-Cleaner power
-Ideal for power tool chargers, laser printers, electric shavers, microwaves, variable speed motors, TV’s, medical equipment
Features:

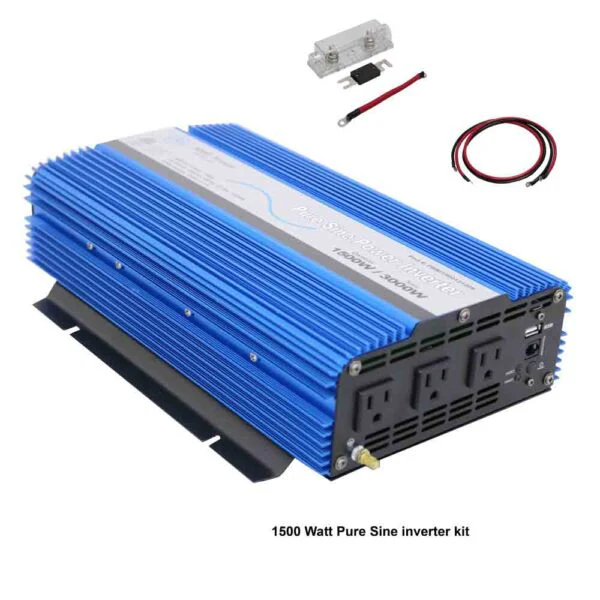

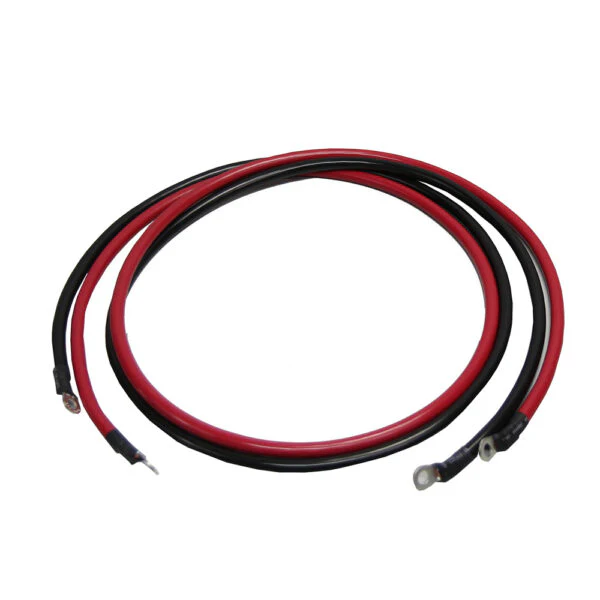

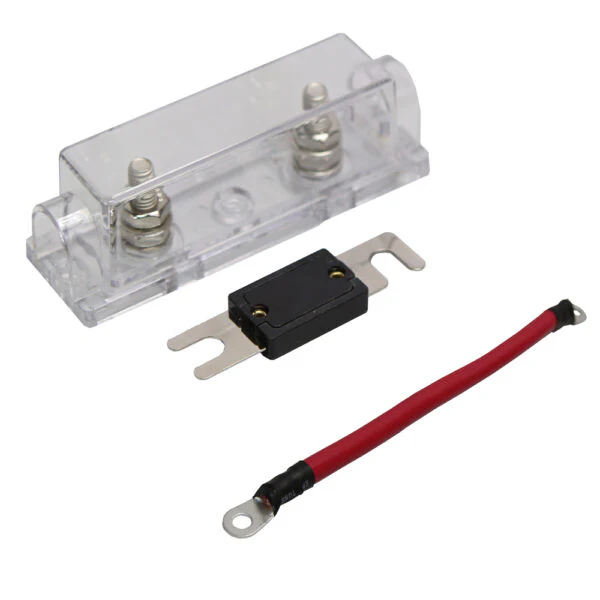

- Includes 1500 watt pure sine inverter, 11ft 1/0 AWG cables, ANL fuse (150A), and on/off remote
- 1500 Watt continuous power
- 3000 Watt Surge
- 12 volt DC Input
- Pure sine wave
- USB Port

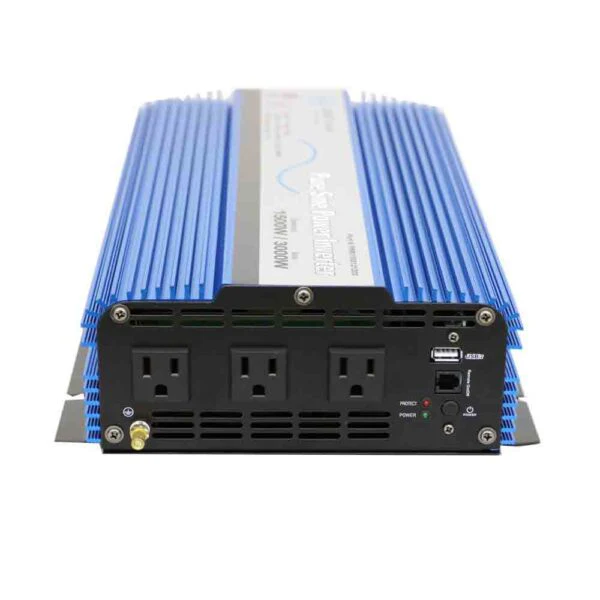

- Triple AC receptacles
- On/off switch
- Over temperature indicator
- Overload protection
- Low battery voltage warning/shutdown
- High input voltage protection with automatic shutdown
- Over load indicator
- Short circuit protection

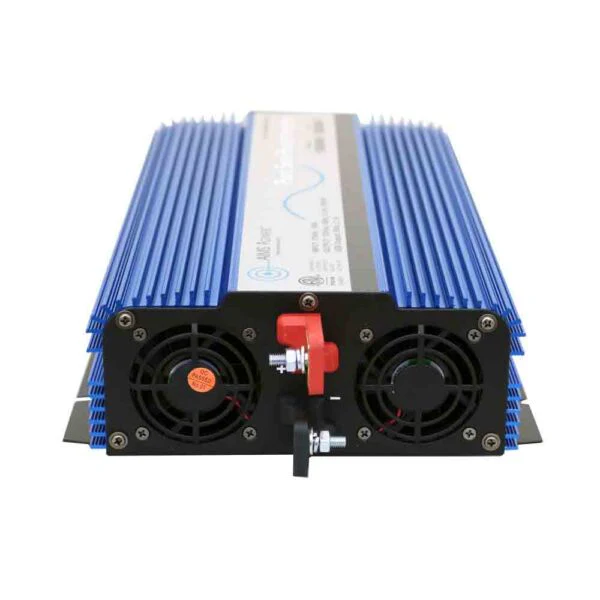

- Dual cooling fans thermally controlled
- AC output short circuit protection
- Instruction manual
- Free 2 year tech support
- 2 Year warranty parts and labor
Product Specifications
Aims Power 1500 Watt Pure Sine Power Inverter Kit Product Specifications
Specifications:
- Continuous output power: 1000 Watts
- Surge power capability (peak power): 2000 Watts
- ETL Listed to UL 458, CSA 22.2 No 107.1
- DC input / operating voltage: 10 to 15 Volts
- Output voltage: 120 Volts AC +/- 10%
- Output wave form: pure sine wave
- Output frequency: 60 Hz
- Battery low voltage alarm: 10.6 +/- 0.5 Volts
- Battery low voltage shutdown: 10.0 +/- 0.5 Volts
- Low battery voltage warning/shutdown
- No load power consumption: < .4 dc amps
- DC amps – 83 · AC amps – 8
- Full load efficiency: 90%
- 1/3 load efficiency: 95%
- No load minimum operating temperature: 32 degrees F
- Full load maximum operating temperature: 104 degrees F
- AC Output Socket Type: dual Type 2 -3 prong
- USB Output: 5Vdc, max 1A
- High input voltage protection: 15V
- Low input voltage shutdown: 10V
- Internal blade fuse protection
- Unit Weight: 5.3 lbs.
- Unit Size L x W x H: 11.53 x 5.51 x 2.91 inches
- Shipping Weight: 7 lbs.
- Shipping L x W x H: 18 x 12 x 6 inches
Product Manual
N/A
Product WarrantyÂ
AIMS Power offers a one year warranty with all products. Follow the link below to register your product warranty:
https://www.aimscorp.net/product_registration.php
