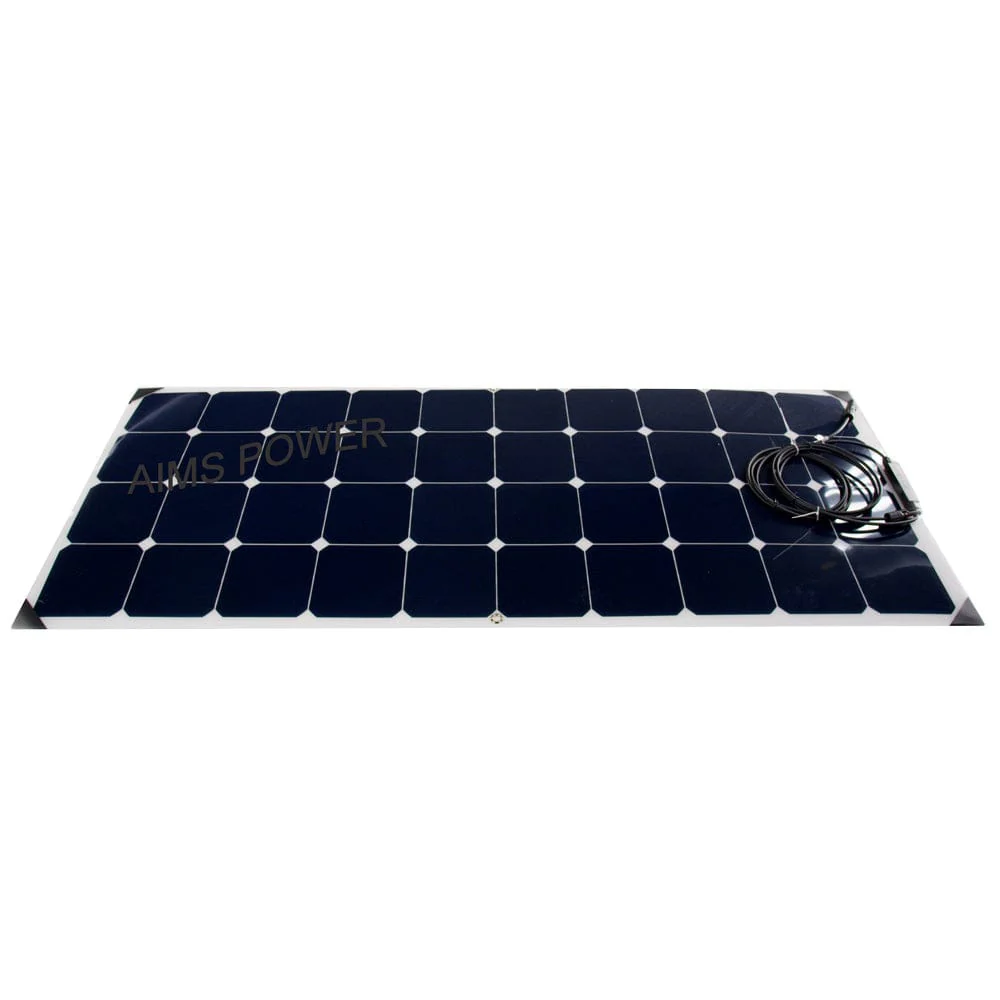

Aims Power 130 Watt Flexible Slim Solar Panel

Aims Power 130 Watt Flexible Slim Solar Panel

Description:

Introducing the AIMS Power flexible, bendable, thin solar panel. This rugged, easy to install panel works with any application. Built for uneven and curved surfaces. No custom mounting needed. This versatile panel can be used in non-permanent or permanent applications. Easily slides into tight spaces for storage. Primarily used to charge batteries for back up power systems. Whether you want some extra power on your golf cart or a weekend camping trip, these panels will get the job done without the hassle of complicated mounting systems. Make sure to view our complete kits.



Youtube installation video click below

AIMS Power 120 Watt Flexible Solar Panel - PV120SLIM

Product Specifications

Aims Power 130 Watt Flexible Slim Solar Panel

Features:

• Constructed with high quality material and advanced monocrystalline solar cells for efficient energy harvest
• Extremely durable and rugged
• Ideal for curved and uneven surfaces. RVs, boats, bus, vans, utilities, golf carts, sewn to heavy duty material such as sun shades
• Up to 90⁰ degree bend (more degree of bend with the 130 watt model vs. 60 watt, smaller panels have less bend)
• Weather resistant. Appropriate for outdoor use.
• Thickness compares to the thickness of a nickel
• Pre drilled grommet holes aids in various installation methods such as zip ties, Velcro, straps for non-permanent applications
• Includes mounting kit for RVs and boats. Self tap screws and waterproof seals included.
• Lightweight and super thin allowing use of a strong adhesive or industrial thread for permanent mounting applications
• Bypass diode minimizes the power drop when shaded
• Modules are independently tested to ensure conformance with certification and regulatory standards
• Manufacturing facility certified to ISO 9001 quality management system standards
• Panels capable of +/- 3% power efficiency than rated
• 5 year warranty, 10 year 80% output
• Junction Box: IP 67 rated
• Number of cells: 4 x 10
• PV Wire: 10 AWG with MC 4 male and female connectors 76" length
• Fire Safety Class: Class A

Specifications:

SPECIFICATIONS	60 Watt	130 Watt
High performance: light transmittance	Up to 93%
Cell Efficiency:	22.3% (one of the highest)
Module Efficiency:	19.5% (one of the highest)
Maximum Power:	60 Watt	130 Watt
Tolerance Wattage:	+/- 5%
Maximum System Voltage:	600V DC (UL)
Optimum Operating Voltage (Vmp):	17.5V	22V
Optimum Operating Current (Imp):	3.4 A	5.91A
Open-Circuit Voltage (Voc):	21V	26.4
Short-Circuit Current (Isc):	3.8A	6.35
Power Tolerance: 0=+5W	5W +/-
Temperature Coefficients ⁰C:
Power:	­­0.38% / °C
Current:	2.2mA  / °C
Voltage):	­60.8V / °C
Temperature Range	-40⁰F to 185⁰F
Dimensions: inches	28 1/2x21x0.12	51 7/8x21 3/8x0.12
Weight:	1.98 lb	4.96 lb
Certifications:	CE, ETL, TUV and RoHS

Product Manual

N/A

Product Warranty

AIMS Power offers a one year warranty with all products. Follow the link below to register your product warranty:

https://www.aimscorp.net/product_registration.php

Product FAQs

AIMS Power FAQs
